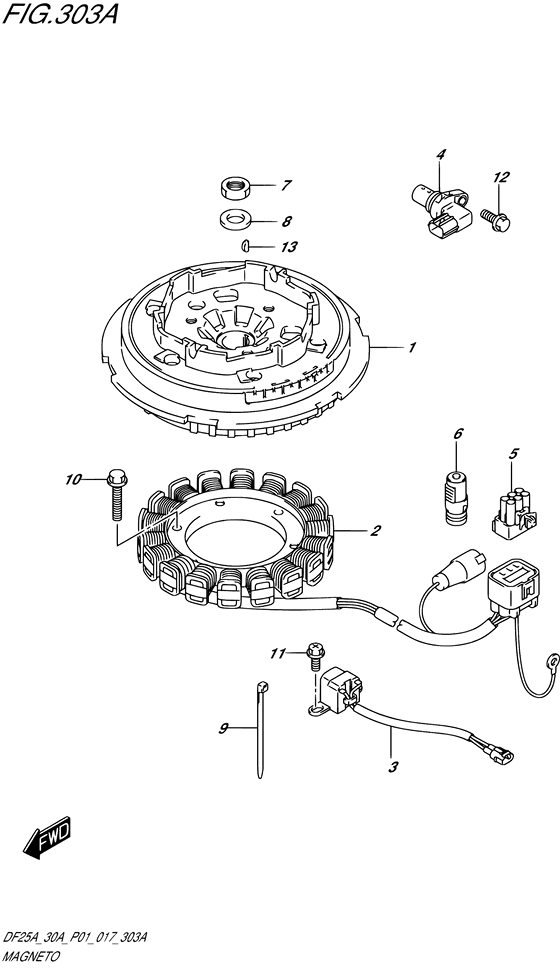

Magneto ((MANUAL STARTER) (DF25A P01)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32102-94L00-000 FLYWHEEL,MAGNETO |
32102-94L00-000 |
US $362.48 |
||
|
2
|
2
32120-94L00-000 COIL,STATOR |
32120-94L00-000 |
US $283.36 |
||
|
3
|
3
32160-94L00-000 COIL,IGN TIMING |
32160-94L00-000 |
from US $94.21 |
||
|
4
|
4
33220-50M00-000 SENSOR ASSY,POSITION |
33220-50M00-000 |
from US $95.65 |
||
|
5
|
5
36690-94L00-000 CONNECTOR ASSY,DUMMY |
36690-94L00-000 |
US $7.88 |
||
|
6
|
6
36690-94L10-000 CONNECTOR ASSY,DUMMY |
36690-94L10-000 |
US $8.68 |
||
|
7
|
7
09140-14008-000 NUT |
09140-14008-000 |
from US $1.68 |
||
|
8
|
8
09160-15057-000 WASHER(15X27X4) |
09160-15057-000 |
US $11 |
||
|
9
|
9
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
10
|
10
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
11
|
11
01550-0512C-000 BOLT,CHOKE SHAFT(KEROSENE) |
01550-0512C-000 |
US $11.40 |
||
|
12
|
12
01550-0616C-000 Bolt |
01550-0616C-000 |
US $0.77 |
||
|
13
|
13
08341-31039-000 KEY |
08341-31039-000 |
from US $1.60 |
