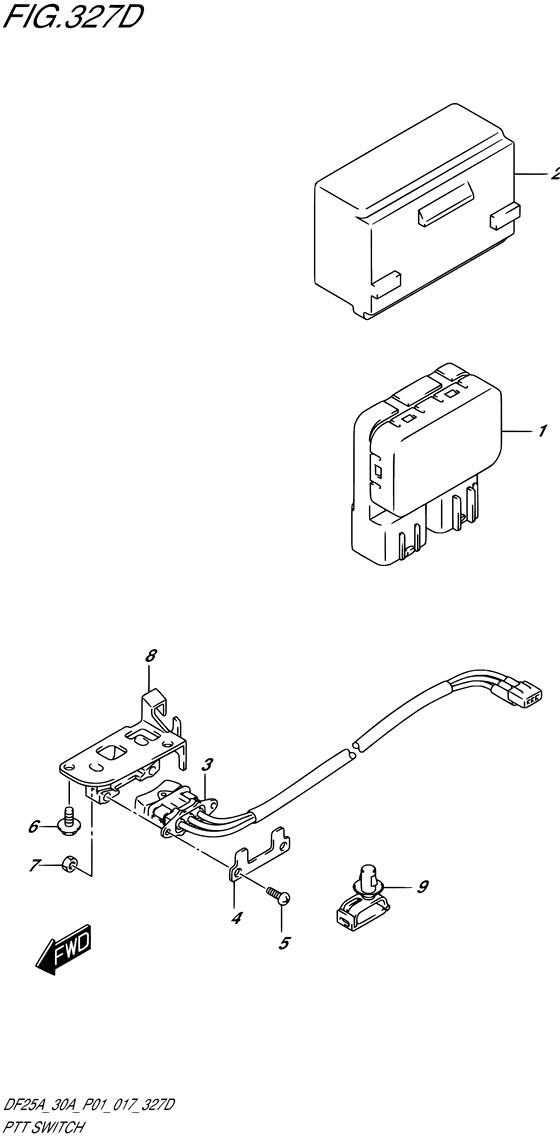

Ptt switch ((DF30ATH P01)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38410-93J20-000
RELAY ASSY,PTT
|
38410-93J20-000 |
— | ||
| replacement | |||||
|
1
|
1
38410-93J21-000 RELAY ASSY,PTT |
38410-93J21-000 |
from US $101.05 |
||
|
2
|
2
38415-94L00-000 HOLDER,PTT RELAY |
38415-94L00-000 |
US $12.44 |
||
|
3
|
3
37850-94L01-000 SWITCH ASSY,PT |
37850-94L01-000 |
US $62.93 |
||
|
4
|
4
37852-94JA0-000 PLATE,PTT SW |
37852-94JA0-000 |
US $6.44 |
||
|
5
|
5
09125-05046-000 SCREW(5X12)Screw (5x12) |
09125-05046-000 |
from US $0.96 |
||
|
6
|
6
29103-93J00-000 BOLTBolt, ptt cable clip bracket (6x12) |
29103-93J00-000 |
US $1.44 |
||
|
7
|
7
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
8
|
8
37851-89L00-000 HOLDER,PT SW |
37851-89L00-000 |
US $18.58 |
||
|
9
|
9
09403-07340-000 CLAMP |
09403-07340-000 |
from US $6.14 |
||
