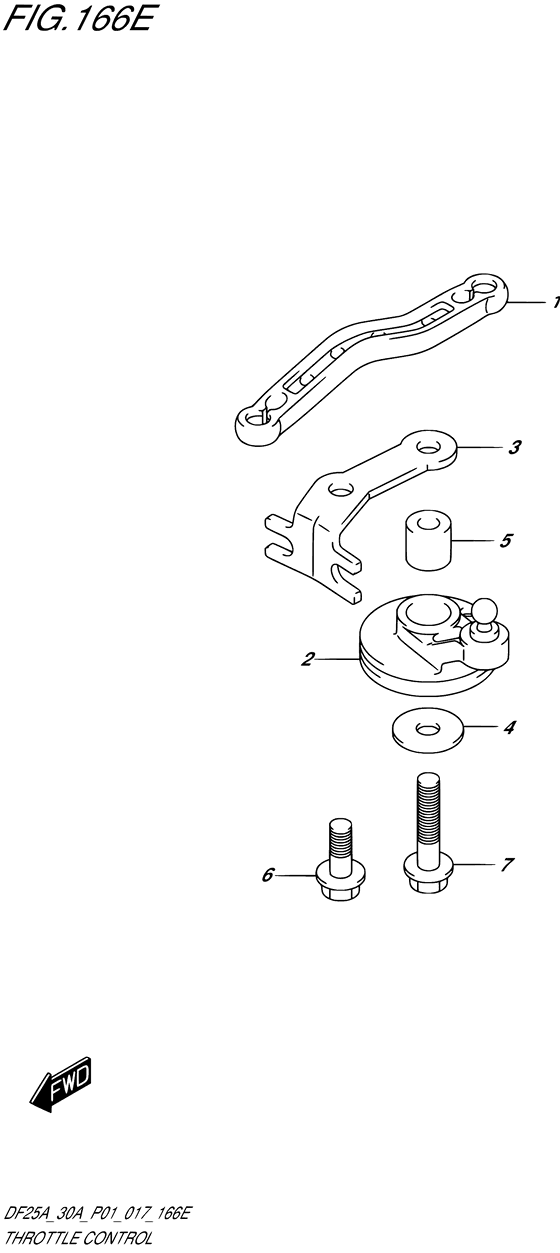

Throttle control ((DF30A P40)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19137-94L00-000 ROD,THROTTLE NO.2 |
19137-94L00-000 |
US $4.64 |
||
|
2
|
2
19140-94L11-000 DRUM COMP,THROTTLE CONTROL |
19140-94L11-000 |
US $12.88 |
||
|
3
|
3
19184-94L00-000 HOLDER,THROTTLE CABLE |
19184-94L00-000 |
US $6.84 |
||
|
4
|
4
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.22 |
||
|
5
|
5
09180-06230-000 SPACER(6.2X12.6X12.5)Spacer, throttle lever |
09180-06230-000 |
from US $1.98 |
||
|
6
|
6
01550-0616C-000 Bolt |
01550-0616C-000 |
US $0.77 |
||
|
7
|
7
01550-0630C-000 Bolt |
01550-0630C-000 |
from US $3.54 |
