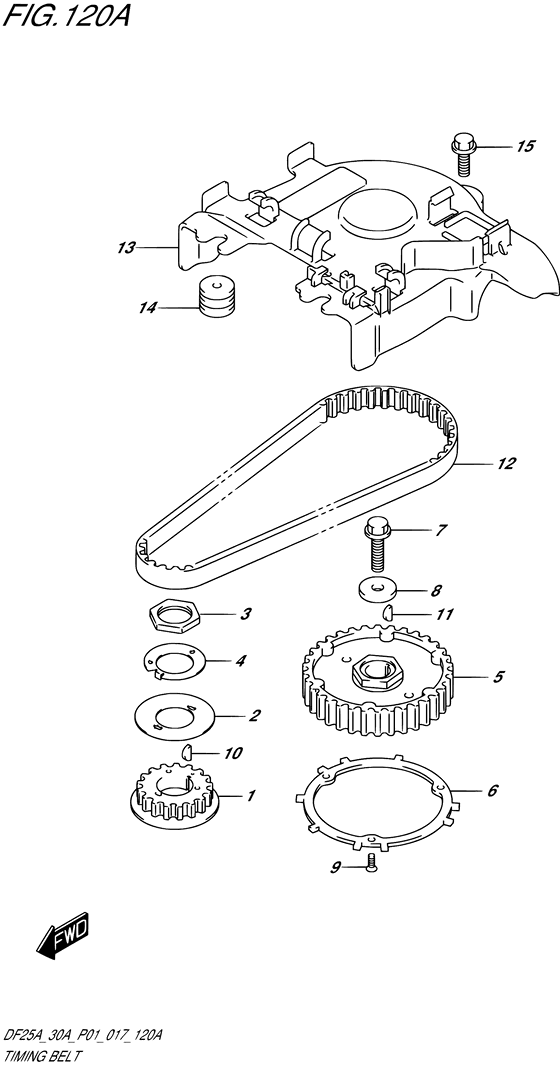

Timing belt Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12631-94L00-000 PULLEY,CRANKSHAFT |
12631-94L00-000 |
US $43.20 |
||
|
2
|
2
12635-89L00-000 GUIDE,TIMING BELT |
12635-89L00-000 |
US $4.32 |
||
|
3
|
3
12637-89L00-000 NUT,TIMING PULLEY |
12637-89L00-000 |
US $11.20 |
||
|
4
|
4
12638-89L00-000 WASHER,PULLEY NUT LOCK |
12638-89L00-000 |
from US $4 |
||
|
5
|
5
12741-94L00-000 PULLEY,CAMSHAFT |
12741-94L00-000 |
US $52.26 |
||
|
6
|
6
12744-94L00-000 PLATE,SENSING |
12744-94L00-000 |
US $9.02 |
||
|
7
|
7
09103-08458-000 BOLT(8X30) |
09103-08458-000 |
from US $6.89 |
||
|
8
|
8
09160-09020-000 WASHER(9X26X4) |
09160-09020-000 |
from US $3.41 |
||
|
9
|
9
02122-04127-000 SCREW |
02122-04127-000 |
from US $0.80 |
||
|
10
|
10
08341-31039-000 KEY |
08341-31039-000 |
from US $1.60 |
||
|
11
|
11
08341-31039-000 KEY |
08341-31039-000 |
from US $1.60 |
||
|
12
|
12
12761-94L00-000
BELT,TIMING
|
12761-94L00-000 |
— | ||
| replacement | |||||
|
12
|
12
12761-94L10-000 Belt,timing |
12761-94L10-000 |
from US $34.20 |
||
|
13
|
13
12764-94L00-000 COVER,TIMING BELT |
12764-94L00-000 |
US $11.70 |
||
|
14
|
14
09320-05019-000 CUSHION |
09320-05019-000 |
from US $4.33 |
||
|
15
|
15
01550-0620C-000 BOLT |
01550-0620C-000 |
from US $0.99 |
||
