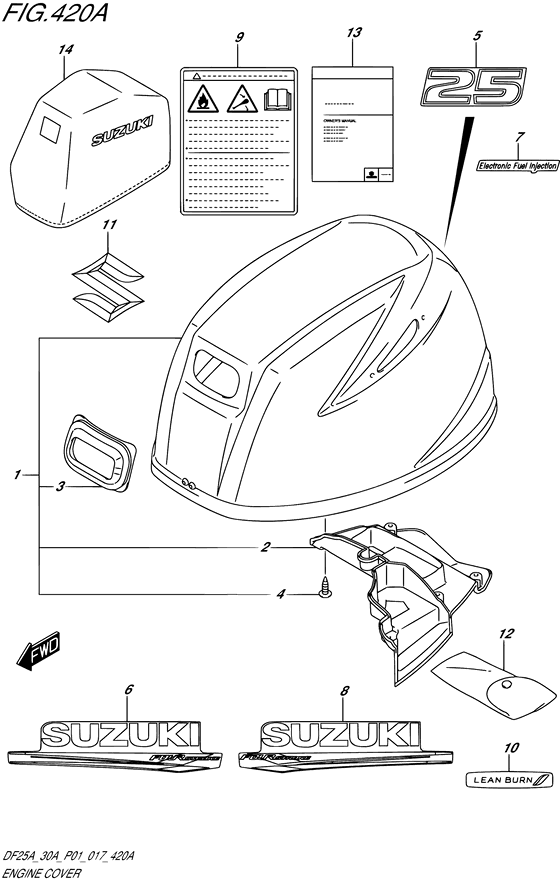

Engine cover ((DF25A P01)) Diagram Suzuki DF30A S/L; RS/L; TS/L; THS/L; QHL
- Year
- 2017
- Model
- DF30A
- Year
- 2017
- Engine
- 03003F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- General Export No.1 (P01/P40)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-94L00-YAY COVER ASSY,ENGINE |
61400-94L00-YAY |
US $527.44 |
||
|
2
|
2
61433-94L00-000 COVER,AIR INTAKE INNER |
61433-94L00-000 |
US $28.13 |
||
|
3
|
3
61622-90L00-000 SEAL,RECOIL STARTER |
61622-90L00-000 |
US $6.08 |
||
|
4
|
4
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
5
|
5
61435-94L20-000
MARK,EMBLEM REAR(25)
|
61435-94L20-000 |
— | ||
| replacement | |||||
|
5
|
5
61435-94L20-YAY MARK,EMBLEM REAR(25) |
61435-94L20-YAY |
US $2.36 |
||
|
6
|
6
61443-94L10-000 STRIPE,ENGINE COVER STBD |
61443-94L10-000 |
US $12.32 |
||
|
7
|
7
61446-89L10-000 DECAL,EFI |
61446-89L10-000 |
US $3.81 |
||
|
8
|
8
61453-94L10-000
STRIPE,ENGINE COVER PORT
|
61453-94L10-000 |
— | ||
| replacement | |||||
|
8
|
8
61453-94L10-YAY STRIPE,ENGINE COVER PORT |
61453-94L10-YAY |
US $12.32 |
||
|
9
|
9
61458-89L30-000
LABEL,ENGINE COVER
|
61458-89L30-000 |
— | ||
|
10
|
10
61471-89L00-000 DECAL,LEAN BURN |
61471-89L00-000 |
US $6.24 |
||
|
11
|
11
77811-58J10-0PG EMBLEM,MARK S |
77811-58J10-0PG |
from US $8.21 |
||
|
12
|
12
59800-94L00-000
TOOL ASSY
|
59800-94L00-000 |
— | ||
| replacement | |||||
|
12
|
12
59800-94L10-000 TOOL ASSY |
59800-94L10-000 |
US $29.44 |
||
|
13
|
13
99011-94L20-055 MANUAL,OWNER'S |
99011-94L20-055 |
US $15.46 |
||
|
14
|
14
68110-88L00-000
COVER,WEATHER
OPT |
68110-88L00-000 |
— | ||
| replacements | |||||
|
14
|
14
68110-88L01-000
COVER,WEATHER
OPT |
68110-88L01-000 |
— | ||
|
14
|
14
99000-81710-000 Cover Comp,weatherOPT |
99000-81710-000 |
US $235.20 |
||
