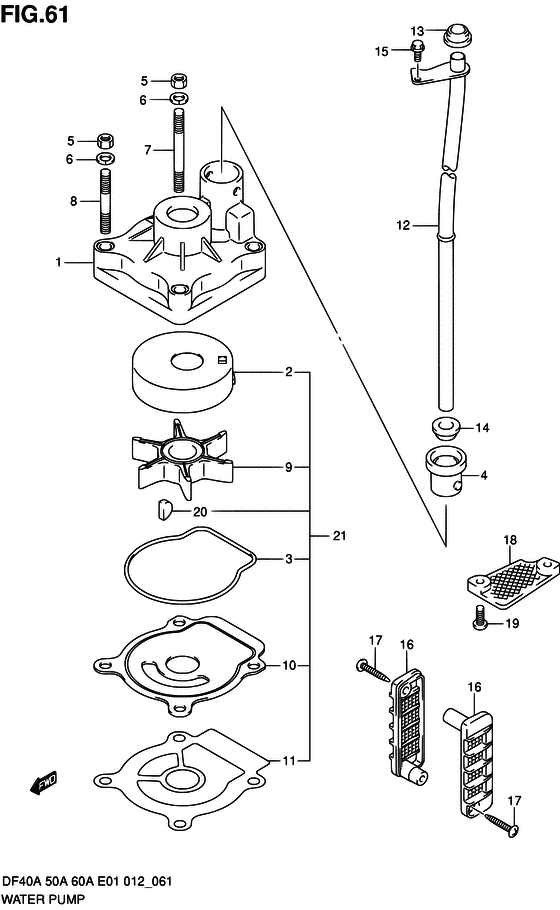

Water pump ((DF60ATH E40)) Diagram Suzuki DF40A QHL; TS/L
- Year
- 2012
- Model
- DF40A
- Year
- 2012
- Engine
- 04003F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 40
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-88L00-000 CASE,WATER PUMP |
17410-88L00-000 |
from US $32 |
||
|
2
|
2
17413-95J10-000 SLEEVE,WATER PUMP CASE |
17413-95J10-000 |
US $56.30 |
||
|
3
|
3
17416-95J00-000 SEALING,WATER PUMP CASE |
17416-95J00-000 |
US $5.60 |
||
|
4
|
4
17564-88L00-000
BUSH,WATER PUMP CASE
|
17564-88L00-000 |
— | ||
| replacement | |||||
|
4
|
4
17564-88L01-000 Bush,water Pump Case |
17564-88L01-000 |
US $2.88 |
||
|
5
|
5
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.60 |
||
|
6
|
6
29162-93J00-000 WASHER |
29162-93J00-000 |
US $1.60 |
||
|
7
|
7
09108-06143-000 BOLT,STUD |
09108-06143-000 |
from US $2.43 |
||
|
8
|
8
09108-06144-000 BOLT,STUD |
09108-06144-000 |
from US $2.03 |
||
|
9
|
9
17461-96312-000 IMPELLER,WATER PUMP |
17461-96312-000 |
from US $35.35 |
||
|
10
|
10
17471-95J10-000
PANEL,PUMP CASE UNDER
|
17471-95J10-000 |
— | ||
|
11
|
11
17472-96303-000
GASKET,PUMP CASE UNDER
|
17472-96303-000 |
— | ||
| replacement | |||||
|
11
|
11
17472-96304-000 Gasket,pump Case Under |
17472-96304-000 |
from US $2.54 |
||
|
12
|
12
17560-88L10-000 TUBE,WATER(L)W/TRANSOM(L) |
17560-88L10-000 |
US $40.48 |
||
|
12
|
12
17560-88L20-000 TUBE,WATER(X)W/TRANSOM(X) |
17560-88L20-000 |
US $58.51 |
||
|
13
|
13
17562-87L00-000
BUSH,WATER TUBE,UPPER
|
17562-87L00-000 |
— | ||
| replacement | |||||
|
13
|
13
17562-87L01-000 Grommet,water Tube Upper |
17562-87L01-000 |
US $2.56 |
||
|
14
|
14
17562-87L00-000
BUSH,WATER TUBE,UPPER
W/TRANSOM(L) W/TRANSOM(X) |
17562-87L00-000 |
— | ||
| replacement | |||||
|
14
|
14
17562-87L01-000 Grommet,water Tube UpperW/TRANSOM(L) W/TRANSOM(X) |
17562-87L01-000 |
US $2.56 |
||
|
15
|
15
09116-06094-000 BOLT(6X15) |
09116-06094-000 |
US $0.81 |
||
|
16
|
16
17631-96320-000 FILTER,WATER |
17631-96320-000 |
US $5.02 |
||
|
17
|
17
03142-04309-000 SCREW |
03142-04309-000 |
from US $3.69 |
||
|
18
|
18
17635-87E00-000 FILTER,WATER SUB |
17635-87E00-000 |
US $2.90 |
||
|
18
|
18
17635-87E10-000 PLATE,GEAR CASEPlate, gear case OPT |
17635-87E10-000 |
US $78.38 |
||
|
19
|
19
09125-05046-000 SCREW(5X12)Screw (5x12) |
09125-05046-000 |
from US $0.96 |
||
|
20
|
20
09420-04006-000 KEYKey, impeller |
09420-04006-000 |
US $6.88 |
||
|
21
|
21
17400-88L00-000
KIT,WATER PUMP REPAIR
OPT |
17400-88L00-000 |
— | ||
| replacement | |||||
|
21
|
21
17400-88L01-000 Kit,water Pump RepairOPT |
17400-88L01-000 |
from US $64.49 |
||
