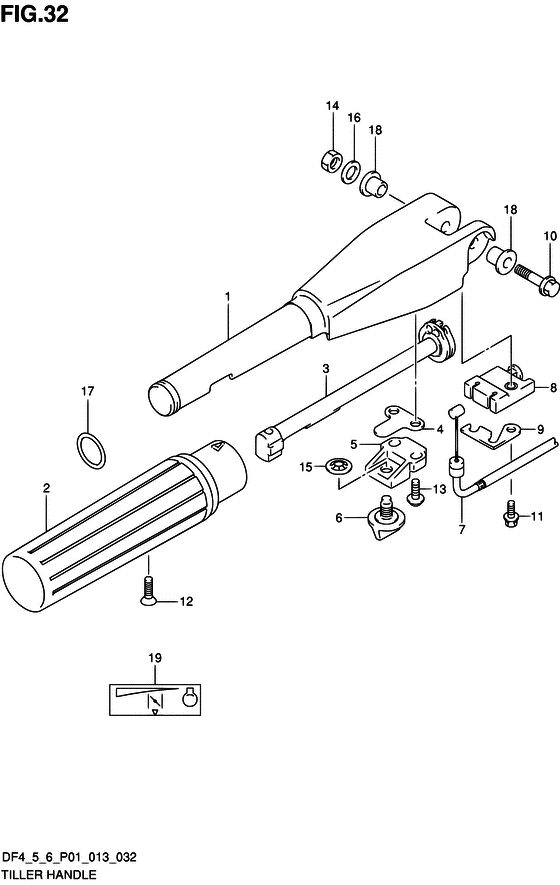

Tiller handle Diagram Suzuki DF5 S/L
- Year
- 2013
- Model
- DF5
- Year
- 2013
- Engine
- 00502F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 5
- Sales region
- U.S.A. (P03)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-91J21-0EP
Handle,tiller(black)
|
63111-91J21-0EP |
— | ||
| replacement | |||||
|
1
|
1
63111-91J30-0EP HANDLE,TILLER |
63111-91J30-0EP |
US $124.64 |
||
|
2
|
2
63210-93E30-000 GRIP,HANDLEGrip, handle |
63210-93E30-000 |
US $21.56 |
||
|
3
|
3
63221-91J10-000 ROD,HANDLE |
63221-91J10-000 |
US $33.60 |
||
|
4
|
4
63225-98601-000 PLATE,THROTTLE ADJPlate, handle |
63225-98601-000 |
US $2.08 |
||
|
5
|
5
63241-98601-000
Support, rod
|
63241-98601-000 |
— | ||
| replacement | |||||
|
5
|
5
63241-986B0-000 SUPPORT,HANDLE ROD |
63241-986B0-000 |
US $3.36 |
||
|
6
|
6
63244-986A0-000 KNOB,THROTTLE ADJKnob, throttle adjust |
63244-986A0-000 |
US $3.39 |
||
|
7
|
7
63610-91J20-000 Cable assy,throttle |
63610-91J20-000 |
US $25.09 |
||
|
8
|
8
63620-91J10-000 STOPPER,THROTTLE CABLE |
63620-91J10-000 |
US $22.40 |
||
|
9
|
9
63628-91J10-000 PLATE,THROTTLE CABLE STOPPER |
63628-91J10-000 |
US $2.80 |
||
|
10
|
10
09116-08156-000 BOLT(8X50) |
09116-08156-000 |
US $31.60 |
||
|
11
|
11
09118-06123-000 BOLT(6X25) |
09118-06123-000 |
US $20.60 |
||
|
12
|
12
09126-06015-000 SCREW(6X23) |
09126-06015-000 |
US $4.13 |
||
|
13
|
13
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
14
|
14
09140-08023-XC0 NUT |
09140-08023-XC0 |
from US $1.93 |
||
|
15
|
15
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
16
|
16
09160-08082-000 WASHER(8.5X16X1.2) |
09160-08082-000 |
from US $1.08 |
||
|
17
|
17
09280-20004-000 O RING(D:2.4,ID:19.8)O ring (d:2.4 id:19.8) |
09280-20004-000 |
from US $0.91 |
||
|
18
|
18
09306-08016-000 BUSH |
09306-08016-000 |
from US $4.28 |
||
|
19
|
19
69714-91J20-000 MARK,ENGINE START |
69714-91J20-000 |
US $1.55 |
||
