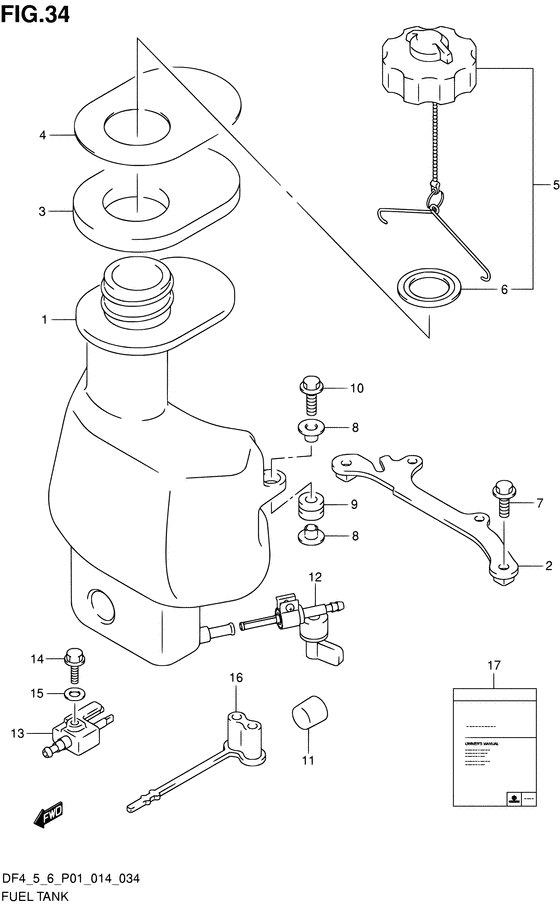

Fuel tank ((DF5 P01)) Diagram Suzuki DF5 S/L
- Year
- 2014
- Model
- DF5
- Year
- 2014
- Engine
- 00502F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 5
- Sales region
- U.S.A. (P03)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65110-91J50-000
TANK,FUEL
|
65110-91J50-000 |
— | ||
| replacement | |||||
|
1
|
1
65110-91J40-000 TANK,FUEL |
65110-91J40-000 |
US $99.20 |
||
|
2
|
2
65260-91J00-000 BRACKET,FUEL TANK |
65260-91J00-000 |
US $24 |
||
|
3
|
3
65281-91J11-000
GROMMET,FUEL TANK
|
65281-91J11-000 |
— | ||
| replacement | |||||
|
3
|
3
65281-91J12-000 Grommet,fuel Tank |
65281-91J12-000 |
US $11.20 |
||
|
4
|
4
65284-91JL0-000 RUBBER,FUEL TANK GROMMET |
65284-91JL0-000 |
US $5.76 |
||
|
5
|
5
65510-91JL2-000
Cap assy,fuel tank
|
65510-91JL2-000 |
— | ||
| replacement | |||||
|
5
|
5
65510-97L20-000 Cap Assy,Fuel Tank |
65510-97L20-000 |
US $38.40 |
||
|
6
|
6
09168-32001-000
GASKET(32X48X2.5)
|
09168-32001-000 |
— | ||
| replacement | |||||
|
6
|
6
09168-32003-000 Gasket(32X48X2.5) |
09168-32003-000 |
from US $3.25 |
||
|
7
|
7
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
8
|
8
09169-06088-000 WASHER |
09169-06088-000 |
US $1.68 |
||
|
9
|
9
09320-09039-000
CUSHION
|
09320-09039-000 |
— | ||
| replacement | |||||
|
9
|
9
09320-09059-000 Cushion,silencer Cover |
09320-09059-000 |
from US $1.67 |
||
|
10
|
10
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
11
|
11
61151-91J20-000 CUSHION |
61151-91J20-000 |
US $3.75 |
||
|
12
|
12
66100-91JL0-000 COCK ASSY,FUEL |
66100-91JL0-000 |
US $17.96 |
||
|
13
|
13
65720-986L0-000 PLUG,FUEL CONNECTOR |
65720-986L0-000 |
US $56 |
||
|
14
|
14
09103-06237-000 BOLT(6X12.5)Bolt, fuel connector plug |
09103-06237-000 |
from US $0.91 |
||
|
15
|
15
09160-06085-000 WASHER(6.5X15X1)Washer (6.5x15x1.0) |
09160-06085-000 |
from US $0.91 |
||
|
16
|
16
65727-91JL0-000 CAP,FUEL CONNECTOR PLUG |
65727-91JL0-000 |
US $3.65 |
||
|
17
|
17
99011-91J40-055 MANUAL,OWNER'S |
99011-91J40-055 |
US $15.46 |
||
