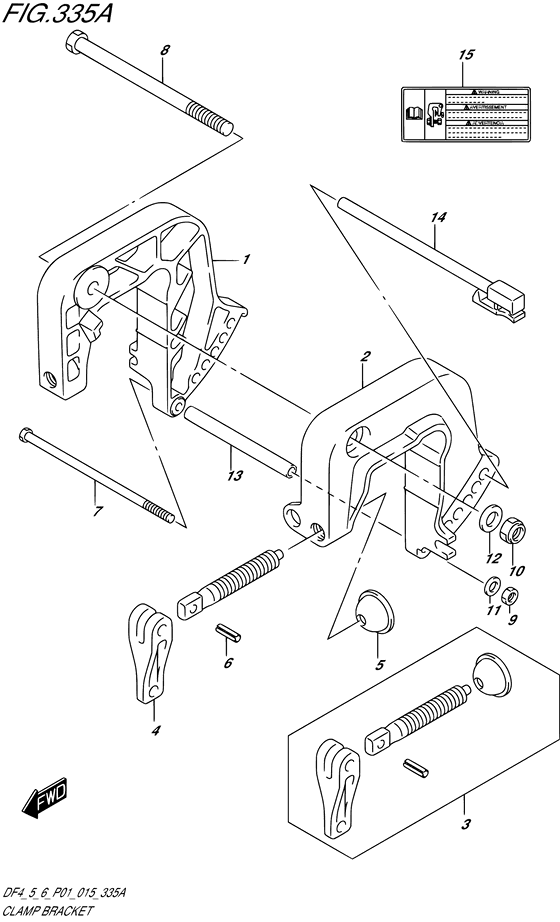

Clamp bracket Diagram Suzuki DF5 S/L
- Year
- 2015
- Model
- DF5
- Year
- 2015
- Engine
- 00502F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-91J20-0EP BRACKET,CLAMP STBD |
41111-91J20-0EP |
US $105.98 |
||
|
2
|
2
41121-91J20-0EP BRACKET,CLAMP PORT |
41121-91J20-0EP |
US $140.61 |
||
|
3
|
3
41210-986L1-000 SCREW ASSY,CLAMPOPT |
41210-986L1-000 |
US $47.20 |
||
|
4
|
4
41212-91J00-000 HANDLE,CLAMP |
41212-91J00-000 |
US $10.34 |
||
|
5
|
5
41213-94J01-000 PLATE,CLAMP |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
09205-06021-000 PIN,SPRING(6X25) |
09205-06021-000 |
from US $2.61 |
||
|
7
|
7
09100-06177-000 BOLT(6X140) |
09100-06177-000 |
US $4.46 |
||
|
8
|
8
09100-10321-000 BOLT(10X150) |
09100-10321-000 |
US $108.20 |
||
|
9
|
9
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.60 |
||
|
10
|
10
09159-10050-000 NUT |
09159-10050-000 |
US $5.63 |
||
|
11
|
11
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
12
|
12
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
13
|
13
09180-06357-000 SPACER(6.5X10.5X104) |
09180-06357-000 |
US $142.40 |
||
|
14
|
14
45420-92DL0-000 PIN,TILT LOCK |
45420-92DL0-000 |
US $28.13 |
||
|
15
|
15
69911-91J40-000 MARK,CLAMP BRACKET |
69911-91J40-000 |
US $2.43 |
