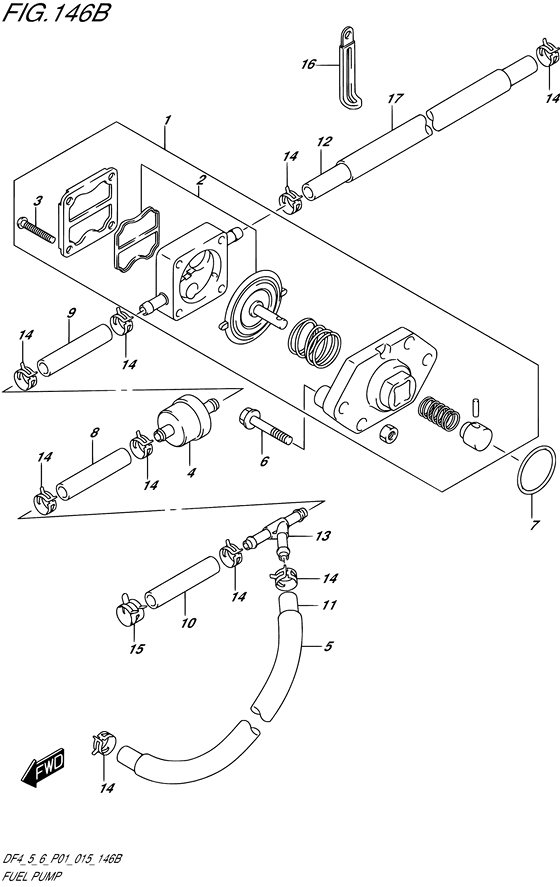

Fuel Pump ((DF5 P01)) Diagram Suzuki DF5 S/L
- Year
- 2015
- Model
- DF5
- Year
- 2015
- Engine
- 00502F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-91J02-000
PUMP ASSY,FUEL
|
15100-91J02-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-91J03-000 Pump Assy,fuel |
15100-91J03-000 |
US $105.62 |
||
|
2
|
2
15170-91J01-000
DIAPHRAGM SET
|
15170-91J01-000 |
— | ||
| replacement | |||||
|
2
|
2
15170-91J02-000 Diaphragm Set |
15170-91J02-000 |
US $35.73 |
||
|
3
|
3
15251-91J00-000 SCREW |
15251-91J00-000 |
US $1.91 |
||
|
4
|
4
15410-98500-000 FILTER,FUELFilter assy, fuel |
15410-98500-000 |
from US $17.49 |
||
|
5
|
5
18498-99J00-000
PROTECTOR,FUEL HOSE(100)
|
18498-99J00-000 |
— | ||
| replacement | |||||
|
5
|
5
18498-99J01-000 Protector,fuel Hose(100) |
18498-99J01-000 |
US $2.47 |
||
|
6
|
6
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
7
|
7
09280-27006-000 O RING(D:2,ID:27.5) |
09280-27006-000 |
US $2.88 |
||
|
8
|
8
09343-50L01-040 HOSE |
09343-50L01-040 |
US $1.91 |
||
|
9
|
9
09343-50L01-040 HOSE |
09343-50L01-040 |
US $1.91 |
||
|
10
|
10
15192-91JL0-000 HOSE,FUEL(CONNECTOR TO ELB) |
15192-91JL0-000 |
US $6.88 |
||
|
11
|
11
15191-91JL0-000 HOSE,FUEL(TANK TO FILTER) |
15191-91JL0-000 |
US $11.78 |
||
|
12
|
12
09343-50L01-300 HOSE |
09343-50L01-300 |
US $9.94 |
||
|
13
|
13
09367-06007-000 3 WAY3 way (pump to carb) |
09367-06007-000 |
from US $1.98 |
||
|
14
|
14
09401-09404-000 CLIP |
09401-09404-000 |
US $1.07 |
||
|
15
|
15
09401-11422-000 CLIP |
09401-11422-000 |
US $1.60 |
||
|
16
|
16
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
16
|
16
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
17
|
17
18498-91J20-000
PROTECTOR,FUEL HOSE
|
18498-91J20-000 |
— | ||
| replacement | |||||
|
17
|
17
18498-91J21-000 Protector,fuel Hose(12X15X130) |
18498-91J21-000 |
US $3.53 |
||
