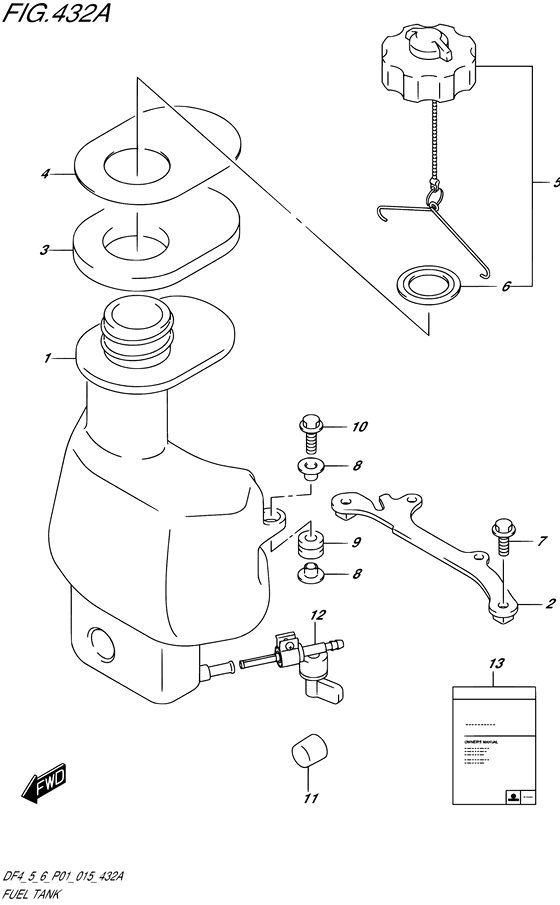

Fuel tank ((DF4 P01)) Diagram Suzuki DF5 S/L
- Year
- 2015
- Model
- DF5
- Year
- 2015
- Engine
- 00502F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65110-91J50-000
TANK,FUEL
|
65110-91J50-000 |
— | ||
| replacement | |||||
|
1
|
1
65110-91J40-000 TANK,FUEL |
65110-91J40-000 |
US $99.20 |
||
|
2
|
2
65260-91J00-000 BRACKET,FUEL TANK |
65260-91J00-000 |
US $24 |
||
|
3
|
3
65281-91J11-000
GROMMET,FUEL TANK
|
65281-91J11-000 |
— | ||
| replacement | |||||
|
3
|
3
65281-91J12-000 Grommet,fuel Tank |
65281-91J12-000 |
US $11.20 |
||
|
4
|
4
65284-91JL0-000 RUBBER,FUEL TANK GROMMET |
65284-91JL0-000 |
US $5.76 |
||
|
5
|
5
65510-91JL2-000
Cap assy,fuel tank
|
65510-91JL2-000 |
— | ||
| replacement | |||||
|
5
|
5
65510-97L20-000 Cap Assy,Fuel Tank |
65510-97L20-000 |
US $38.40 |
||
|
6
|
6
65561-91J00-000
GASKET,TANK CAP
|
65561-91J00-000 |
— | ||
| replacement | |||||
|
6
|
6
65561-91J01-000 GASKET,TANK CAP |
65561-91J01-000 |
US $3.68 |
||
|
7
|
7
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
8
|
8
09169-06088-000 WASHER |
09169-06088-000 |
US $1.68 |
||
|
9
|
9
09320-09039-000
CUSHION
|
09320-09039-000 |
— | ||
| replacement | |||||
|
9
|
9
09320-09059-000 Cushion,silencer Cover |
09320-09059-000 |
from US $1.67 |
||
|
10
|
10
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
11
|
11
61151-91J20-000 CUSHION |
61151-91J20-000 |
US $3.75 |
||
|
12
|
12
66100-91JL0-000 COCK ASSY,FUEL |
66100-91JL0-000 |
US $17.96 |
||
|
13
|
13
99011-91J50-055 MANUAL,OWNER'S |
99011-91J50-055 |
US $12.51 |
||
