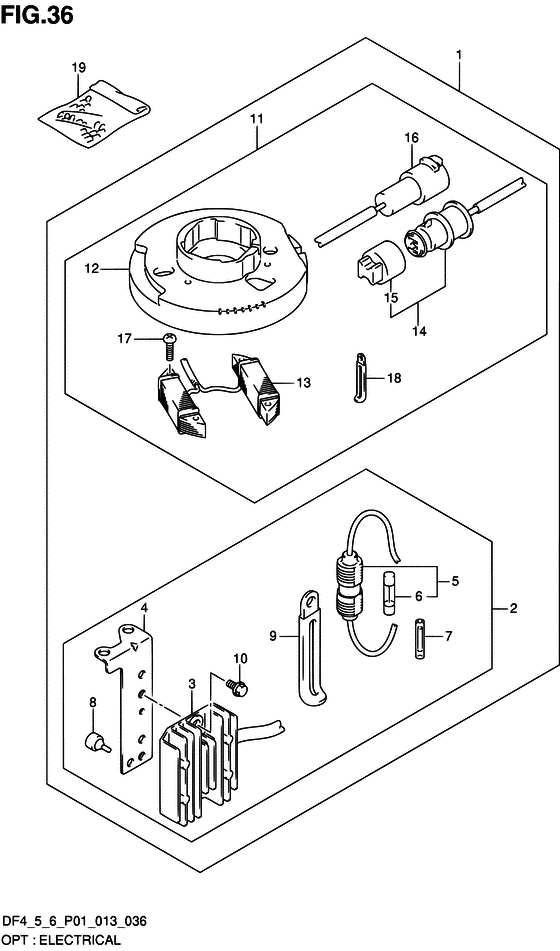

Opt : electrical Diagram Suzuki DF6 S/L
- Year
- 2013
- Model
- DF6
- Year
- 2013
- Engine
- 00602F-310001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
0
|
0
09321-05019-000 CUSHIONCushion, engine cover |
09321-05019-000 |
from US $1.60 |
||
|
0
|
0
09481-20001-000 FUSE(20A) |
09481-20001-000 |
from US $1.28 |
||
|
0
|
0
09404-06435-000 CLAMP(L:135) |
09404-06435-000 |
from US $2.13 |
||
|
0
|
0
32800-94620-000 RECTIFIER & REGULATOR ASSYRect & regulator assy |
32800-94620-000 |
US $171.76 |
||
|
0
|
0
32801-91J00-000
Rectifier set
|
32801-91J00-000 |
— | ||
| replacement | |||||
|
0
|
0
32801-91J01-000 RECTIFIER SET |
32801-91J01-000 |
US $110.77 |
||
|
0
|
0
32102-91J30-000
Flywheel,magneto
|
32102-91J30-000 |
— | ||
| replacement | |||||
|
0
|
0
32102-91J32-000
New Genuine Part
|
32102-91J32-000 |
— | ||
|
0
|
0
32890-91J00-000 BRACKET,RECTIFIER |
32890-91J00-000 |
US $16.49 |
||
|
0
|
0
36634-93910-000 CAP |
36634-93910-000 |
from US $2.58 |
||
|
0
|
0
36740-95253-000 CASE ASSY,FUSE |
36740-95253-000 |
US $13.14 |
||
|
0
|
0
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
|
0
|
0
37132-93700-000 CONNECTOR,WIREConnector, lead wire |
37132-93700-000 |
US $1.62 |
||
|
0
|
0
39601-95D00-000
RECEPTACLE
|
39601-95D00-000 |
— | ||
| replacement | |||||
|
0
|
0
39601-95D01-000 Receptacle |
39601-95D01-000 |
US $35.70 |
||
|
0
|
0
39602-93900-000 PLUG ASSY,LAMP CORDPlug, lighting |
39602-93900-000 |
US $38.27 |
||
|
0
|
0
01550-06167-000 BOLTNOT ILLUSTRATED |
01550-06167-000 |
from US $0.68 |
||
|
0
|
0
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
0
|
0
09404-06207-000 CLAMP(L:65) |
09404-06207-000 |
from US $2.10 |
||
| replacements | |||||
|
0
|
0
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
0
|
0
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
0
|
0
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
0
|
0
09407-14407-000 CLAMP(L:145)Band NOT ILLUSTRATED |
09407-14407-000 |
from US $2.08 |
||
|
0
|
0
12625-91J00-000 BASE,STARTERNOT ILLUSTRATED |
12625-91J00-000 |
US $78.02 |
||
|
0
|
0
32120-91J10-000 COIL,MAGNETO LIGHTING |
32120-91J10-000 |
US $136.16 |
||
|
0
|
0
32000-91J12-000
Kit,battery charging
|
32000-91J12-000 |
— | ||
| replacement | |||||
|
0
|
0
32000-91J14-000 KIT,BATTERY CHARGING |
32000-91J14-000 |
US $1,717.60 |
||
|
0
|
0
36617-91J10-000 BRACKET,HARNESSNOT ILLUSTRATED |
36617-91J10-000 |
US $27.60 |
||
|
0
|
0
39600-91J12-000
Coil set,with receptacle
|
39600-91J12-000 |
— | ||
| replacement | |||||
|
0
|
0
39600-91J14-000 New Genuine Part |
39600-91J14-000 |
US $528 |
||
