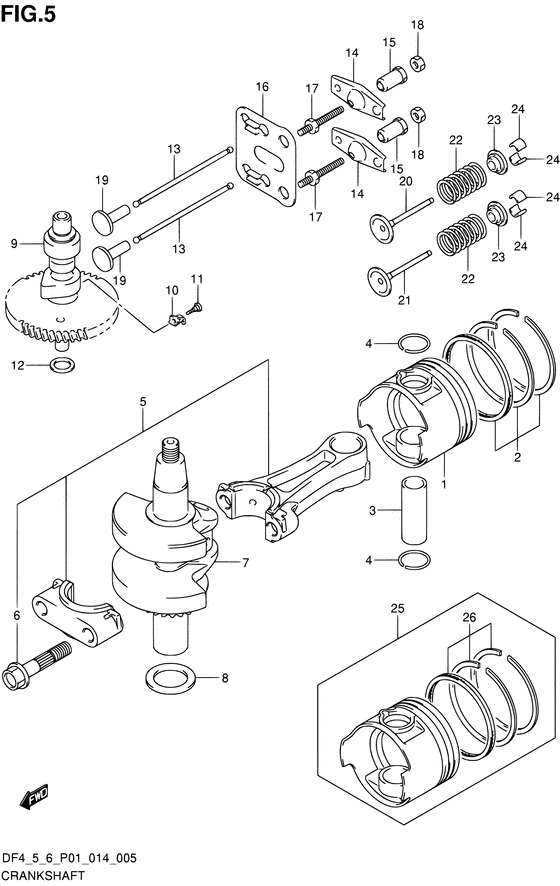

Crankshaft Diagram Suzuki DF6 S/L
- Year
- 2014
- Model
- DF6
- Year
- 2014
- Engine
- 00602F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-91J01-0B0 PISTON |
12111-91J01-0B0 |
US $35.90 |
||
|
2
|
2
12140-91J10-000 RING SET,PISTON |
12140-91J10-000 |
US $46.85 |
||
|
3
|
3
12151-90900-000 PIN,PISTON |
12151-90900-000 |
from US $8.13 |
||
|
4
|
4
09381-18002-000 CIRCLIP |
09381-18002-000 |
from US $0.90 |
||
|
5
|
5
12160-91JL0-0A0 CONNECTING ROD ASSY |
12160-91JL0-0A0 |
US $92.80 |
||
|
6
|
6
12163-91JL0-000 BOLT,CONNECTING ROD |
12163-91JL0-000 |
US $3.28 |
||
|
7
|
7
12200-91JL0-000 CRANKSHAFT ASSY |
12200-91JL0-000 |
US $395.20 |
||
|
8
|
8
08211-25361-000 WASHER |
08211-25361-000 |
from US $5.36 |
||
|
9
|
9
12711-91J20-000 CAMSHAFT |
12711-91J20-000 |
US $119.33 |
||
|
10
|
10
12951-91J00-000
Cam, decompression
|
12951-91J00-000 |
— | ||
| replacement | |||||
|
10
|
10
12951-91J01-000 CAM,DECOMP |
12951-91J01-000 |
US $2.43 |
||
|
11
|
11
09106-02001-000 BOLT(2X9.8) |
09106-02001-000 |
from US $4.37 |
||
|
12
|
12
08211-17251-000 WASHER |
08211-17251-000 |
from US $1.52 |
||
|
13
|
13
12894-91JL0-000 ROD,PUSH |
12894-91JL0-000 |
US $4.96 |
||
|
14
|
14
12961-90900-000 ARM,ROCKER |
12961-90900-000 |
US $2.88 |
||
|
15
|
15
12962-91JL0-000 PIVOT |
12962-91JL0-000 |
US $4.64 |
||
|
16
|
16
12966-91J00-000 GUIDE,PUSH ROD |
12966-91J00-000 |
US $2.39 |
||
|
17
|
17
09108-06126-000 BOLT,STUD |
09108-06126-000 |
US $39 |
||
|
18
|
18
09140-06021-000 NUTNut, pivot lock (m6) |
09140-06021-000 |
from US $0.92 |
||
|
19
|
19
12891-87C00-000 Tappet |
12891-87C00-000 |
from US $8.21 |
||
|
20
|
20
12911-91J01-000
Valve,intake
|
12911-91J01-000 |
— | ||
| replacement | |||||
|
20
|
20
12911-91J02-000 Valve,intake |
12911-91J02-000 |
US $14.29 |
||
|
21
|
21
12915-91J01-000
Valve,exhaust
|
12915-91J01-000 |
— | ||
| replacement | |||||
|
21
|
21
12915-91J02-000 Valve,exhaust |
12915-91J02-000 |
US $20 |
||
|
22
|
22
12921-91J00-000 SPRING,VALVE |
12921-91J00-000 |
US $4.11 |
||
|
23
|
23
12931-78G00-000 RETAINER,VALVE SPRINGRetainer, valve spring |
12931-78G00-000 |
from US $2.88 |
||
|
24
|
24
12932-24400-000 COTTER,VALVE |
12932-24400-000 |
from US $1.13 |
||
|
25
|
25
12100-91J10-050 PISTON SET(OS:0.5)OPT |
12100-91J10-050 |
US $69.17 |
||
|
26
|
26
12140-91J10-050 RING SET,PISTON(OS:0.50)OPT |
12140-91J10-050 |
US $39.52 |
||
