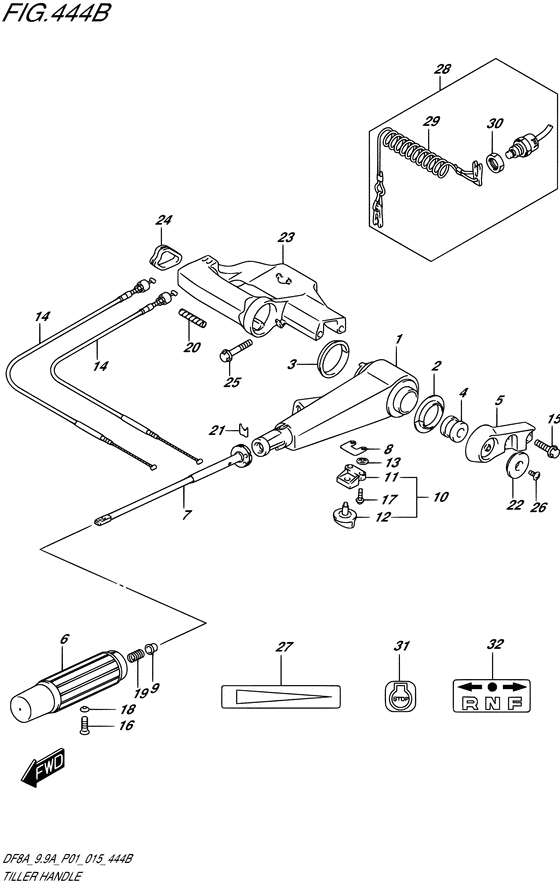

Tiller handle ((DF9.9A P01)) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2014
- Model
- DF8A
- Year
- 2014
- Engine
- 00801F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-89L00-0EP
HANDLE,TILLER
|
63111-89L00-0EP |
— | ||
| replacement | |||||
|
1
|
1
63111-89L01-0EP HANDLE,TILLER |
63111-89L01-0EP |
US $76.91 |
||
|
2
|
2
63115-99J10-000 BUSH,TILLER HANDLE NO.1 |
63115-99J10-000 |
US $2.65 |
||
|
3
|
3
63115-99J00-000 BUSH,TILLER HANDLE NO.2 |
63115-99J00-000 |
US $3.42 |
||
|
4
|
4
63116-99J00-000 RUBBER,TILLER HANDLE FRICTION |
63116-99J00-000 |
US $3.09 |
||
|
5
|
5
63121-99J00-0EP COVER,TILLER HANDLE |
63121-99J00-0EP |
US $34.96 |
||
|
6
|
6
63210-89L10-000
Grip comp,handle
|
63210-89L10-000 |
— | ||
| replacement | |||||
|
6
|
6
63210-89L11-000
GRIP COMP,HANDLE
|
63210-89L11-000 |
— | ||
|
7
|
7
63220-94J00-000 ROD,HANDLE |
63220-94J00-000 |
US $22.82 |
||
|
8
|
8
63225-94J00-000 PLATE,HANDLE ROD ADJUSTER |
63225-94J00-000 |
US $1.93 |
||
|
9
|
9
63225-93200-000 BUSH,HANDLE RODBush, handle rod |
63225-93200-000 |
US $1.95 |
||
|
10
|
10
63240-94J10-000
ADJUSTER SET,HANDLE ROD
|
63240-94J10-000 |
— | ||
| replacement | |||||
|
10
|
10
63240-94J20-000 Adjuster Set,handle Rod |
63240-94J20-000 |
US $7.58 |
||
|
11
|
11
63241-986B0-000 SUPPORT,HANDLE ROD |
63241-986B0-000 |
US $3.36 |
||
|
12
|
12
63244-94J00-000 KNOB,THROTTLE ADJKnob, adjuster |
63244-94J00-000 |
US $4.56 |
||
|
13
|
13
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
14
|
14
63610-99J00-000 Cable assy,throttle |
63610-99J00-000 |
US $8.83 |
||
|
15
|
15
09116-08151-000 BOLT(8X30) |
09116-08151-000 |
US $4.96 |
||
|
16
|
16
09126-06015-000 SCREW(6X23) |
09126-06015-000 |
US $4.13 |
||
|
17
|
17
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
18
|
18
09163-06001-000 WASHER,LOCK |
09163-06001-000 |
from US $2.35 |
||
|
19
|
19
09440-12027-000 SPRING |
09440-12027-000 |
from US $1.62 |
||
|
20
|
20
33833-91J00-000 TUBE,SWITCH LEAD(L:250)L:250->150 |
33833-91J00-000 |
US $4.64 |
||
|
21
|
21
63114-99J01-000 PLATE,WARNING INDICATOR |
63114-99J01-000 |
US $2.32 |
||
|
22
|
22
63122-99J00-000 PROTECTOR,HANDLE COVER |
63122-99J00-000 |
US $2.47 |
||
|
23
|
23
63131-99J11-0EP BRACKET,TILLER HANDLE |
63131-99J11-0EP |
US $78.02 |
||
|
24
|
24
63133-89L00-000 GROMMET,TILLER HANDLE BRACKET |
63133-89L00-000 |
US $3.46 |
||
|
25
|
25
09116-08155-000 BOLT(8X45) |
09116-08155-000 |
US $33.50 |
||
|
26
|
26
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
27
|
27
63215-93110-000 MARK,HANDLE GRIPMark, handle grip |
63215-93110-000 |
from US $1.68 |
||
|
28
|
28
37830-99J10-000
SWITCH,EMERGENCY & STOP
|
37830-99J10-000 |
— | ||
| replacement | |||||
|
28
|
28
37830-99J11-000 SWITCH ASSY,EMERGENCY & STOP |
37830-99J11-000 |
US $45.63 |
||
|
29
|
29
37823-97J00-000 PLATE,LOCK |
37823-97J00-000 |
US $22.40 |
||
|
30
|
30
37826-97J00-000
NUT
|
37826-97J00-000 |
— | ||
| replacement | |||||
|
30
|
30
37826-97J01-000 NUT,EMERGENCY SWITCH |
37826-97J01-000 |
US $1.51 |
||
|
31
|
31
37835-95D00-000
LABEL,STOP
|
37835-95D00-000 |
— | ||
| replacement | |||||
|
31
|
31
37835-91J00-YAY LABEL,STOP |
37835-91J00-YAY |
US $1.49 |
||
|
32
|
32
21131-94J00-000
MARK,CLUTCH SHIFT
|
21131-94J00-000 |
— | ||
| replacement | |||||
|
32
|
32
21131-94J00-YAY MARK,CLUTCH SHIFT |
21131-94J00-YAY |
US $1.60 |
||
