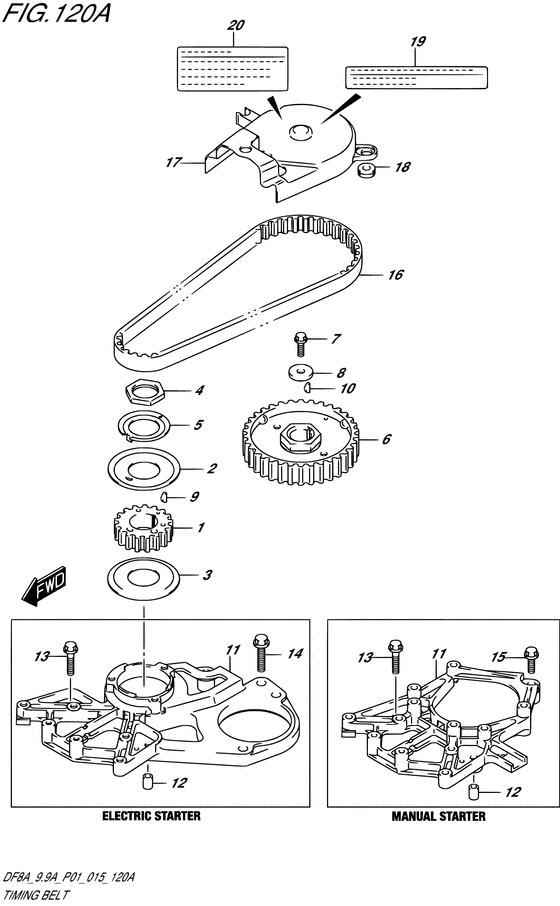

Timing belt ((DF8A P01)) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2014
- Model
- DF8A
- Year
- 2014
- Engine
- 00801F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12631-99JM0-000 PULLEY,CRANKSHAFT |
12631-99JM0-000 |
US $41.22 |
||
|
2
|
2
12635-99J00-000 GUIDE,TIMING BELT UPR |
12635-99J00-000 |
US $2.98 |
||
|
3
|
3
12636-99J00-000 GUIDE,TIMING BELT LWR |
12636-99J00-000 |
US $3.02 |
||
|
4
|
4
12637-99J00-000 NUT,TIMING PULLEY |
12637-99J00-000 |
US $2.80 |
||
|
5
|
5
12638-99J00-000 WASHER,PULLEY NUT LOCK |
12638-99J00-000 |
US $2.13 |
||
|
6
|
6
12741-99JL0-000 PULLEY,CAMSHAFT |
12741-99JL0-000 |
US $51.20 |
||
|
7
|
7
09103-06267-000 BOLT(6X18) |
09103-06267-000 |
from US $1.12 |
||
|
8
|
8
09160-06171-000 WASHER(6.5X24X4) |
09160-06171-000 |
US $4.16 |
||
|
9
|
9
08341-31039-000 KEY |
08341-31039-000 |
from US $0.81 |
||
|
10
|
10
08341-31039-000 KEY |
08341-31039-000 |
from US $0.81 |
||
|
11
|
11
12625-99J00-000 BASE,STARTERW/ELECTRIC STARTER |
12625-99J00-000 |
US $29.44 |
||
|
11
|
11
12625-99J10-000 BASE,STARTERW/MANUAL STARTER |
12625-99J10-000 |
US $26.86 |
||
|
12
|
12
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
13
|
13
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
14
|
14
01550-08307-000 BoltW/ELECTRIC STARTER |
01550-08307-000 |
from US $1.06 |
||
|
15
|
15
01550-06127-000 BoltBolt, rect W/MANUAL STARTER |
01550-06127-000 |
from US $0.68 |
||
|
16
|
16
12761-99J00-000 BELT,TIMING |
12761-99J00-000 |
US $23.20 |
||
|
17
|
17
12764-99J00-000 COVER,TIMING BELT |
12764-99J00-000 |
US $19.20 |
||
|
18
|
18
09308-08011-000 GROMMET |
09308-08011-000 |
from US $3.86 |
||
|
19
|
19
61493-99J00-000 LABEL,CLEARANCE |
61493-99J00-000 |
US $1.55 |
||
|
20
|
20
61494-99J00-000 LABEL,OIL |
61494-99J00-000 |
US $1.55 |
