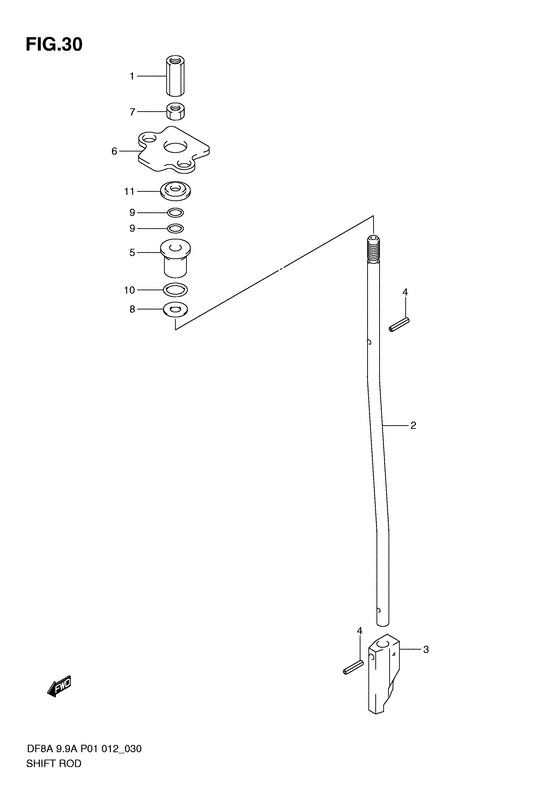

Shift rod Diagram Suzuki DF8A S/L; RS/L
- Year
- 2011
- Model
- DF8A
- Year
- 2011
- Engine
- 00801F-110001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23311-95J00-000 CONNECTOR,CLUTCH ROD |
23311-95J00-000 |
from US $5.28 |
||
|
2
|
2
25111-99J00-000
Rod,shift(s&l)
|
25111-99J00-000 |
— | ||
| replacement | |||||
|
2
|
2
25111-99J01-000 ROD,SHIFT(S&L) |
25111-99J01-000 |
from US $26.40 |
||
|
3
|
3
25311-99J00-000 CAM,SHIFT |
25311-99J00-000 |
US $19.20 |
||
|
4
|
4
09205-02004-000 PIN,SPRING(2.5X12)Spring pin Spring pin (2.5x12); |
09205-02004-000 |
US $0.96 |
||
|
5
|
5
25211-99J00-000
Guide,shift rod
|
25211-99J00-000 |
— | ||
| replacement | |||||
|
5
|
5
25211-99JL0-000 GUIDE,SHIFT ROD |
25211-99JL0-000 |
US $5.08 |
||
|
6
|
6
25215-99J00-000 STOPPER,SHIFT ROD GUIDE |
25215-99J00-000 |
US $6.08 |
||
|
7
|
7
29141-93J00-000 NUTNut, clutch rod (m6); |
29141-93J00-000 |
from US $1.52 |
||
|
8
|
8
09160-06082-000 WASHER(6.5X13X1.0)Washer (6.5x13x1.0); |
09160-06082-000 |
from US $0.96 |
||
|
9
|
9
09280-06012-000 O RING(D:1.7,ID:5.8)O ring (d:1.7,id:5.8); |
09280-06012-000 |
US $1.07 |
||
|
10
|
10
09280-09012-000 O RING(D:2.3,ID:9)O ring (d:2.3,id:9); |
09280-09012-000 |
US $1.74 |
||
|
11
|
11
09289-06164-000
Seal,dust
Dust seal (5x17x3.5); |
09289-06164-000 |
— | ||
| replacement | |||||
|
11
|
11
09289-06L02-000 SEAL,DUST(5X17X3.5)Dust seal (5x17x3.5); |
09289-06L02-000 |
US $5.88 |
||
