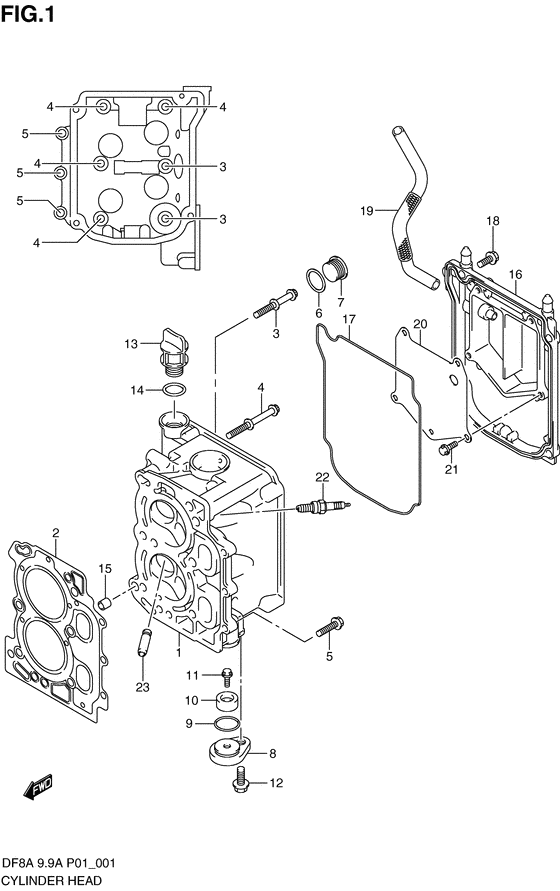

Cylinder head Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-99J00-000 Head,cylinder |
11110-99J00-000 |
US $848.32 |
||
|
2
|
2
11141-99J00-000 GASKET,CYLINDER HEAD |
11141-99J00-000 |
US $48 |
||
|
3
|
3
11118-99J00-000
BOLT,CYLINDER HEAD NO.1
Bolt, no.1 (8x67); |
11118-99J00-000 |
— | ||
| replacement | |||||
|
3
|
3
11118-99JL0-000 BOLT,CYLINDER HEAD NO.1Bolt, no.1 (8x67); |
11118-99JL0-000 |
US $4.23 |
||
|
3
|
3
11118-99JL0-000 BOLT,CYLINDER HEAD NO.1Bolt, no.1 (8x67); Df8a:110001~, df9.9a:110001~ |
11118-99JL0-000 |
US $4.23 |
||
|
4
|
4
11119-99J00-000
BOLT,CYLINDER HEAD NO.2
Bolt, no.2 (8x77); |
11119-99J00-000 |
— | ||
| replacement | |||||
|
4
|
4
11119-99JL0-000 BOLT,CYLINDER HEAD NO.2Bolt, no.2 (8x77); |
11119-99JL0-000 |
US $4.20 |
||
|
4
|
4
11119-99JL0-000 BOLT,CYLINDER HEAD NO.2Bolt, no.2 (8x77); Df8a:110001~, df9.9a:110001~ |
11119-99JL0-000 |
US $4.20 |
||
|
5
|
5
01550-06257-000 BoltBolt, no.3; |
01550-06257-000 |
from US $1.12 |
||
|
6
|
6
11216-90J00-000 GASKET,M22 PLUGGasket.oil gallery plug; |
11216-90J00-000 |
US $2.47 |
||
|
7
|
7
09248-22002-000 PLUG(22X11)Plug, lh |
09248-22002-000 |
from US $12.27 |
||
|
8
|
8
11261-93J00-000 COVER,PROTECTION ANODE |
11261-93J00-000 |
from US $14.40 |
||
|
9
|
9
09280-22019-000 O RING(D:1.9,ID:21.8)O ring, protection cover (d:1.9 id:21.8); |
09280-22019-000 |
from US $1.49 |
||
|
10
|
10
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
10
|
10
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
11
|
11
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt, protection anode; |
09103-06281-000 |
from US $1.44 |
||
|
12
|
12
01550-08207-000 BoltBolt, protection cover; |
01550-08207-000 |
from US $1.12 |
||
|
13
|
13
11382-93E00-000 Cap,oil filler |
11382-93E00-000 |
US $5.60 |
||
|
14
|
14
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring, oil filler cap (d:3.1 id:16.8); |
09280-17003-000 |
from US $1.53 |
||
|
15
|
15
04211-09109-000 PINKnock pin Pin; |
04211-09109-000 |
from US $0.86 |
||
|
16
|
16
11170-99J00-000 Cover,cylinder head |
11170-99J00-000 |
US $55.49 |
||
|
17
|
17
11178-99J00-000 O RING,CYLINDER HEAD COVER |
11178-99J00-000 |
US $7.36 |
||
|
18
|
18
01550-06207-000 BoltBolt, cylinder head cover; |
01550-06207-000 |
from US $0.96 |
||
|
19
|
19
11196-99J00-000 HOSE,BREATHER |
11196-99J00-000 |
US $4.60 |
||
|
20
|
20
11173-99J00-000 PLATE,BREATHER |
11173-99J00-000 |
US $3.31 |
||
|
21
|
21
01550-0612A-000 BoltBolt, breather plate; |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
09482-00528-000 PLUG,SPARK(CR6E)Plug, spark (cr6e); |
09482-00528-000 |
from US $9.69 |
||
|
22
|
22
09482-00L01-000
Plug, spark
Plug, spark (cr6e); Df8a:110001~, df9.9a:110001~ |
09482-00L01-000 |
— | ||
| replacement | |||||
|
22
|
22
09482-00528-000 PLUG,SPARK(CR6E)Plug, spark (cr6e); Df8a:110001~, df9.9a:110001~ |
09482-00528-000 |
from US $9.69 |
||
|
23
|
23
11115-09G00-001
GUIDE,VALVE(OS)
Guide, valve (os); Opt |
11115-09G00-001 |
— | ||
| replacement | |||||
|
23
|
23
11115-94L00-001 Guide,valve(Os)Guide, valve (os); Opt |
11115-94L00-001 |
US $25.58 |
||
