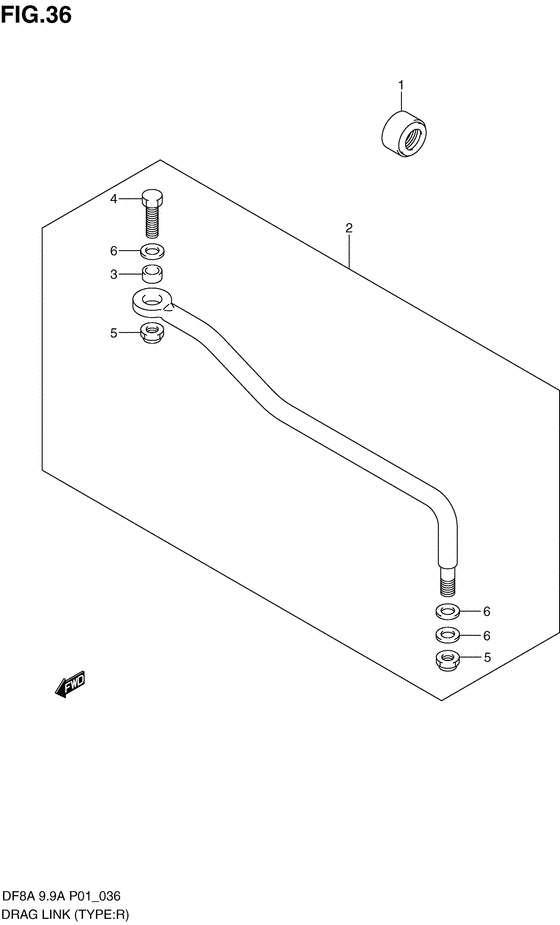

Drag link (Type: r) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41161-94400-000
SEAL,STEERING CABLE
|
41161-94400-000 |
— | ||
|
2
|
2
67701-99J00-000
Link assy,drag
|
67701-99J00-000 |
— | ||
| replacement | |||||
|
2
|
2
67701-99J02-000 LINK ASSY,DRAG |
67701-99J02-000 |
US $123.84 |
||
|
3
|
3
67721-89J00-000 SPACER,DRAG LINK |
67721-89J00-000 |
US $10.52 |
||
|
4
|
4
67725-99J00-000 Bolt |
67725-99J00-000 |
US $31.28 |
||
|
5
|
5
67726-99E00-000 NUT,LOCK |
67726-99E00-000 |
US $3.65 |
||
|
6
|
6
67728-99E00-000 WASHER |
67728-99E00-000 |
US $1.60 |
||
|
7
|
7
99011-99J02-055 MANUAL,OWNER'SNot shown |
99011-99J02-055 |
US $15.46 |
||
|
7
|
7
99011-99J01-055 MANUAL,OWNER'SDf8a:110001~, df9.9a:110001~ |
99011-99J01-055 |
US $15.46 |
||
