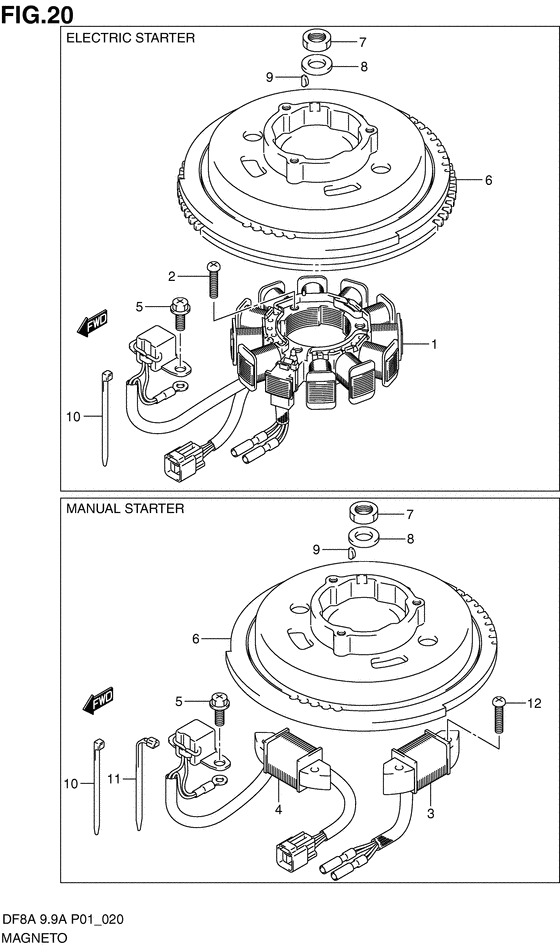

Magneto Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32120-99J00-000 COIL,STARTER & PULSERElectric starter, type:r |
32120-99J00-000 |
US $230 |
||
|
2
|
2
09125-06035-000 SCREW(6X25)Bolt Screw, stator coil (6x25); Electric starter, type:r |
09125-06035-000 |
from US $3.04 |
||
|
3
|
3
32120-99J10-000 COIL,BATTERY CHARGINGManual starter |
32120-99J10-000 |
US $91.52 |
||
|
4
|
4
32140-99J10-000
COIL,EXCITER & PULSER
Manual starter |
32140-99J10-000 |
— | ||
| replacement | |||||
|
4
|
4
32140-99J11-000 COIL COMP,EXCITER & PULSERManual starter |
32140-99J11-000 |
US $105.60 |
||
|
5
|
5
02162-05127-000 SCREWScrew Screw, ignition timing coil; |
02162-05127-000 |
US $11 |
||
|
6
|
6
32102-99J00-000 FLYWHEEL,MAGNETOElectric starter, type:r |
32102-99J00-000 |
US $296.24 |
||
|
6
|
6
32102-99J10-000 FLYWHEEL,MAGNETOManual starter |
32102-99J10-000 |
US $248.40 |
||
|
7
|
7
09140-14008-000 NUTNut, magneto flywheel (m14); |
09140-14008-000 |
from US $1.68 |
||
|
8
|
8
09160-15047-000
Washer (15x27x4.0)
Washer, flywheel (15x27x4.0); |
09160-15047-000 |
— | ||
| replacements | |||||
|
8
|
8
09160-15057-000 WASHER(15X27X4)Washer, flywheel (15x27x4.0); |
09160-15057-000 |
US $11 |
||
|
8
|
8
59171-94J00-000
Washer,flywheel
Washer, flywheel (15x27x4.0); |
59171-94J00-000 |
— | ||
|
9
|
9
08341-31039-000 KEY |
08341-31039-000 |
from US $0.81 |
||
|
10
|
10
09407-14407-000 CLAMP(L:145)Band Clamp, harness; |
09407-14407-000 |
from US $2.08 |
||
|
11
|
11
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp, stator lead; Manual starter |
09407-14403-000 |
from US $1.08 |
||
|
12
|
12
02112-06307-000 SCREWScrew, magneto coil; Manual starter |
02112-06307-000 |
from US $0.80 |
||
