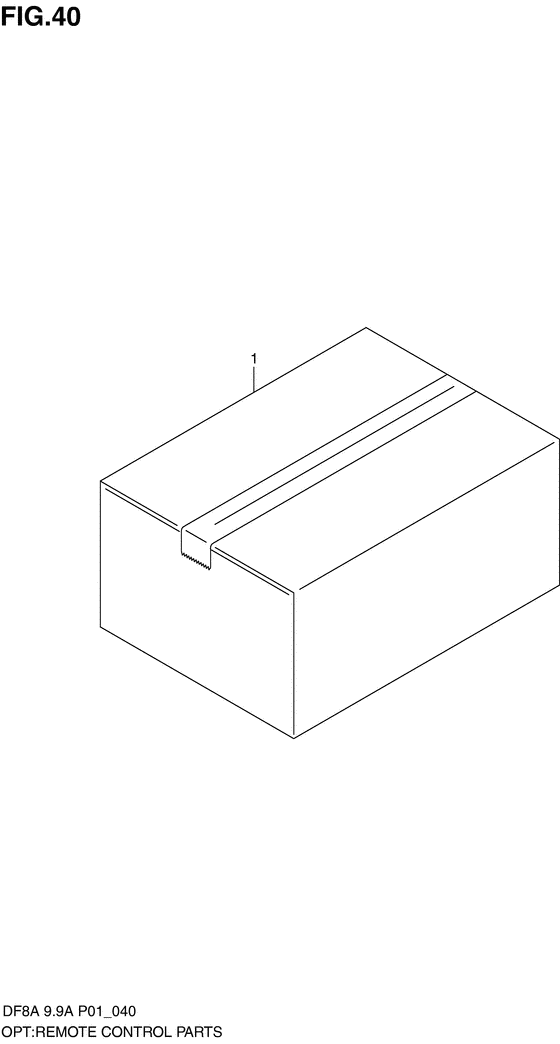

Remote control parts (Optional;) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67130-99J00-000
Parts set,r/con
|
67130-99J00-000 |
— | ||
| replacement | |||||
|
1
|
1
67130-99J01-000 PARTS SET,REMOCON |
67130-99J01-000 |
US $440 |
||
|
2
|
2
19120-99J10-000
LEVER,THROTTLE CONTROL
Not shown,refer to fig.13 |
19120-99J10-000 |
— | ||
| replacement | |||||
|
2
|
2
19120-99J11-000 LEVER,THROTTLE CONTROLNot shown,refer to fig.13 |
19120-99J11-000 |
US $10.40 |
||
|
3
|
3
19122-99J00-000 LEVER,INTERLINK THROTTLE NO.2Not shown,refer to fig.13 |
19122-99J00-000 |
US $4.64 |
||
|
4
|
4
19184-99J10-000 PLATE,THROTTLE LINK(R)Not shown,refer to fig.13 |
19184-99J10-000 |
US $3.72 |
||
|
5
|
5
19185-99J00-000 SPRING,THROTTLE LEVERNot shown,refer to fig.13 |
19185-99J00-000 |
US $7.52 |
||
|
6
|
6
21241-99J00-000 LINK,CLUTCH LEVERNot shown,refer to fig.16 |
21241-99J00-000 |
US $3.02 |
||
|
7
|
7
23210-99J00-000 LEVER,CLUTCH CONTROLNot shown,refer to fig.16 |
23210-99J00-000 |
US $5.96 |
||
|
8
|
8
09204-01002-000 PINCotter pin Pin, clutch lever link; Not shown,refer to fig.16 |
09204-01002-000 |
from US $1.12 |
||
|
9
|
9
09160-05029-000 WASHER(5.5X12X0.8)Washer, cl link lever (5.5x12x0.8); Not shown,refer to fig.16 |
09160-05029-000 |
from US $1.12 |
||
|
10
|
10
09385-04003-000 CLIPClip, cl lever link; Not shown,refer to fig.16 |
09385-04003-000 |
from US $1.22 |
||
|
11
|
11
43755-99J00-000 ATTACHMENT,STEERING BRACKETNot shown,refer to fig.26 |
43755-99J00-000 |
US $72.21 |
||
|
12
|
12
09108-08286-000 BOLT,STUDNot shown,refer to fig.26 |
09108-08286-000 |
US $4.87 |
||
|
13
|
13
09159-08059-000 NUTNut, clutch lever Nut, attachment (m8); Not shown,refer to fig.26 |
09159-08059-000 |
from US $3.65 |
||
|
14
|
14
09160-08082-000 WASHER(8.5X16X1.2)Washer, attachment (8.5x16x1.2); Not shown,refer to fig.26 |
09160-08082-000 |
from US $1.08 |
||
|
15
|
15
36360-99J10-000 INDICATOR,OIL PRESSURENot shown,refer to fig.22 |
36360-99J10-000 |
US $23.56 |
||
|
16
|
16
36610-99J20-000 HARNESS ASSY,WIRINGNot shown,refer to fig.23 |
36610-99J20-000 |
US $58.88 |
||
|
17
|
17
09481-20501-000 FUSE(20A)Fuse (20a); Not shown,refer to fig.23 |
09481-20501-000 |
from US $1.04 |
||
|
18
|
18
36656-99J10-000 GROMMET,CABLE(PORT)Grommet, cable (port); Not shown,refer to fig.23 |
36656-99J10-000 |
US $2.72 |
||
|
19
|
19
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp, harness; Not shown,refer to fig.23 |
09407-14403-000 |
from US $1.08 |
||
|
20
|
20
09407-14407-000 CLAMP(L:145)Band Clamp, harness; Not shown,refer to fig.23 |
09407-14407-000 |
from US $2.08 |
||
|
21
|
21
61124-99J10-000 GROMMET,REMOCON CABLEGrommet, r/con cable (stbd); Not shown,refer to fig.30 |
61124-99J10-000 |
US $12.88 |
||
|
22
|
22
67467-89J01-000 CONNECTORConnector, r/con cable; Not shown,refer to fig.35 |
67467-89J01-000 |
from US $6.82 |
||
|
23
|
23
09160-06055-000 WASHER(7X12X1)Washer (7x12x1.0) Washer, r/con cable connector (7x12x1); Not shown,refer to fig.35 |
09160-06055-000 |
from US $1.22 |
||
|
24
|
24
09385-06012-000 CLIPClip, r/con cable connector; Not shown,refer to fig.35 |
09385-06012-000 |
from US $1.22 |
||
|
25
|
25
67340-99J00-000 HOLDER,REMOCON CABLENot shown,refer to fig.35 |
67340-99J00-000 |
US $21.53 |
||
|
26
|
26
01550-06167-000 BoltBolt, remocon cable holder; Not shown,refer to fig.35 |
01550-06167-000 |
from US $0.68 |
||
