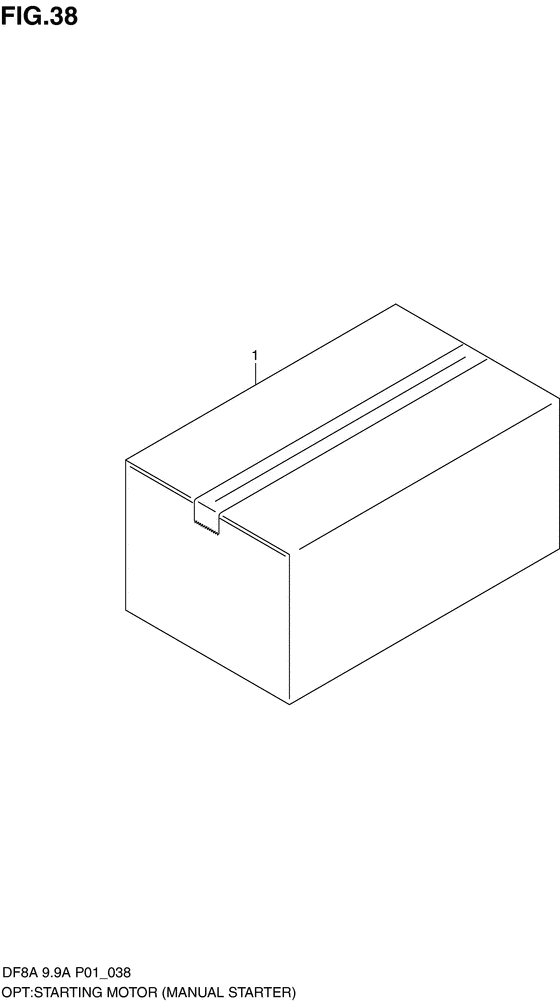

Starting motor (Optional; manual starter) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31000-99J00-000
STARTER SET,ELECTRIC
|
31000-99J00-000 |
— | ||
| replacement | |||||
|
1
|
1
31000-99J01-000 STARTER SET,ELECTRIC |
31000-99J01-000 |
US $985.60 |
||
|
2
|
2
12625-99J00-000 BASE,STARTERNot shown,refer to fig.4 |
12625-99J00-000 |
US $29.44 |
||
|
3
|
3
31101-99J00-000
MOTOR SET,STARTER
Not shown |
31101-99J00-000 |
— | ||
| replacement | |||||
|
3
|
3
31101-99J01-000 Motor Set,starterNot shown |
31101-99J01-000 |
US $770.88 |
||
|
4
|
4
31100-94J21-000
Motor assy,starting
Not shown |
31100-94J21-000 |
— | ||
| replacement | |||||
|
4
|
4
31100-94J22-000 MOTOR ASSY,STARTINGNot shown |
31100-94J22-000 |
US $595.84 |
||
|
5
|
5
31912-99J00-000 BAND,STARTER MOTORNot shown,refer to fig.19 |
31912-99J00-000 |
US $8.32 |
||
|
6
|
6
31918-94J00-000
DAMPER,LWR
Not shown,refer to fig.19 |
31918-94J00-000 |
— | ||
| replacement | |||||
|
6
|
6
31918-94J01-000 Damper,lwrNot shown,refer to fig.19 |
31918-94J01-000 |
US $6.88 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor Not shown,refer to fig.19 |
38860-76F01-000 |
from US $26.53 |
||
|
8
|
8
38915-90J00-000 HOLDER,RELAYNot shown,refer to fig.19 |
38915-90J00-000 |
from US $3.34 |
||
|
9
|
9
01550-06167-000 BoltBolt, lower; Not shown,refer to fig.19 |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
01550-08257-000 BoltBolt, upper; Not shown,refer to fig.19 |
01550-08257-000 |
from US $0.95 |
||
|
11
|
11
08316-10087-000 NUTNot shown,refer to fig.19 |
08316-10087-000 |
from US $0.80 |
||
|
12
|
12
32104-99J00-000 MAGNETO SETNot shown |
32104-99J00-000 |
US $344.08 |
||
|
13
|
13
32102-99J00-000 FLYWHEEL,MAGNETOFlywheel, magneto; Not shown,refer to fig.20 |
32102-99J00-000 |
US $296.24 |
||
|
14
|
14
32120-99J00-000 COIL,STARTER & PULSERNot shown,refer to fig.20 |
32120-99J00-000 |
US $230 |
||
|
15
|
15
09125-06035-000 SCREW(6X25)Bolt Screw, stator coil; Not shown,refer to fig.20 |
09125-06035-000 |
from US $3.04 |
||
|
16
|
16
32801-99J00-000 RECTIFIER & REGULATOR SETNot shown |
32801-99J00-000 |
US $144.99 |
||
|
17
|
17
32800-99J00-000 RECTIFIER & REGULATOR ASSYNot shown,refer to fig.21 |
32800-99J00-000 |
US $142.42 |
||
|
18
|
18
01550-06257-000 BoltBolt, rectifier; Not shown,refer to fig.21 |
01550-06257-000 |
from US $1.12 |
||
|
19
|
19
32900-99J00-000 UNIT,CDIUnit, cdi; Not shown,refer to fig.21 |
32900-99J00-000 |
from US $214.40 |
||
|
20
|
20
33800-99J00-000
CABLE SET,STARTER
Not shown |
33800-99J00-000 |
— | ||
| replacement | |||||
|
20
|
20
33800-99J01-000 CABLE SET,STARTERNot shown |
33800-99J01-000 |
US $222.64 |
||
|
21
|
21
33810-99J00-000 CABLE,STARTERNot shown,refer to fig.23 |
33810-99J00-000 |
US $33.12 |
||
|
22
|
22
36655-99J00-000 PLATE,CABLE GROMMETNot shown |
36655-99J00-000 |
US $30.91 |
||
|
23
|
23
36656-99J20-000
GROMMET,CABLE(PORT)
Grommet, cable (port); Not shown |
36656-99J20-000 |
— | ||
| replacement | |||||
|
23
|
23
36656-99J21-000 Grommet,cable(Port)Grommet, cable (port); Not shown |
36656-99J21-000 |
US $15.42 |
||
|
24
|
24
37161-89E13-000 SWITCH,STARTSwitch, starting motor Switch assy, starter; Not shown,refer to fig.22 |
37161-89E13-000 |
US $26.86 |
||
|
25
|
25
37721-99J10-000 SWITCH ASSY,NEUTRALNot shown,refer to fig.22 |
37721-99J10-000 |
US $32.02 |
||
|
26
|
26
37724-99J00-000 ROD,SWITCH PUSHRod, switch push; Not shown,refer to fig.22 |
37724-99J00-000 |
US $2.47 |
||
|
27
|
27
37726-99J10-000 BRACKET,NEUTRAL SWITCHNot shown,refer to fig.22 |
37726-99J10-000 |
from US $3.09 |
||
|
28
|
28
09137-04004-000 SCREW(4X16)Not shown,refer to fig.22 |
09137-04004-000 |
US $1.49 |
||
|
29
|
29
09159-14014-000 NUTNut, starter sw; Not shown,refer to fig.22 |
09159-14014-000 |
from US $6.26 |
||
|
30
|
30
36610-99J00-000 HARNESS ASSY,WIRINGNot shown,refer to fig.23 |
36610-99J00-000 |
US $47.84 |
||
|
31
|
31
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Not shown,refer to fig.23 |
09407-14403-000 |
from US $1.08 |
||
|
32
|
32
09407-14407-000 CLAMP(L:145)Band Clamp; Not shown,refer to fig.23 |
09407-14407-000 |
from US $2.08 |
||
