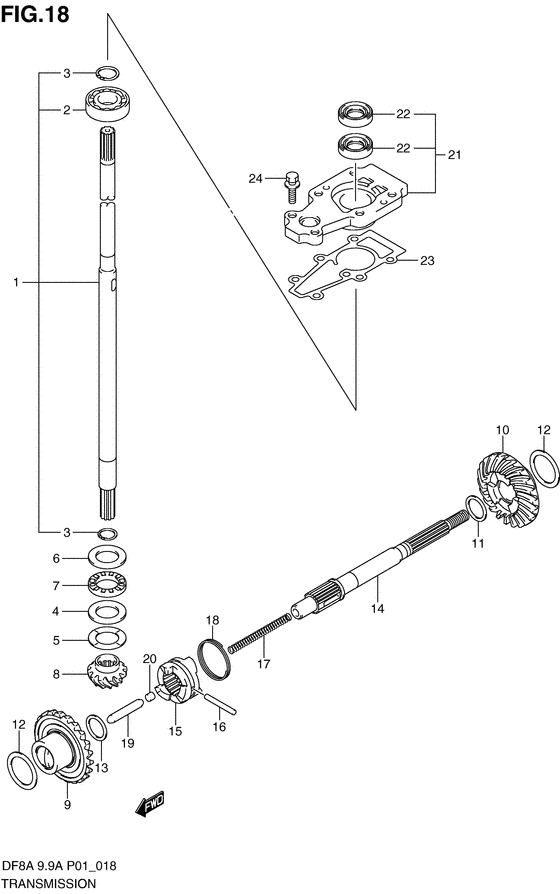

Transmission Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57100-99J20-000
SHAFT ASSY,DRIVE(S)
Shaft assy, drive (s); |
57100-99J20-000 |
— | ||
| replacement | |||||
|
1
|
1
57100-99JL0-000 SHAFT ASSY,DRIVE(S)Shaft assy, drive (s); |
57100-99JL0-000 |
US $157.50 |
||
|
1
|
1
57100-99J30-000
Shaft assy,drive(l)
Shaft assy, drive (l); |
57100-99J30-000 |
— | ||
| replacement | |||||
|
1
|
1
57100-99JM0-000 SHAFT ASSY,DRIVE(L)Shaft assy, drive (l); |
57100-99JM0-000 |
US $187.68 |
||
|
2
|
2
08110-60020-000 BEARINGBearing |
08110-60020-000 |
from US $9.28 |
||
|
3
|
3
09380-15001-000 RING,SNAPCirclip |
09380-15001-000 |
from US $0.96 |
||
|
4
|
4
09160-20027-000 WASHER(20X35X2.75)Washer (20x35x2.75) Washer (20x35x2.75); |
09160-20027-000 |
from US $6.72 |
||
|
5
|
5
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) Shim (20x34x1.0); Pinion |
09181-20251-000 |
from US $1.62 |
||
|
5
|
5
09160-20042-000 SHIM(20X34X1.1)Shim (t:1.1) Shim (20x34x1.1); |
09160-20042-000 |
from US $1.35 |
||
|
5
|
5
09160-20043-000 SHIM(20X34X1.2)Shim (t:1.2) Shim (20x34x1.2); |
09160-20043-000 |
US $1.35 |
||
|
5
|
5
09160-20044-000 SHIM(20X34X1.3)Shim (t:1.3) Shim (20x34x1.3); |
09160-20044-000 |
from US $1.49 |
||
|
5
|
5
09181-20244-000 SHIM(20X34X0.7)Shim (20x34x0.7); |
09181-20244-000 |
from US $1.82 |
||
|
5
|
5
09181-20246-000 SHIM(20X34X0.8)Shim (20x34x0.8); |
09181-20246-000 |
from US $1.82 |
||
|
5
|
5
09181-20248-000 SHIM(20X34X0.9)Shim (20x34x0.9); |
09181-20248-000 |
from US $1.62 |
||
|
6
|
6
09160-21009-000 WASHER(21X35X2.75)Washer (21x35x2.75) Washer (21x35x2.75); Pinion thrust upr |
09160-21009-000 |
from US $6.56 |
||
|
7
|
7
09263-20024-000 BEARING(20X35X4.5)Bearing (20x35x4.5) Bearing (20x35x4.5); Pinion thrust |
09263-20024-000 |
from US $26.40 |
||
|
8
|
8
57311-94J00-000
Pinion
|
57311-94J00-000 |
— | ||
| replacement | |||||
|
8
|
8
57311-94JL0-000 PINION |
57311-94JL0-000 |
US $85.89 |
||
|
9
|
9
57510-94J00-000
Gear, forward
|
57510-94J00-000 |
— | ||
| replacement | |||||
|
9
|
9
57510-94JL0-000 GEAR,FORWARD |
57510-94JL0-000 |
US $160.35 |
||
|
10
|
10
57521-94J00-000
Gear, reverse
|
57521-94J00-000 |
— | ||
| replacement | |||||
|
10
|
10
57521-94JL0-000 GEAR,REVERS |
57521-94JL0-000 |
US $170.24 |
||
|
11
|
11
09160-17024-000 WASHER(17X23X1.1)Washer (17x23x1.1); Prop shaft rev |
09160-17024-000 |
US $12.90 |
||
| replacement | |||||
|
11
|
11
09181-17144-000
SHIM(17X24X1.1)
Washer (17x23x1.1); Prop shaft rev |
09181-17144-000 |
— | ||
|
11
|
11
09160-17039-000 WASHER(17X23X1.2)Washer (17x23x1.2); |
09160-17039-000 |
from US $2.84 |
||
| replacement | |||||
|
11
|
11
09181-17148-000
SHIM(17X24X1.2)
Washer (17x23x1.2); |
09181-17148-000 |
— | ||
|
11
|
11
09160-17025-000 WASHER(17X23X1.3)Washer (17x23x1.3); |
09160-17025-000 |
from US $2.84 |
||
| replacement | |||||
|
11
|
11
09181-17153-000
SHIM(17X24X1.3)
Washer (17x23x1.3); |
09181-17153-000 |
— | ||
|
11
|
11
09160-17040-000 WASHER(17X23X1.4)Washer (17x23x1.4); |
09160-17040-000 |
from US $2.84 |
||
| replacement | |||||
|
11
|
11
09181-17154-000
SHIM(17X24X1.4)
Washer (17x23x1.4); |
09181-17154-000 |
— | ||
|
11
|
11
09160-17026-000 WASHER(17X23X1.5)Washer (t:1.5) Washer (17x23x1.5); |
09160-17026-000 |
from US $1.28 |
||
|
11
|
11
09160-17041-000 WASHER(17X23X1.6)Washer (17x23x1.6); |
09160-17041-000 |
from US $4.28 |
||
|
11
|
11
09160-17027-000 WASHER(17X23X1.7)Washer (t:1.7) Washer (17x23x1.7); |
09160-17027-000 |
from US $3.43 |
||
|
11
|
11
09160-17042-000 WASHER(17X23X1.8)Washer (17x23x1.8); |
09160-17042-000 |
from US $4.28 |
||
|
11
|
11
09160-17028-000 WASHER(17X23X1.9)Washer (t:1.9) Washer (17x23x1.9); |
09160-17028-000 |
US $12.90 |
||
|
12
|
12
09181-25160-000 SHIM(25X34X0.7)Shim (t:0.7) Shim (25x34x0.7); Back up |
09181-25160-000 |
from US $1.76 |
||
|
12
|
12
09181-25162-000 SHIM(25X34X0.8)Shim (25x34x0.8); |
09181-25162-000 |
US $16.20 |
||
|
12
|
12
09181-25164-000 SHIM(25X34X0.9)Shim (25x34x0.9); |
09181-25164-000 |
US $16.20 |
||
|
12
|
12
09160-25040-000 WASHER(25X34X1)Shim (t:1.0) Shim (25x34x1.0); |
09160-25040-000 |
from US $1.52 |
||
|
12
|
12
09160-25041-000 WASHER(25X34X1.1)Shim (t:1.1) Shim (25x34x1.1); |
09160-25041-000 |
from US $4.85 |
||
|
12
|
12
09160-25042-000 WASHER(25X34X1.2)Shim (t:1.2) Shim (25x34x1.2); |
09160-25042-000 |
from US $4.85 |
||
|
12
|
12
09181-25181-000 SHIM(25X34X1.3)Shim (t:1.3) Shim (25x34x1.3); |
09181-25181-000 |
from US $4.66 |
||
|
13
|
13
09181-15156-000 SHIM(15X22X1.5)Washer (t:1.5) Washer (15x22x1.5); Prop shaft fwd |
09181-15156-000 |
from US $1.82 |
||
|
14
|
14
57610-99J10-000
Shaft,propeller
|
57610-99J10-000 |
— | ||
| replacement | |||||
|
14
|
14
57610-99JL0-000
SHAFT,PROPELLER
|
57610-99JL0-000 |
— | ||
|
15
|
15
57621-93902-000
Sifter, clutch dog
|
57621-93902-000 |
— | ||
| replacement | |||||
|
15
|
15
57621-90L10-000 SHIFTER,CLUTCH DOG |
57621-90L10-000 |
US $24.29 |
||
|
16
|
16
09202-04025-000 PIN(4X31)Pin (4x31); |
09202-04025-000 |
US $3.50 |
||
|
17
|
17
59441-94J00-000 SPRING,RETURN |
59441-94J00-000 |
US $1.68 |
||
|
18
|
18
59441-99J00-000 SPRING,DOG |
59441-99J00-000 |
US $1.68 |
||
|
19
|
19
57631-93901-000 ROD,PUSH |
57631-93901-000 |
US $5.60 |
||
|
20
|
20
57632-98500-000
Push pin
Pin (6x6); |
57632-98500-000 |
— | ||
| replacements | |||||
|
20
|
20
57632-98501-000
PIN,PUSH
Pin (6x6); |
57632-98501-000 |
— | ||
|
20
|
20
57632-97L00-000 Push pinPin (6x6); |
57632-97L00-000 |
from US $2.28 |
||
|
21
|
21
56130-99J10-000
Housing,drive shaft brg
|
56130-99J10-000 |
— | ||
| replacement | |||||
|
21
|
21
56130-99J30-000 HOUSING,DRIVE SHAFT BRG |
56130-99J30-000 |
US $52.45 |
||
|
22
|
22
09282-13003-000
Seal,oil,12.5x25x7
Seal, drive shaft oil (12.5x25x7); |
09282-13003-000 |
— | ||
| replacement | |||||
|
22
|
22
09282-13L01-000 SEAL,OIL(12.5X25X7)Seal, drive shaft oil (12.5x25x7); |
09282-13L01-000 |
US $6.42 |
||
|
23
|
23
56132-99J00-000 GASKET,DRIVE SHAFT BEARING HSG |
56132-99J00-000 |
US $2.29 |
||
|
24
|
24
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt, drive shaft brg hsg (6x25); |
09116-06121-000 |
from US $1.22 |
||
