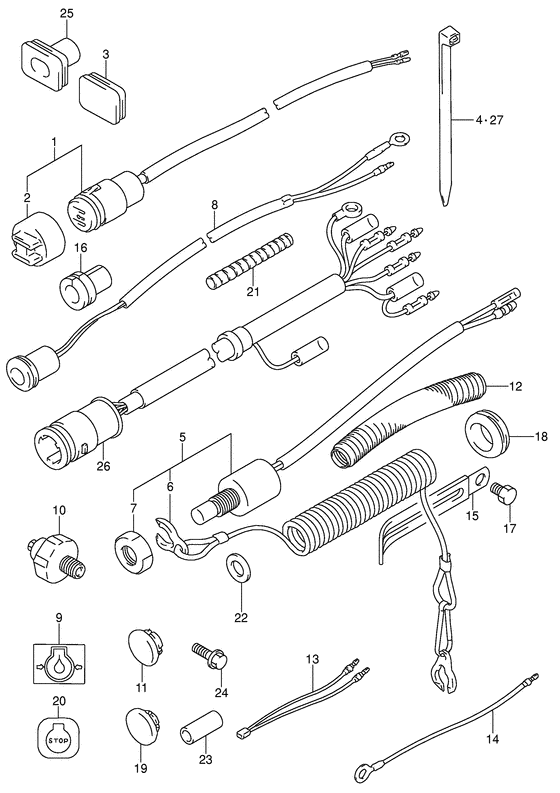

Electrical (2)(df9.9 652501~/df15 652501~) Diagram Suzuki DF9.9 S/L; RS/L
- Year
- 1996
- Model
- DF9.9
- Year
- 1996
- Engine
- 00991F-651001 ~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39601-95D00-000
RECEPTACLE
Receptacle assy, lighting; Manual starter, opt, |
39601-95D00-000 |
— | ||
| replacement | |||||
|
1
|
1
39601-95D01-000 ReceptacleReceptacle assy, lighting; Manual starter, opt, |
39601-95D01-000 |
US $35.70 |
||
|
2
|
2
36634-93910-000 CAPManual starter, opt |
36634-93910-000 |
from US $2.58 |
||
|
3
|
3
39603-94400-000
GROMMET,RECEPTACLEE
Grommet, receptacle cable; Manual starter, opt |
39603-94400-000 |
— | ||
| replacement | |||||
|
3
|
3
39603-94401-000 Grommet,receptacleeGrommet, receptacle cable; Manual starter, opt |
39603-94401-000 |
US $6.40 |
||
|
4
|
4
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); Manual starter, opt |
09407-14403-000 |
from US $2.08 |
||
|
4
|
4
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp (l:248); Manual starter, opt |
09407-25402-000 |
from US $4.48 |
||
|
5
|
5
37830-93E00-000
Switch assy, emergency
Switch assy, emergency/stop; |
37830-93E00-000 |
— | ||
| replacements | |||||
|
5
|
5
37830-93E03-000
SWITCH ASSY,EMERGENCY & STOP
Switch assy, emergency/stop; |
37830-93E03-000 |
— | ||
|
5
|
5
37830-93E04-000 Switch Assy,emergency & StopSwitch assy, emergency/stop; |
37830-93E04-000 |
US $60.72 |
||
|
6
|
6
37823-92E00-000
Plate,lock
Plate; |
37823-92E00-000 |
— | ||
| replacements | |||||
|
6
|
6
37823-92E01-000
PLATE ASSY,EMERGENCY SW LOCK
Plate; |
37823-92E01-000 |
— | ||
|
6
|
6
37823-92E02-000 Plate Assy,emergency Sw LockPlate; |
37823-92E02-000 |
US $19.69 |
||
|
7
|
7
37826-92E00-000 NUT |
37826-92E00-000 |
US $5.67 |
||
|
8
|
8
36360-89E10-000 INDICATOR,OIL LEVELIndicator, oil level Df9.9(a),15(a) |
36360-89E10-000 |
US $50.78 |
||
|
8
|
8
36360-93E00-000 INDICATOR,OIL LEVELDf9.9r(ar),15r(ar) |
36360-93E00-000 |
US $50.78 |
||
|
9
|
9
36367-93E00-019 LABEL,OIL PRESSURELabel, oil level (black) Label, oil level (black); |
36367-93E00-019 |
US $2.58 |
||
|
10
|
10
37820-93E10-000
SWITCH,OIL PRESSURE
Switch, pressure; |
37820-93E10-000 |
— | ||
| replacement | |||||
|
10
|
10
37820-93E11-000 SWITCH ASSY,OIL PRESSURESwitch, pressure; |
37820-93E11-000 |
US $23.57 |
||
|
11
|
11
09250-13005-000 PLUG(OD:20)Cap, emergency/stop Cap, emergency/stop; Opt |
09250-13005-000 |
US $32.40 |
||
|
12
|
12
33834-93E00-000 TUBE(14.1X10.7X180)Tube, switch lead Tube, switch lead; |
33834-93E00-000 |
US $2.83 |
||
|
13
|
13
36810-93E20-000 LEAD,NEUTRAL LIMIT MEElectric starter |
36810-93E20-000 |
US $7.51 |
||
|
14
|
14
36810-93E30-000
LEAD,NEUTRAL LIMIT MZ
Manual starter |
36810-93E30-000 |
— | ||
|
15
|
15
09404-06432-000
CLAMP(L:65)
Clamp (l:80); ~model:00 |
09404-06432-000 |
— | ||
| replacement | |||||
|
15
|
15
09404-06039-000 Clamp(L:65)Clamp (l:80); ~model:00 |
09404-06039-000 |
from US $1.82 |
||
|
16
|
16
36612-92D00-000 GROMMETDf9.9a/r/ar, df15a/r/ar |
36612-92D00-000 |
US $7.36 |
||
|
17
|
17
09100-06106-000 BOLT(6X9)Bolt (6x9) Bolt (6x9); ~model:00 |
09100-06106-000 |
from US $1.93 |
||
|
18
|
18
09308-16006-000 GROMMETGrommet |
09308-16006-000 |
from US $1.93 |
||
|
19
|
19
09250-12006-000
CAP(OD:20)
Plug; Led hole |
09250-12006-000 |
— | ||
| replacement | |||||
|
19
|
19
09250-12016-000 Cap(Od:20)Plug; Led hole |
09250-12016-000 |
US $1.52 |
||
|
20
|
20
37835-93E00-000
LABEL,STOP
|
37835-93E00-000 |
— | ||
|
20
|
20
37835-95D00-000
LABEL,STOP
Model:02,03 |
37835-95D00-000 |
— | ||
| replacement | |||||
|
20
|
20
37835-91J00-YAY LABEL,STOPModel:02,03 |
37835-91J00-YAY |
US $1.49 |
||
|
21
|
21
38423-95510-000
Tube,150
Tube (l:150); |
38423-95510-000 |
— | ||
| replacement | |||||
|
21
|
21
33833-91J00-000 TUBE,SWITCH LEAD(L:250)Tube (l:150); |
33833-91J00-000 |
US $4.64 |
||
|
22
|
22
09160-12067-000 WASHER(12.5X23X1)Washer, emergency sw Washer, emergency switch; |
09160-12067-000 |
from US $2.78 |
||
|
23
|
23
09180-08210-000 SPACER(8.5X15X10)Manual starter |
09180-08210-000 |
US $25.80 |
||
|
24
|
24
01550-08257-000 BOLTManual starter |
01550-08257-000 |
from US $0.95 |
||
|
25
|
25
39669-94400-000 PLUG,LWR COVERManual starter, model:00~03 |
39669-94400-000 |
US $3.09 |
||
|
26
|
26
36630-89E02-000 HARNESS ASSY,WIRINGHarness, wiring Harness, wiring; Df9.9a/r/ar, df15a/r/ar |
36630-89E02-000 |
US $73.60 |
||
|
27
|
27
09407-14407-000 CLAMP(L:145)Band Clamp, emergency & stop switch lead wire; Model:03 |
09407-14407-000 |
from US $2.08 |
||
