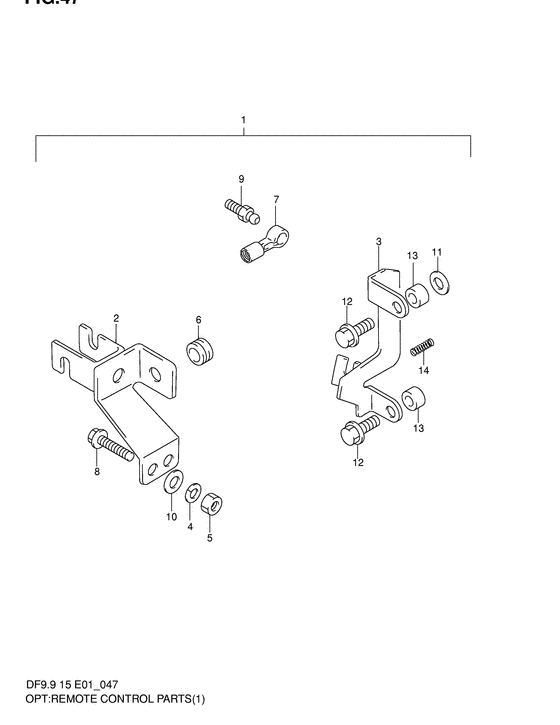

Remote control parts (Optional;) Diagram Suzuki DF9.9 S/L; RS/L
- Year
- 1996
- Model
- DF9.9
- Year
- 1996
- Engine
- 00991F-651001 ~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67130-93E01-000 PARTS ASSY,REMOCON |
67130-93E01-000 |
US $169.65 |
||
|
2
|
2
67340-93E00-000
HOLDER,REMOCON CABLE(THROTTLE)
|
67340-93E00-000 |
— | ||
|
3
|
3
67350-93E10-000
Holder, remocon cable
|
67350-93E10-000 |
— | ||
| replacement | |||||
|
3
|
3
67350-93E20-000
HOLDER,REMOCON CABLE
|
67350-93E20-000 |
— | ||
|
4
|
4
09162-06006-000 WASHER,LOCKLock washer Washer; |
09162-06006-000 |
from US $2.35 |
||
|
5
|
5
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
6
|
6
09308-08013-000
GROMMET
Throttle |
09308-08013-000 |
— | ||
| replacement | |||||
|
6
|
6
09308-08017-000 GrommetThrottle |
09308-08017-000 |
US $1.44 |
||
|
7
|
7
67466-95200-000 CONNECTORConnector, throttle cable Connector, remo-con throttle; |
67466-95200-000 |
US $6.51 |
||
|
8
|
8
09100-06121-000
BOLT(6X30)
Bolt, holder (6x30); |
09100-06121-000 |
— | ||
| replacement | |||||
|
8
|
8
09116-06232-000 BOLT(6X30)Bolt, holder (6x30); |
09116-06232-000 |
from US $2.29 |
||
|
9
|
9
09119-06047-000 PIVOTPivot, ball Pivot, ball; |
09119-06047-000 |
from US $9.91 |
||
|
10
|
10
09160-06082-000 WASHER(6.5X13X1.0)Washer (6.5x13x1.0); |
09160-06082-000 |
from US $0.96 |
||
|
11
|
11
09160-08059-000 WASHER(8.5X18X1.6)Washer (8.5x18x1.6) Washer (8.5x18x1.6); |
09160-08059-000 |
from US $2.67 |
||
|
12
|
12
01550-08257-000 Bolt |
01550-08257-000 |
from US $0.95 |
||
|
13
|
13
09180-08132-000
Spacer
|
09180-08132-000 |
— | ||
|
14
|
14
09440-07021-000 SPRINGSpring, clutch notch |
09440-07021-000 |
US $11.80 |
||
