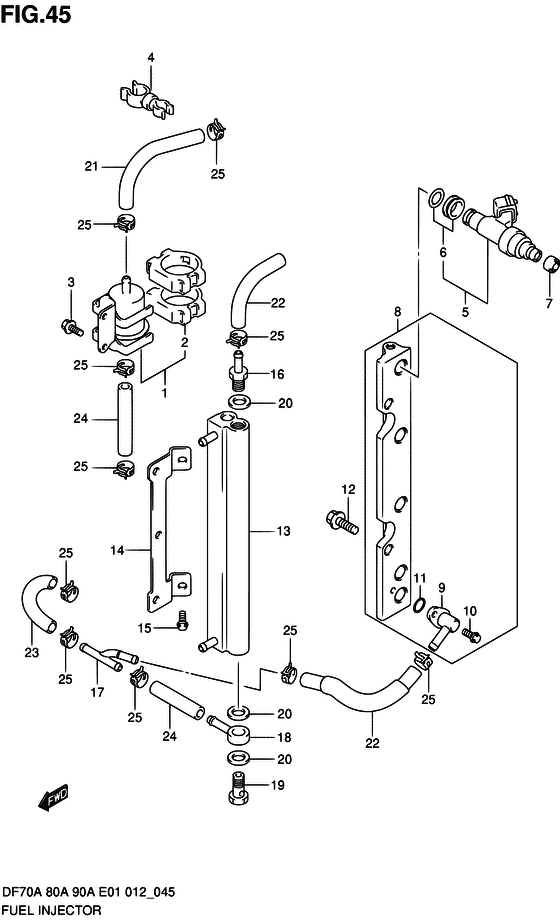

Fuel injector ((DF90A E40)) Diagram Suzuki DF90A T(H)L/X
- Year
- 2012
- Model
- DF90A
- Year
- 2012
- Engine
- 09003F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15440-87L20-000
FILTER ASSY,FUEL(HP)
|
15440-87L20-000 |
— | ||
| replacement | |||||
|
1
|
1
15440-87L21-000 Filter Assy,fuel(Hp) |
15440-87L21-000 |
US $57.78 |
||
|
2
|
2
15422-96J00-000
CLAMP,FUEL FILTER
|
15422-96J00-000 |
— | ||
| replacement | |||||
|
2
|
2
15422-96J01-000 Clamp,fuel Filter |
15422-96J01-000 |
from US $6.69 |
||
|
3
|
3
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
4
|
4
09408-00233-000 CLAMP |
09408-00233-000 |
from US $3.24 |
||
|
5
|
5
15710-82K50-000 INJECTOR ASSY,FUEL (BLACK) |
15710-82K50-000 |
from US $167.38 |
||
|
6
|
6
15716-65DT0-000 GROMMET SET,FUEL INJECTOR |
15716-65DT0-000 |
from US $8.64 |
||
|
7
|
7
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.32 |
||
|
8
|
8
15750-87L20-000
PIPE,DELIVERY
|
15750-87L20-000 |
— | ||
|
9
|
9
15830-87L10-000 JOINT,FUEL MAIN |
15830-87L10-000 |
US $47.10 |
||
|
10
|
10
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
11
|
11
09280-08012-000 O RING(D:1.9,ID:7.8)O ring (d:1.9 id:7.8) |
09280-08012-000 |
from US $1.22 |
||
|
12
|
12
01550-08257-000 BOLT |
01550-08257-000 |
from US $0.95 |
||
|
13
|
13
15770-87L00-000 COOLER,FUEL |
15770-87L00-000 |
US $93.47 |
||
|
14
|
14
15775-87L00-000
BRACKET,FUEL COOLER
|
15775-87L00-000 |
— | ||
|
15
|
15
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
16
|
16
15773-90J00-000 UNION,FUEL HOSE |
15773-90J00-000 |
US $10.82 |
||
|
17
|
17
15830-93J00-000 UNION,THREE WAY FUEL HOSE |
15830-93J00-000 |
US $12.81 |
||
|
18
|
18
15830-90J00-000 JOINT,FUEL MAINJoint, fuel main |
15830-90J00-000 |
US $14.24 |
||
|
19
|
19
09360-12013-000 UNION |
09360-12013-000 |
from US $9.95 |
||
|
20
|
20
15762-90J00-000 GASKET,UNIONGasket, union |
15762-90J00-000 |
US $4.16 |
||
|
21
|
21
15681-87L30-000
HOSE,FUEL(FILTER TO COOLER)
|
15681-87L30-000 |
— | ||
|
22
|
22
15681-87L40-000
HOSE,FUEL(3 WAY TO DLVY)
|
15681-87L40-000 |
— | ||
|
23
|
23
15682-87L20-000
HOSE,FUEL(3 WAY TO SEPARATOR)
|
15682-87L20-000 |
— | ||
|
24
|
24
09343-75001-600
HOSE(7.5X13.5X600)
|
09343-75001-600 |
— | ||
| replacement | |||||
|
24
|
24
09343-75002-600 Hose(7.5X13.5X600) |
09343-75002-600 |
from US $27.04 |
||
|
25
|
25
09401-11425-000 CLIP |
09401-11425-000 |
from US $1.82 |
||
