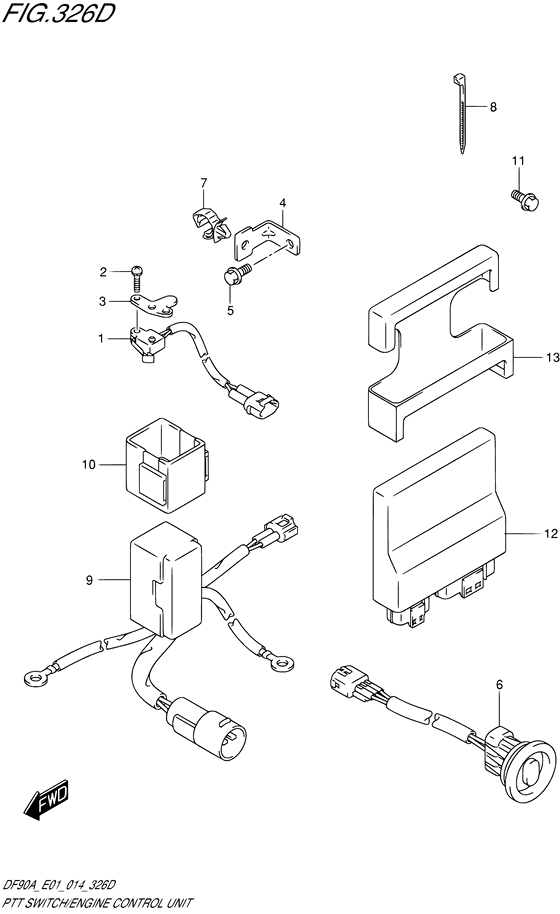

Ptt switch/engine control unit ((DF70ATH E40)) Diagram Suzuki DF90A T(H)L/X
- Year
- 2014
- Model
- DF90A
- Year
- 2014
- Engine
- 09003F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37721-93J00-000 SWITCH ASSY,NEUTRAL |
37721-93J00-000 |
from US $20.80 |
||
|
2
|
2
09137-04004-000 SCREW(4X16) |
09137-04004-000 |
US $1.49 |
||
|
3
|
3
37726-90J10-000 BRACKET,NEUTRAL SWITCH |
37726-90J10-000 |
US $2.13 |
||
|
4
|
4
37726-87L00-000 BRACKET,SWITCH LEAD CLAMP |
37726-87L00-000 |
US $2.80 |
||
|
5
|
5
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
6
|
6
37850-92J00-000 SWITCH ASSY,PTTFROM VIN.410860 |
37850-92J00-000 |
from US $76.77 |
||
|
6
|
6
37850-99E04-000
SWITCH ASSY,PTT
UP TO VIN.410859 |
37850-99E04-000 |
— | ||
| replacement | |||||
|
6
|
6
37850-99E05-000 SWITCH ASSY,PTTUP TO VIN.410859 |
37850-99E05-000 |
from US $80.80 |
||
|
6A
|
6A
37856-92J00-000 TAPE,PTT SWITCHFROM VIN.410860 NOT ILLUSTRATED |
37856-92J00-000 |
US $2.83 |
||
|
6B
|
6B
37857-92J00-000
BUSH,PTT SWITCH
FROM VIN.410860 NOT ILLUSTRATED |
37857-92J00-000 |
— | ||
| replacement | |||||
|
6B
|
6B
37857-92J01-000 Bush,ptt SwitchFROM VIN.410860 NOT ILLUSTRATED |
37857-92J01-000 |
US $2.47 |
||
|
7
|
7
09403-11321-000 CLAMP |
09403-11321-000 |
from US $5.36 |
||
|
8
|
8
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
9
|
9
38410-93J12-000 RELAY ASSY,PTT |
38410-93J12-000 |
from US $108.99 |
||
|
10
|
10
38415-93J00-000 HOLDER,PTT RELAY |
38415-93J00-000 |
US $4.42 |
||
|
11
|
11
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
12
|
12
33930-87LB0-000 UNIT,ENGINE CONTROL |
33930-87LB0-000 |
US $1,534.24 |
||
|
13
|
13
33925-92J00-000 CUSHION,ENGINE CONTROL UNIT |
33925-92J00-000 |
US $6.26 |
||
