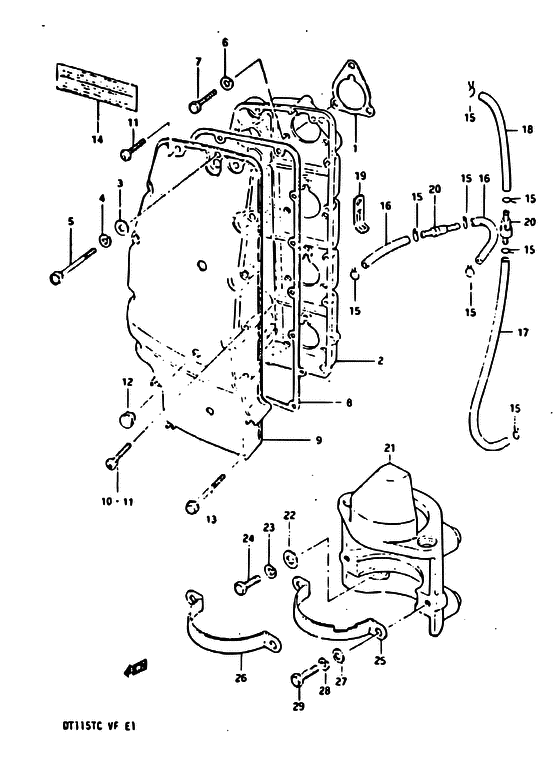

Silencer - motor bracket Diagram Suzuki DT115 L/UL
- Year
- 1984
- Model
- DT115
- Year
- 1984
- Engine
- 11502-404575~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13855-93300-000
Gasket, silencer
|
13855-93300-000 |
— | ||
| replacement | |||||
|
1
|
1
13855-93310-000
GASKET,SILENCER
|
13855-93310-000 |
— | ||
|
2
|
2
13811-94501-000
Case, silencer
~404784 |
13811-94501-000 |
— | ||
| replacements | |||||
|
2
|
2
13811-94611-000 CASE,SILENCER~404784 |
13811-94611-000 |
US $43.79 |
||
|
2
|
2
13812-94601-000
COVER,SILENCER
~404784 |
13812-94601-000 |
— | ||
|
2
|
2
13811-94503-000
Case, silencer
404785~ |
13811-94503-000 |
— | ||
| replacements | |||||
|
2
|
2
13811-94611-000 CASE,SILENCER404785~ |
13811-94611-000 |
US $43.79 |
||
|
2
|
2
13812-94601-000
COVER,SILENCER
404785~ |
13812-94601-000 |
— | ||
|
3
|
3
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
4
|
4
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
5
|
5
01107-06657-000
Bolt 6x675
MODEL VF |
01107-06657-000 |
— | ||
| replacement | |||||
|
5
|
5
09100-06038-000 BOLT(6X65)MODEL VF |
09100-06038-000 |
from US $1.37 |
||
|
5
|
5
09100-06038-000 BOLT(6X65)MODEL QD/VE |
09100-06038-000 |
from US $1.37 |
||
|
6
|
6
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
7
|
7
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
8
|
8
13853-94500-000
Gasket, silencer cover
|
13853-94500-000 |
— | ||
| replacement | |||||
|
8
|
8
13853-94510-000
GASKET,SILENCER COVER
|
13853-94510-000 |
— | ||
|
9
|
9
13812-94503-000
Cover, silencer
MODEL QD/VE |
13812-94503-000 |
— | ||
| replacement | |||||
|
9
|
9
09250-15010-000 PLUG(OD:19)Plug, silencer cover MODEL QD/VE |
09250-15010-000 |
from US $1.60 |
||
|
9
|
9
13812-94504-000
Cover silencer
MODEL VF |
13812-94504-000 |
— | ||
|
10
|
10
02152-05202-000
Screw
|
02152-05202-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-05207-000 SCREWScrew, silencer cover |
02142-05207-000 |
from US $0.80 |
||
|
11
|
11
02152-05352-000
Screw
|
02152-05352-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-15357-000 SCREW |
02112-15357-000 |
US $13.20 |
||
|
12
|
12
09250-10010-000
CAP(OD:15)
MODEL QD/VE |
09250-10010-000 |
— | ||
| replacement | |||||
|
12
|
12
09250-10030-000 Cap(Od:15)MODEL QD/VE |
09250-10030-000 |
from US $1.12 |
||
|
12
|
12
09250-15010-000 PLUG(OD:19)Plug, silencer cover MODEL VF |
09250-15010-000 |
from US $1.60 |
||
|
13
|
13
01514-05452-000
Bolt
|
01514-05452-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-05457-000 BOLT |
01550-05457-000 |
from US $0.91 |
||
|
14
|
14
61458-95204-000 MARK,SAFETY WARNINGMark, safety warning MODEL QD |
61458-95204-000 |
US $2.17 |
||
|
15
|
15
09401-06403-000
Clip
|
09401-06403-000 |
— | ||
| replacement | |||||
|
15
|
15
09401-06101-000 CLIP |
09401-06101-000 |
from US $1.12 |
||
|
16
|
16
09343-03051-000
Hose, inspection (l:330@r180)
MODEL QD |
09343-03051-000 |
— | ||
| replacements | |||||
|
16
|
16
09355-30705-600
HOSE(3X7X600)
MODEL QD |
09355-30705-600 |
— | ||
|
16
|
16
09355-30001-600 Hose (7.4X3.2X135)MODEL QD |
09355-30001-600 |
from US $5.17 |
||
|
17
|
17
09343-03039-000
Hose, lubrication
MODEL VE/VF, L:400 |
09343-03039-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-30705-600
HOSE(3X7X600)
MODEL VE/VF, L:400 |
09355-30705-600 |
— | ||
|
17
|
17
09355-30001-600 Hose (7.4X3.2X135)MODEL VE/VF, L:400 |
09355-30001-600 |
from US $5.17 |
||
|
18
|
18
09343-03051-000
Hose, inspection (l:330@r180)
MODEL VE/VF, L:330@r120 |
09343-03051-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-30705-600
HOSE(3X7X600)
MODEL VE/VF, L:330@r120 |
09355-30705-600 |
— | ||
|
18
|
18
09355-30001-600 Hose (7.4X3.2X135)MODEL VE/VF, L:330@r120 |
09355-30001-600 |
from US $5.17 |
||
|
19
|
19
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
20
|
20
16710-95200-000
Check valve
|
16710-95200-000 |
— | ||
| replacement | |||||
|
20
|
20
16710-95211-000 VALVE,CHECK |
16710-95211-000 |
US $12.66 |
||
|
21
|
21
31911-94514-02M
Bracket, motor
|
31911-94514-02M |
— | ||
|
22
|
22
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
23
|
23
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
24
|
24
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
25
|
25
31912-94511-000
Band,starting m
MODEL QD/VE |
31912-94511-000 |
— | ||
|
26
|
26
31912-94600-000
BAND
MODEL VF |
31912-94600-000 |
— | ||
|
27
|
27
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
27
|
27
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
28
|
28
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
29
|
29
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
29
|
29
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
