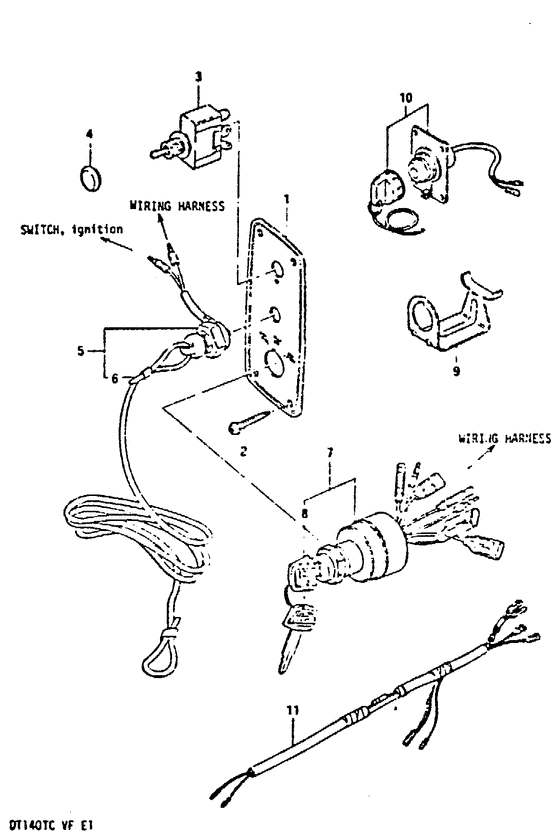

Ignition switch (Optional;) Diagram Suzuki DT140 L/UL
- Year
- 1984
- Model
- DT140
- Year
- 1984
- Engine
- 14002-405082~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 140
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37852-95550-000
Plate, toggle switch
|
37852-95550-000 |
— | ||
|
2
|
2
03112-05129-000
Screw
|
03112-05129-000 |
— | ||
| replacement | |||||
|
2
|
2
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
3
|
3
37851-95250-000
Trim tilt sw. a
|
37851-95250-000 |
— | ||
|
4
|
4
37101-93310-000
Cap, panel assy
|
37101-93310-000 |
— | ||
| replacements | |||||
|
4
|
4
09250-12006-000
CAP(OD:20)
|
09250-12006-000 |
— | ||
|
4
|
4
09250-12016-000 Cap(Od:20) |
09250-12016-000 |
from US $1.52 |
||
|
5
|
5
37820-95353-000
Switch assy, emargency
|
37820-95353-000 |
— | ||
| replacements | |||||
|
5
|
5
37820-92E04-000
SWITCH ASSY,EMERGENCY
|
37820-92E04-000 |
— | ||
|
5
|
5
37820-92E05-000 Switch Assy,emergency |
37820-92E05-000 |
from US $48 |
||
|
6
|
6
37823-95251-000
CAP,EMERGENCY SWITCH
Cover & rope; |
37823-95251-000 |
— | ||
|
7
|
7
37110-94301-000
Switch, ignition
|
37110-94301-000 |
— | ||
| replacement | |||||
|
7
|
7
37110-95551-000
SWITCH ASSY,IGNITION
|
37110-95551-000 |
— | ||
|
8
|
8
37141-93300-000
KEY,SPARE(8511)
Key, spare (8511); |
37141-93300-000 |
— | ||
|
8
|
8
37141-93310-000
KEY,SPARE(8512)
Key, spare (8512); |
37141-93310-000 |
— | ||
|
8
|
8
37141-93320-000
KEY,SPARE(8513)
Key, spare (8513); |
37141-93320-000 |
— | ||
|
8
|
8
37141-93330-000
KEY,SPARE(8611)
Key, spare (8611); |
37141-93330-000 |
— | ||
|
8
|
8
37141-93340-000
KEY,SPARE(8612)
Key, spare (8612); |
37141-93340-000 |
— | ||
|
8
|
8
37141-93350-000
KEY,SPARE(8613)
Key, spare (8613); |
37141-93350-000 |
— | ||
|
9
|
9
37150-93350-000
Holder
|
37150-93350-000 |
— | ||
|
10
|
10
34108-94500-000
Switch assy, meter light
|
34108-94500-000 |
— | ||
|
11
|
11
34109-94500-000
LEAD,METER EXTENSION(L:1600)
Lead, meter extension; |
34109-94500-000 |
— | ||
