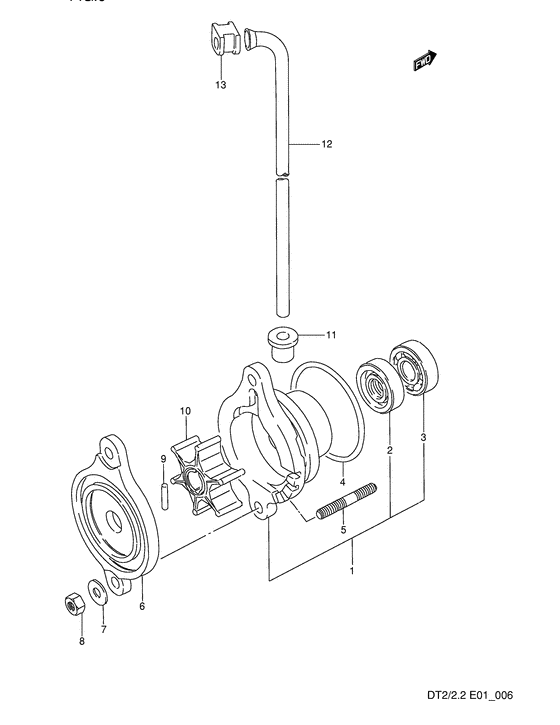

Water pump Diagram Suzuki DT2 S/L
- Year
- 1994
- Model
- DT2
- Year
- 1994
- Engine
- 0201-461001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- General Export No.1
- Colour
- Серый (California Gray Metallic) (0ED)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-98403-0ED
CASE,WATER PUMP
|
17410-98403-0ED |
— | ||
|
2
|
2
09289-10005-000 SEAL,OIL(10X26X9)Oil seal (10x26x8) Oil seal (10x26x8); |
09289-10005-000 |
from US $13.68 |
||
|
3
|
3
09262-10015-000 BEARING(10X26X8)Bearing |
09262-10015-000 |
from US $7.30 |
||
|
4
|
4
09280-48002-000 O RING(D:2.6,ID:47.4)O ring (id:47.4,d:2.6); |
09280-48002-000 |
from US $3.35 |
||
|
5
|
5
09108-06063-000 BOLT,STUDStud bolt (6x20) Stud bolt (6x12); |
09108-06063-000 |
US $28.70 |
||
|
6
|
6
17471-98400-0ED
COVER,PUMP CASE
|
17471-98400-0ED |
— | ||
|
7
|
7
09160-06082-000 WASHER(6.5X13X1.0)Washer (6.5x13x1); |
09160-06082-000 |
from US $0.96 |
||
|
8
|
8
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
9
|
9
09202-02006-000 PIN(2.9X14)Pin, pump case impeller Pin (2.9x14); |
09202-02006-000 |
from US $1.66 |
||
|
10
|
10
17461-98502-000
Impeller,water
Impeller, water pump; |
17461-98502-000 |
— | ||
| replacement | |||||
|
10
|
10
17461-985M0-000 IMPELLER,WATER PUMPImpeller, water pump; |
17461-985M0-000 |
from US $17.44 |
||
|
11
|
11
09320-06022-000
BUSH
|
09320-06022-000 |
— | ||
| replacement | |||||
|
11
|
11
09320-06028-000 Bush |
09320-06028-000 |
US $1.82 |
||
|
12
|
12
17561-98402-000 TUBE,WATERTube, water (l:515); |
17561-98402-000 |
US $15.01 |
||
|
13
|
13
09309-06005-000 GROMMET |
09309-06005-000 |
US $1.52 |
||
