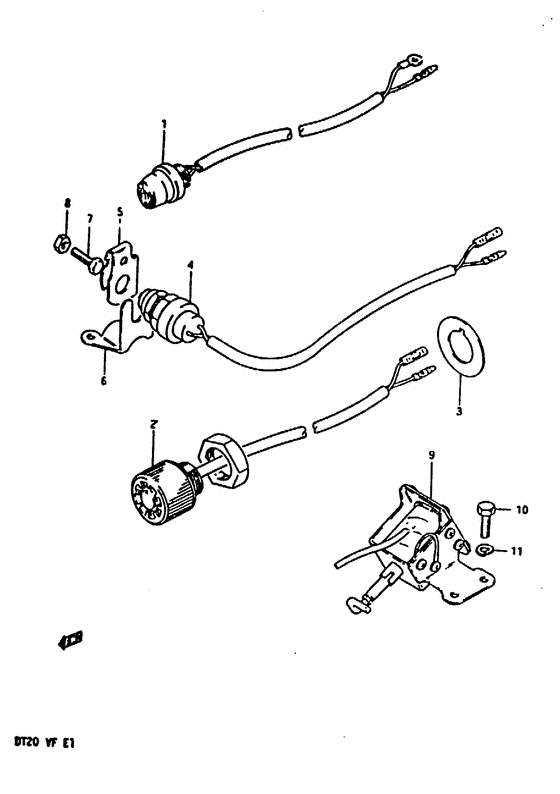

Electrical (Electric starter) Diagram Suzuki DT20 S/L
- Year
- 1984
- Model
- DT20
- Year
- 1984
- Engine
- 02003-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37800-96350-000
Switch, stop
|
37800-96350-000 |
— | ||
| replacement | |||||
|
1
|
1
37800-93955-000 SWITCH ASSY,STOP |
37800-93955-000 |
US $18.40 |
||
|
2
|
2
37160-96310-000
Switch, start
|
37160-96310-000 |
— | ||
| replacement | |||||
|
2
|
2
37160-96322-000 SWITCH ASSY,STARTSwitch, start |
37160-96322-000 |
US $28.26 |
||
|
3
|
3
37142-94300-000
Washer, ignition switch
|
37142-94300-000 |
— | ||
| replacement | |||||
|
3
|
3
37142-94302-000
WASHER,IGNITION SWITCH
|
37142-94302-000 |
— | ||
|
4
|
4
37721-96352-000
Switch, neutral
|
37721-96352-000 |
— | ||
| replacement | |||||
|
4
|
4
37721-96354-000 SWITCH ASSY,NEUTRALSwitch assy, neutral |
37721-96354-000 |
US $28.88 |
||
|
5
|
5
37725-95300-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral sw Actuator, neutral switch; |
37725-95300-000 |
US $5.37 |
||
|
6
|
6
37726-96301-000
Bracket, noutral switch
|
37726-96301-000 |
— | ||
| replacement | |||||
|
6
|
6
37726-96303-000 BRACKET,NEUTRAL SWITCH |
37726-96303-000 |
US $3.53 |
||
|
7
|
7
09100-05104-000 BOLT(5X20)Bolt (5x20) |
09100-05104-000 |
US $9.20 |
||
|
8
|
8
09140-05001-000
Nut
|
09140-05001-000 |
— | ||
| replacement | |||||
|
8
|
8
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
9
|
9
38600-96301-000 SOLENOID ASSY,CHOKESolenoid, choke Solenoid, choke; Opt (for remo-con) |
38600-96301-000 |
US $71.76 |
||
|
10
|
10
09100-05004-000
Bolt, exhaust tube (5x12)
Bolt (5x12); |
09100-05004-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-05127-000 BoltBolt (5x12); |
01500-05127-000 |
from US $3.32 |
||
|
11
|
11
09162-05002-000 WASHER,LOCKLock washer Lock washer; |
09162-05002-000 |
from US $0.80 |
||
