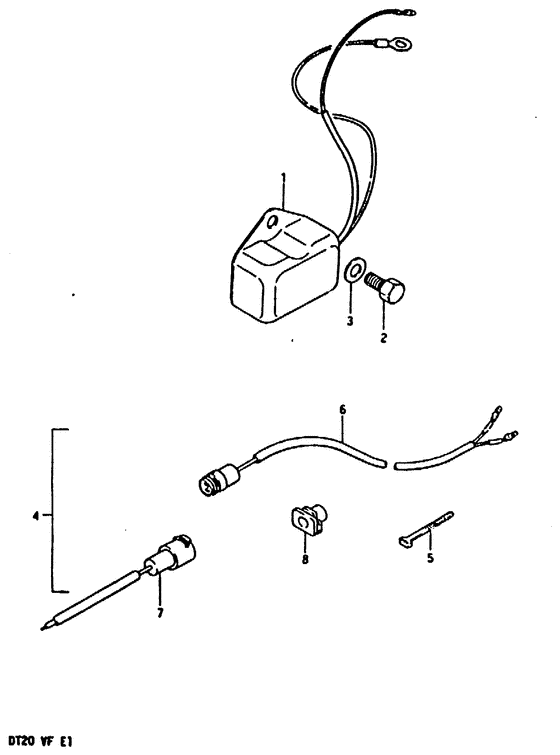

Electrical (Optional; for manual starter) Diagram Suzuki DT20 S/L
- Year
- 1984
- Model
- DT20
- Year
- 1984
- Engine
- 02003-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32500-95721-000
Regulator assy, voltage
|
32500-95721-000 |
— | ||
| replacement | |||||
|
1
|
1
32500-95722-000 REGULATOR ASSY,VOLTAGERegulator assy, voltage |
32500-95722-000 |
US $809.60 |
||
|
2
|
2
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
3
|
3
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
4
|
4
39600-93900-000
Receptacle set
|
39600-93900-000 |
— | ||
| replacements | |||||
|
4
|
4
39600-93910-000 Receptacle set |
39600-93910-000 |
US $45.96 |
||
|
4
|
4
39600-93912-000 Receptacle Set |
39600-93912-000 |
US $53.97 |
||
|
5
|
5
36632-95501-000
Clamp, ptt pipe
|
36632-95501-000 |
— | ||
| replacements | |||||
|
5
|
5
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
5
|
5
09407-20404-000
Clamp
|
09407-20404-000 |
— | ||
|
5
|
5
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
6
|
6
39601-93902-000
Receptacle assy, lighting
|
39601-93902-000 |
— | ||
| replacements | |||||
|
6
|
6
39601-95D00-000
RECEPTACLE
|
39601-95D00-000 |
— | ||
|
6
|
6
39601-95D01-000 Receptacle |
39601-95D01-000 |
US $35.70 |
||
|
7
|
7
39602-93900-000 PLUG ASSY,LAMP CORDPlug, lighting Plug assy, lamp cord; |
39602-93900-000 |
US $38.27 |
||
|
8
|
8
39603-93900-000
GROMMET
|
39603-93900-000 |
— | ||
