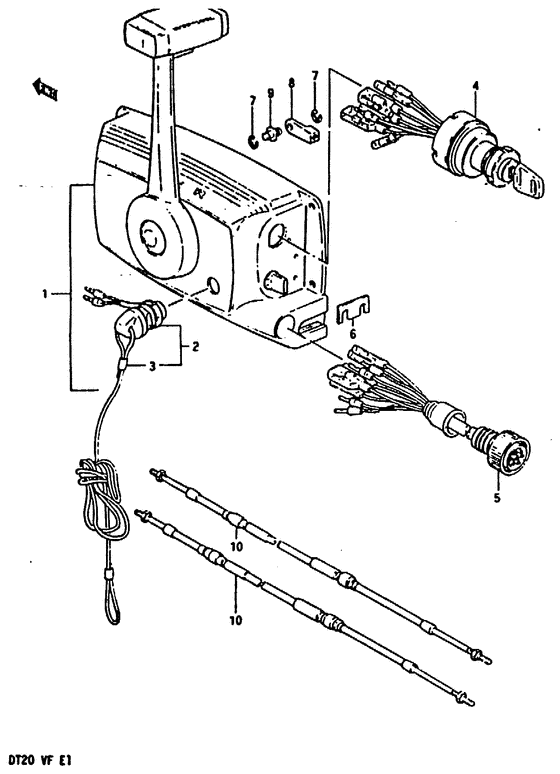

Remote control (Optional;) Diagram Suzuki DT20 S/L
- Year
- 1984
- Model
- DT20
- Year
- 1984
- Engine
- 02003-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-95303-000
Remote control box
|
67200-95303-000 |
— | ||
|
2
|
2
37820-95202-000
Switch, emergnecy
|
37820-95202-000 |
— | ||
| replacements | |||||
|
2
|
2
37820-92E04-000
SWITCH ASSY,EMERGENCY
|
37820-92E04-000 |
— | ||
|
2
|
2
37820-92E05-000 Switch Assy,emergency |
37820-92E05-000 |
from US $48 |
||
|
3
|
3
37823-95251-000
CAP,EMERGENCY SWITCH
|
37823-95251-000 |
— | ||
|
4
|
4
37110-95351-000
Switch assy, ignition
|
37110-95351-000 |
— | ||
| replacement | |||||
|
4
|
4
37110-95551-000
SWITCH ASSY,IGNITION
|
37110-95551-000 |
— | ||
|
5
|
5
36630-95302-000
Connector, wiring harness
|
36630-95302-000 |
— | ||
|
6
|
6
67272-95300-000
Remote cable ho
|
67272-95300-000 |
— | ||
|
7
|
7
67268-95300-000
E ring
|
67268-95300-000 |
— | ||
|
8
|
8
67271-95300-000
IEND,CONTROL CABLE
|
67271-95300-000 |
— | ||
|
9
|
9
67274-95300-000
Control eyeend
|
67274-95300-000 |
— | ||
|
10
|
10
67320-95750-000
Cable, control
Cable, clutch (l:2500); |
67320-95750-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M)Cable, clutch (l:2500); |
67320-93J10-000 |
from US $56.81 |
||
|
10
|
10
67320-95740-000
Cable, control
Cable, clutch (l:3000); |
67320-95740-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M)Cable, clutch (l:3000); |
67320-93J10-000 |
from US $56.81 |
||
|
10
|
10
67320-95730-000
Cable, control
Cable, clutch (l:3500); |
67320-95730-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M)Cable, clutch (l:3500); |
67320-93J20-000 |
from US $52.99 |
||
|
10
|
10
67320-95720-000
Cable, control
Cable, clutch (l:4000); |
67320-95720-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M)Cable, clutch (l:4000); |
67320-93J30-000 |
from US $66.67 |
||
|
10
|
10
67320-95710-000
Cable, control
Cable, clutch (l:4500); |
67320-95710-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M)Cable, clutch (l:4500); |
67320-93J40-000 |
from US $61.46 |
||
|
10
|
10
67320-95200-000
Cable, control
Cable, clutch (l:5000); |
67320-95200-000 |
— | ||
| replacement | |||||
|
10
|
10
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M)Cable, clutch (l:5000); |
67320-93J50-000 |
from US $65.87 |
||
