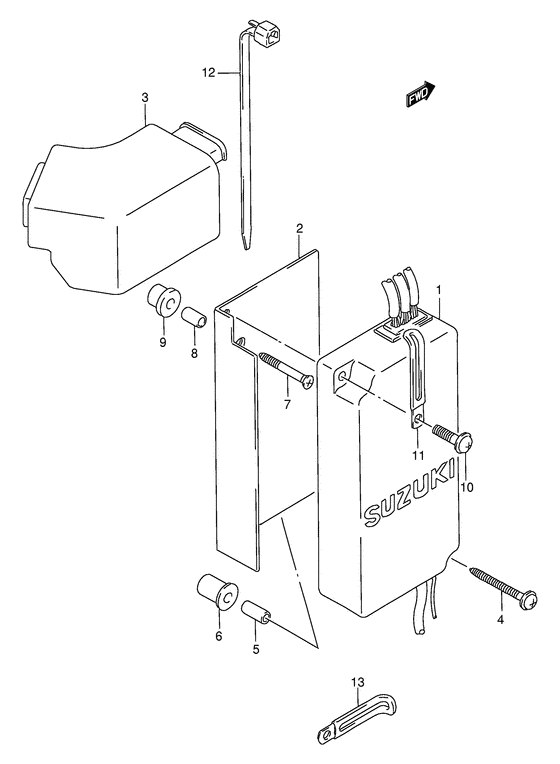

Ignition control (Model: 89, 90) Diagram Suzuki DT200 L/UL
- Year
- 2000
- Model
- DT200
- Year
- 2000
- Engine
- 20002-030001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32910-87D30-000
UNIT,IGNITION CONTROL
|
32910-87D30-000 |
— | ||
|
1
|
1
32910-87D40-000
UNIT,IGNITION CONTROL
Dt200s, |
32910-87D40-000 |
— | ||
|
2
|
2
32915-87D00-000
Holder,ign cont
|
32915-87D00-000 |
— | ||
|
3
|
3
32918-87D00-000
Cover, control unit
|
32918-87D00-000 |
— | ||
|
4
|
4
09132-05040-000
Screw,l: 50
Screw, parts holder no.1; |
09132-05040-000 |
— | ||
|
5
|
5
09180-05031-000
Spacer 5.5x7.5x
Spacer, ignition control; |
09180-05031-000 |
— | ||
|
6
|
6
09320-07010-000
CUSHION
Cushion, ignition control; |
09320-07010-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-07019-000 CushionCushion, ignition control; |
09320-07019-000 |
from US $6.10 |
||
|
7
|
7
03222-05355-000
SCREW
Screw, parts holder; |
03222-05355-000 |
— | ||
| replacement | |||||
|
7
|
7
03222-0535B-000 ScrewScrew, parts holder; |
03222-0535B-000 |
US $14.40 |
||
|
8
|
8
09180-05036-000
Spacer
|
09180-05036-000 |
— | ||
|
9
|
9
09320-07011-000
Cushion
|
09320-07011-000 |
— | ||
|
10
|
10
02112-16203-000
Screw
|
02112-16203-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-1620B-000 SCREW |
02112-1620B-000 |
from US $0.96 |
||
|
11
|
11
09404-06432-000
CLAMP(L:65)
Clamp, connector cover; |
09404-06432-000 |
— | ||
| replacement | |||||
|
11
|
11
09404-06039-000 Clamp(L:65)Clamp, connector cover; |
09404-06039-000 |
from US $1.82 |
||
|
12
|
12
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp, connector; |
09407-18402-000 |
from US $0.77 |
||
|
13
|
13
09404-06432-000
CLAMP(L:65)
Clamp, ignition cont lead; |
09404-06432-000 |
— | ||
| replacement | |||||
|
13
|
13
09404-06039-000 Clamp(L:65)Clamp, ignition cont lead; |
09404-06039-000 |
from US $1.82 |
||
