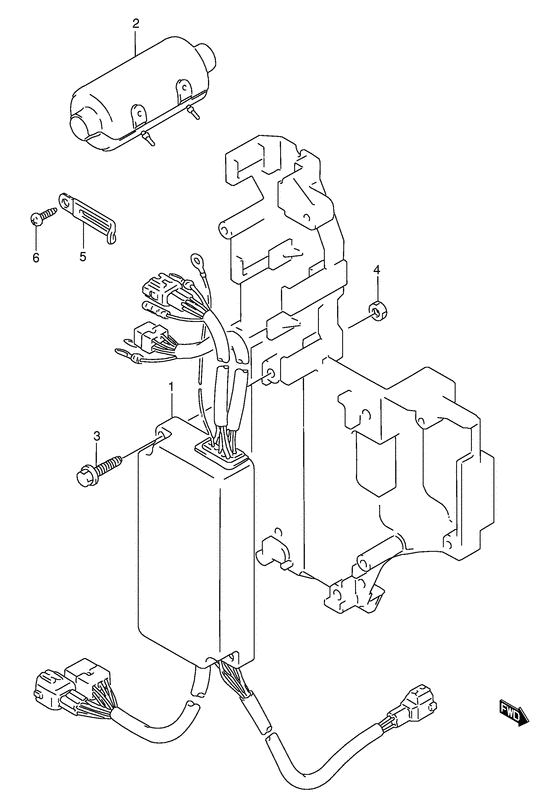

Ignition control (Model: 91~00)(*) Diagram Suzuki DT200 L/UL
- Year
- 2000
- Model
- DT200
- Year
- 2000
- Engine
- 20002-030001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32910-88D00-000
UNIT,IGNITION CONTROL
Dt150,150g,175,200,200g, |
32910-88D00-000 |
— | ||
|
1
|
1
32910-88D30-000
Unit,ignition c
Dt200epi,model:94, type:l |
32910-88D30-000 |
— | ||
| replacement | |||||
|
1
|
1
32910-88D41-000 UNIT,IGNITION CONTROLUnit, ignition control Dt200epi,model:94, type:l |
32910-88D41-000 |
US $1,197.12 |
||
|
1
|
1
32910-88D41-000 UNIT,IGNITION CONTROLUnit, ignition control Dt200epi,model:94~97, type:ul |
32910-88D41-000 |
US $1,197.12 |
||
|
1
|
1
32910-87D70-000
Unit,ignition c
Dt150s,200s,200sg, |
32910-87D70-000 |
— | ||
|
1
|
1
32910-92E20-000 UNIT,IGNITION CONTROLUnit, ignition control Dt225, |
32910-92E20-000 |
US $1,168.64 |
||
|
1
|
1
32910-88D10-000
Unit, ignition control
Dt200t,model:91~00 |
32910-88D10-000 |
— | ||
|
2
|
2
36618-30610-000 BOOT,WIRING HARNESSCover, harness connector |
36618-30610-000 |
from US $10.13 |
||
|
3
|
3
01550-06253-000
Bolt (6x25)
Bolt, ign control unit; |
01550-06253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0625B-000 BoltBolt, head cover Bolt, ign control unit; |
01550-0625B-000 |
from US $0.91 |
||
|
3
|
3
01550-0625A-000 BoltBolt Bolt, ign control unit; |
01550-0625A-000 |
from US $0.96 |
||
|
4
|
4
08310-00063-000
Nut
Nut, ign control unit; |
08310-00063-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod Nut, ign control unit; |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUTNut, ign control unit; |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
09404-06432-000
CLAMP(L:65)
Clamp, unit lead; |
09404-06432-000 |
— | ||
| replacement | |||||
|
5
|
5
09404-06039-000 Clamp(L:65)Clamp, unit lead; |
09404-06039-000 |
from US $1.82 |
||
|
6
|
6
03212-05163-000
Screw
Screw, unit lead clamp; |
03212-05163-000 |
— | ||
| replacements | |||||
|
6
|
6
03212-0516B-000
SCREW
Screw, unit lead clamp; |
03212-0516B-000 |
— | ||
|
6
|
6
13765-48GV0-000 ScrewScrew, unit lead clamp; |
13765-48GV0-000 |
from US $3.55 |
||
