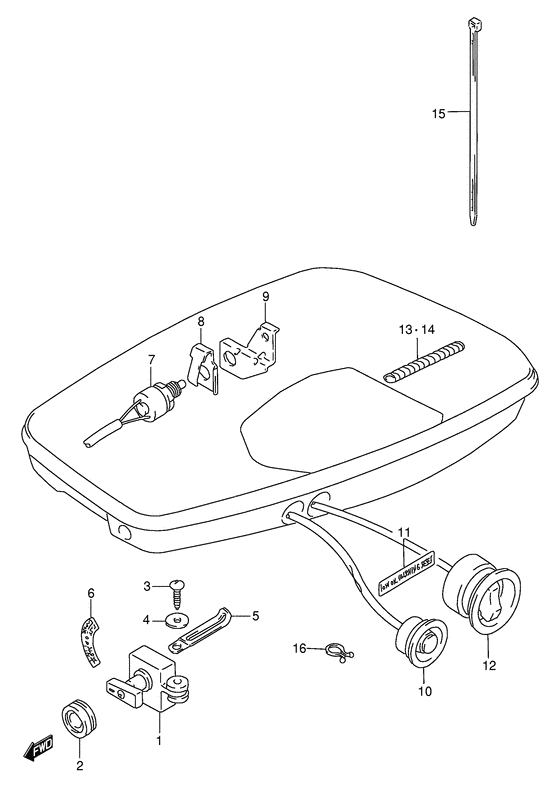

Switch Diagram Suzuki DT200 L/UL
- Year
- 2000
- Model
- DT200
- Year
- 2000
- Engine
- 20002-030001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37920-95D00-000
Switch assy,ign
Switch assy, ignition; Model:89,90 |
37920-95D00-000 |
— | ||
|
2
|
2
37925-95D00-000
Cushion,ign itm
Cushion, ignition timing; |
37925-95D00-000 |
— | ||
|
3
|
3
03212-05253-000
Tapping screw
Screw, ignition; |
03212-05253-000 |
— | ||
| replacement | |||||
|
3
|
3
03212-0525B-000 SCREWScrew, ignition; |
03212-0525B-000 |
US $0.80 |
||
|
4
|
4
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 Washer, ignition; |
09160-05043-000 |
from US $0.91 |
||
|
5
|
5
09404-06432-000
CLAMP(L:65)
Clamp, ignition; |
09404-06432-000 |
— | ||
| replacement | |||||
|
5
|
5
09404-06039-000 Clamp(L:65)Clamp, ignition; |
09404-06039-000 |
from US $1.82 |
||
|
6
|
6
61512-95600-064
MARK,IGNITION TIMING SW
Mark, ignition timing; |
61512-95600-064 |
— | ||
|
7
|
7
37721-87D02-000
Switch assy,rev
Switch, neutral; Model:89,90, |
37721-87D02-000 |
— | ||
| replacement | |||||
|
7
|
7
37721-87D03-000 SWITCH ASSY,NEUTRALSwitch, neutral; Model:89,90, |
37721-87D03-000 |
US $36.43 |
||
|
8
|
8
37725-95300-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral sw Actuator, neutral switch; Model:89,90 |
37725-95300-000 |
US $5.37 |
||
|
10
|
10
37930-95612-000
SWITCH ASSY,OIL WARNING RESET
|
37930-95612-000 |
— | ||
|
11
|
11
37935-95601-000
Label low oll w
|
37935-95601-000 |
— | ||
| replacement | |||||
|
11
|
11
37935-95602-000
LABEL,LOW OIL WARNING RESET SW
|
37935-95602-000 |
— | ||
|
12
|
12
37850-95602-000
Switch,tilt
Switch, tilt; |
37850-95602-000 |
— | ||
| replacement | |||||
|
12
|
12
37850-95612-000 SWITCH ASSY,PTTSwitch, tilt; |
37850-95612-000 |
US $112.61 |
||
|
13
|
13
38423-95510-000
Tube,150
Tube, tilt switch; L:150->0 |
38423-95510-000 |
— | ||
| replacement | |||||
|
13
|
13
33833-91J00-000 TUBE,SWITCH LEAD(L:250)Tube, tilt switch; L:150->0 |
33833-91J00-000 |
US $4.64 |
||
|
14
|
14
38423-95510-000
Tube,150
Tube, tilt switch (l:150); L:150->00 |
38423-95510-000 |
— | ||
| replacement | |||||
|
14
|
14
33833-91J00-000 TUBE,SWITCH LEAD(L:250)Tube, tilt switch (l:150); L:150->00 |
33833-91J00-000 |
US $4.64 |
||
|
15
|
15
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp, tilt switch; |
09407-25402-000 |
from US $2.24 |
||
|
16
|
16
09408-00021-000 CLIP(ID:16)Clip, oil warning reset sw Clip, reset sw; |
09408-00021-000 |
US $9.20 |
||
