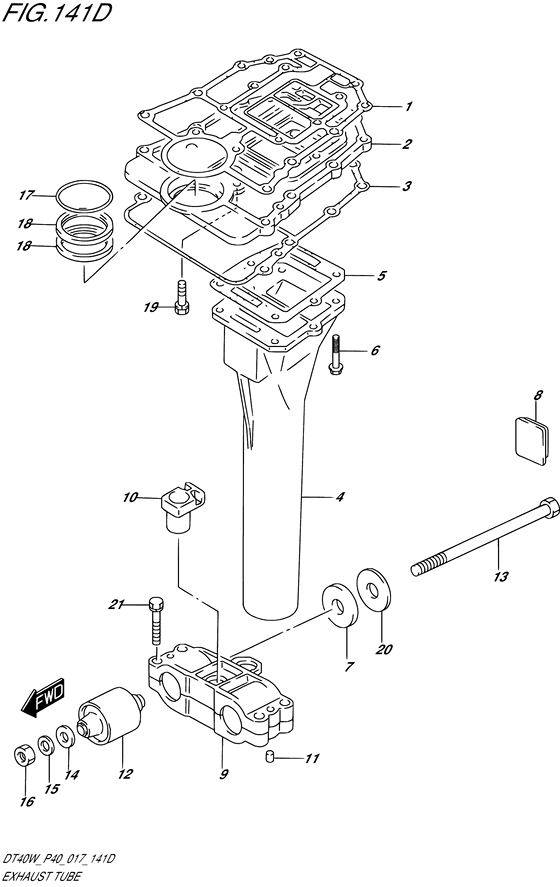

Exhaust tube ((DT40WR P90)) Diagram Suzuki DT40 WS/L/L2; WRS/L/L2; WKS/L/L2; WKRS/L/L2
- Year
- 2017
- Model
- DT40
- Year
- 2017
- Engine
- 04005-710001~ (04005K-710001~)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Region Code
- P40/P90
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11433-92L00-000
Gasket,under oil seal hsg
|
11433-92L00-000 |
— | ||
| replacement | |||||
|
1
|
1
11433-94412-000 GASKET,UNDER OIL SEAL HSG |
11433-94412-000 |
US $22.40 |
||
|
2
|
2
11431-92L00-000 HOUSING,UNDER OIL SEAL |
11431-92L00-000 |
US $66.98 |
||
|
3
|
3
11434-92L00-000
Gasket,under oil seal hsg lwr
|
11434-92L00-000 |
— | ||
| replacement | |||||
|
3
|
3
11434-94411-000 GSKT,UNDER OIL SEAL HSG LWRGasket, under oil seal lower |
11434-94411-000 |
US $20.80 |
||
|
4
|
4
14211-92L20-000 TUBE,EXHAUST(TRANSOM L2)W/TRANSOM(L2) |
14211-92L20-000 |
US $82.43 |
||
|
4
|
4
14211-94451-000 TUBE,EXHAUSTTube, exhaust (s/l) W/TRANSOM(S) W/TRANSOM(L) |
14211-94451-000 |
US $82.43 |
||
|
5
|
5
14212-94413-000 GASKET,EXHAUST TUBE |
14212-94413-000 |
US $3.04 |
||
|
6
|
6
09116-06234-000 BOLT(6X35) |
09116-06234-000 |
US $2.29 |
||
|
7
|
7
54121-94401-000
STOPPER,UPR THRUST
|
54121-94401-000 |
— | ||
| replacement | |||||
|
7
|
7
54121-94402-000 STOPPER,UPPER THRUST |
54121-94402-000 |
US $3.68 |
||
|
8
|
8
54125-94400-000 MOUNT,UPR THRUST REVERSEMount, upper thrust reverse |
54125-94400-000 |
US $4.75 |
||
|
9
|
9
54137-92L10-000 CASE,UPR MOUNT |
54137-92L10-000 |
US $47.84 |
||
|
10
|
10
54146-94400-000 GUIDE,UPR MOUNT CASEGuide, upper mount case |
54146-94400-000 |
US $2.59 |
||
|
11
|
11
09202-07001-000
PIN(7X10)
|
09202-07001-000 |
— | ||
| replacement | |||||
|
11
|
11
09202-07006-000 Pin(7X10) |
09202-07006-000 |
US $11.80 |
||
|
12
|
12
54130-92L00-000 MOUNT,UPR |
54130-92L00-000 |
US $51.15 |
||
|
13
|
13
09100-10321-000 BOLT(10X150) |
09100-10321-000 |
US $108.20 |
||
|
14
|
14
09160-10148-000 WASHER(10X20X3)Washer, clutch shaft |
09160-10148-000 |
from US $3.04 |
||
|
15
|
15
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
16
|
16
09159-10050-000 NUT |
09159-10050-000 |
US $5.63 |
||
|
17
|
17
09280-50008-000 O RING(D:3.1,ID:49.4)O ring (id:49.4,od:3.10) |
09280-50008-000 |
from US $2.24 |
||
|
18
|
18
09282-17009-000 SEAL,OIL(17X28X6)Oil seal (17x28x6) |
09282-17009-000 |
from US $6.99 |
||
|
19
|
19
09116-06228-000 BOLT(6X20) |
09116-06228-000 |
from US $7.48 |
||
|
20
|
20
09160-10080-000 WASHER(10.2X44X3)Washer (10x44x3) |
09160-10080-000 |
US $29.80 |
||
|
21
|
21
09116-08155-000 BOLT(8X45) |
09116-08155-000 |
US $33.50 |
||
