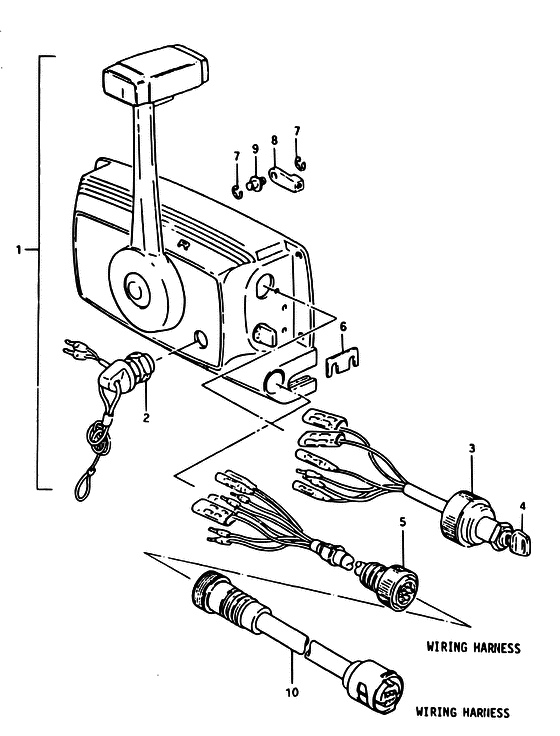

Remote control ((1)) Diagram Suzuki DT50 S/L/LL/UL
- Year
- 1980
- Model
- DT50
- Year
- 1980
- Engine
- 5001-001001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Colour
- Francois Whte №2 Arctic Silver (01T/02M)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-95302-000
Remote control box
T.S.K MODEL TG TO 67200-95303 |
67200-95302-000 |
— | ||
|
1
|
1
67200-95303-000
Remote control box
T.S.K MODEL TG |
67200-95303-000 |
— | ||
|
2
|
2
37820-95200-000
Switch assy, emergency
|
37820-95200-000 |
— | ||
| replacements | |||||
|
2
|
2
37820-92E04-000
SWITCH ASSY,EMERGENCY
|
37820-92E04-000 |
— | ||
|
2
|
2
37820-92E05-000 Switch Assy,emergency |
37820-92E05-000 |
from US $48 |
||
|
2
|
2
37820-95201-000
Switch assy, emergency
FROM 37820-95200 |
37820-95201-000 |
— | ||
| replacements | |||||
|
2
|
2
37820-92E04-000
SWITCH ASSY,EMERGENCY
FROM 37820-95200 |
37820-92E04-000 |
— | ||
|
2
|
2
37820-92E05-000 Switch Assy,emergencyFROM 37820-95200 |
37820-92E05-000 |
from US $48 |
||
|
3
|
3
37110-95351-000
Switch assy, ignition
FROM 37110-95350 |
37110-95351-000 |
— | ||
| replacement | |||||
|
3
|
3
37110-95551-000
SWITCH ASSY,IGNITION
FROM 37110-95350 |
37110-95551-000 |
— | ||
|
4
|
4
37141-93300-000
KEY,SPARE(8511)
OPT |
37141-93300-000 |
— | ||
|
4
|
4
37141-93310-000
KEY,SPARE(8512)
OPT |
37141-93310-000 |
— | ||
|
4
|
4
37141-93320-000
KEY,SPARE(8513)
OPT |
37141-93320-000 |
— | ||
|
4
|
4
37141-93330-000
KEY,SPARE(8611)
OPT |
37141-93330-000 |
— | ||
|
4
|
4
37141-93340-000
KEY,SPARE(8612)
OPT |
37141-93340-000 |
— | ||
|
4
|
4
37141-93350-000
KEY,SPARE(8613)
OPT |
37141-93350-000 |
— | ||
|
5
|
5
36630-95302-000
Connector, wiring harness
|
36630-95302-000 |
— | ||
|
6
|
6
67272-95300-000
Remote cable ho
|
67272-95300-000 |
— | ||
|
7
|
7
67268-95300-000
E ring
|
67268-95300-000 |
— | ||
|
8
|
8
67271-95300-000
IEND,CONTROL CABLE
|
67271-95300-000 |
— | ||
|
9
|
9
67274-95300-000
Control eyeend
|
67274-95300-000 |
— | ||
