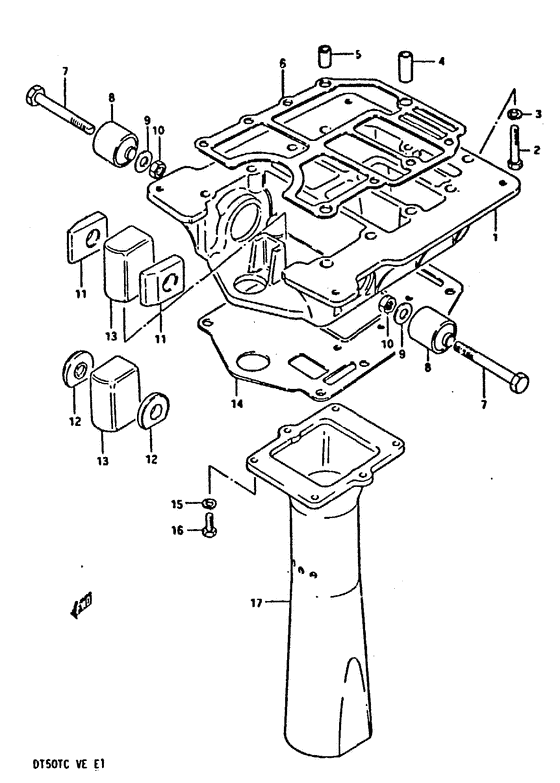

Engine holder Diagram Suzuki DT50(C)VE S/L/LL/UL
- Year
- 1984
- Model
- DT50(C)VE
- Year
- 1984
- Engine
- 05003-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General Export No.1 (P01)
- Colour
- Francois Whte №2 Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51111-95205-02M
Holder, engine
|
51111-95205-02M |
— | ||
|
2
|
2
09100-08224-000
Bolt
Bolt (8*35); |
09100-08224-000 |
— | ||
| replacement | |||||
|
2
|
2
09100-08224-XC0 BOLT(8X35)Bolt (8*35); |
09100-08224-XC0 |
from US $1.60 |
||
|
3
|
3
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
3
|
3
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
4
|
4
09206-11005-000
Dowel pin (od:11, l:20)
|
09206-11005-000 |
— | ||
| replacement | |||||
|
4
|
4
09206-11017-000 PIN(8.4X11X20)Pin (8.4x11x20) |
09206-11017-000 |
from US $2.40 |
||
|
5
|
5
09205-11001-000 Dowel pin, gear case |
09205-11001-000 |
US $5.18 |
||
| replacement | |||||
|
5
|
5
09206-11004-000 PIN(8.4X11X14)Pin, gear case no.2 |
09206-11004-000 |
from US $5.17 |
||
|
6
|
6
51211-95203-000
Gasket, engine holder
|
51211-95203-000 |
— | ||
| replacement | |||||
|
6
|
6
51211-95260-000
GASKET,ENGINE HOLDER
|
51211-95260-000 |
— | ||
|
7
|
7
09100-10208-000 BOLT(10X70) |
09100-10208-000 |
US $10.52 |
||
|
8
|
8
54130-95201-000
Mount, upper
S/l type |
54130-95201-000 |
— | ||
| replacement | |||||
|
8
|
8
54130-95500-000
MOUNTING,UPR
S/l type |
54130-95500-000 |
— | ||
|
8
|
8
54130-95500-000
MOUNTING,UPR
Ll/ul type |
54130-95500-000 |
— | ||
|
9
|
9
09160-10082-000 WASHER(10.5X19X2)Washer Washer (10.5*19*2); |
09160-10082-000 |
from US $0.96 |
||
|
10
|
10
09140-10031-000 NUT |
09140-10031-000 |
from US $1.49 |
||
|
11
|
11
54136-95200-000
STOPPER,UPR MOUNT
S/l type |
54136-95200-000 |
— | ||
|
12
|
12
54136-95501-000
Mount stopper
Ll/ul type |
54136-95501-000 |
— | ||
|
13
|
13
54135-95200-000
MOUNTING,UPR THRUST
|
54135-95200-000 |
— | ||
|
14
|
14
52113-95300-000
Gasket
|
52113-95300-000 |
— | ||
| replacement | |||||
|
14
|
14
52113-95360-000
Gasket,drive shaft housing
|
52113-95360-000 |
— | ||
|
15
|
15
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
15
|
15
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
16
|
16
09100-06020-000
Bolt (6x20)
|
09100-06020-000 |
— | ||
| replacement | |||||
|
16
|
16
09100-06122-000
BOLT(6X20)
|
09100-06122-000 |
— | ||
|
17
|
17
14211-95342-000
Tube, exhaust
L/ll/ul type |
14211-95342-000 |
— | ||
| replacement | |||||
|
17
|
17
14211-95362-000
TUBE,EXHAUST
L/ll/ul type |
14211-95362-000 |
— | ||
|
17
|
17
14211-95351-000
Tube, exhaust
S type |
14211-95351-000 |
— | ||
|
17
|
17
52111-95212-02M
Housing, driveshaft
L type |
52111-95212-02M |
— | ||
