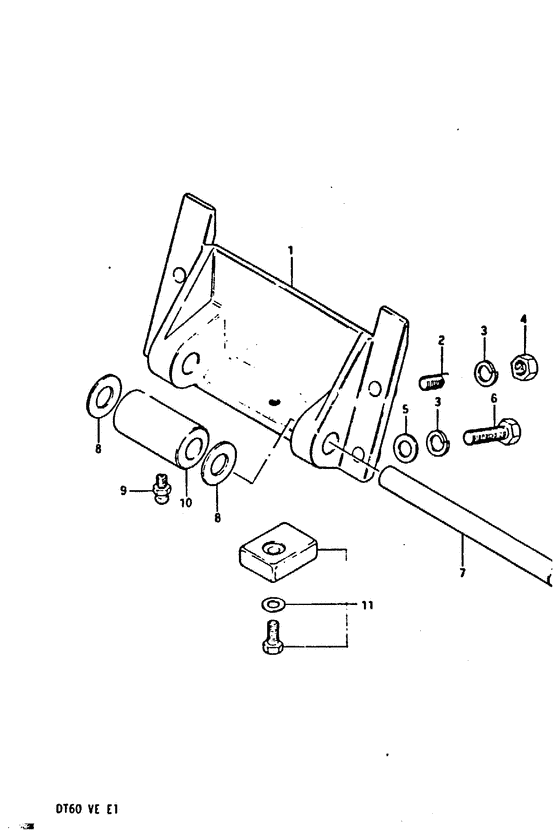

Cylinder support Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48111-95201-02M
Bracket, oil cylinder support
|
48111-95201-02M |
— | ||
|
2
|
2
09108-10035-000
Stud bolt
|
09108-10035-000 |
— | ||
| replacement | |||||
|
2
|
2
09108-10061-000 BOLT,STUD |
09108-10061-000 |
from US $9.93 |
||
|
3
|
3
09162-10002-000
Lock washer
|
09162-10002-000 |
— | ||
| replacement | |||||
|
3
|
3
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
4
|
4
09140-10015-000
Nut
|
09140-10015-000 |
— | ||
| replacement | |||||
|
4
|
4
09140-10031-000 NUT |
09140-10031-000 |
from US $1.49 |
||
|
5
|
5
09160-10040-000
Washer
|
09160-10040-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
6
|
6
09100-10123-000
Bolt
|
09100-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
09100-10220-000 BOLT(10X35)Bolt (10x35) |
09100-10220-000 |
US $79.10 |
||
|
7
|
7
48121-95200-000
Shaft, oil cyli
|
48121-95200-000 |
— | ||
|
8
|
8
09160-15026-000
Washer (15x30x2)
|
09160-15026-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-15036-000
Washer
|
09160-15036-000 |
— | ||
|
9
|
9
22511-99000-000
Grease nipple
|
22511-99000-000 |
— | ||
| replacement | |||||
|
9
|
9
22511-99011-000 NIPPLE,GREASE |
22511-99011-000 |
from US $2.29 |
||
|
10
|
10
48163-95200-02M
Spacer, oil cylinder
|
48163-95200-02M |
— | ||
| replacement | |||||
|
10
|
10
48163-9520V-0ED
SPACER,OIL CYLINDER
|
48163-9520V-0ED |
— | ||
|
11
|
11
55320-95310-000
Zinc set
Zinc, protection; |
55320-95310-000 |
— | ||
| replacement | |||||
|
11
|
11
55320-95311-000 ZINC SET,PROTECTIONZinc, protection; |
55320-95311-000 |
from US $14.78 |
||
