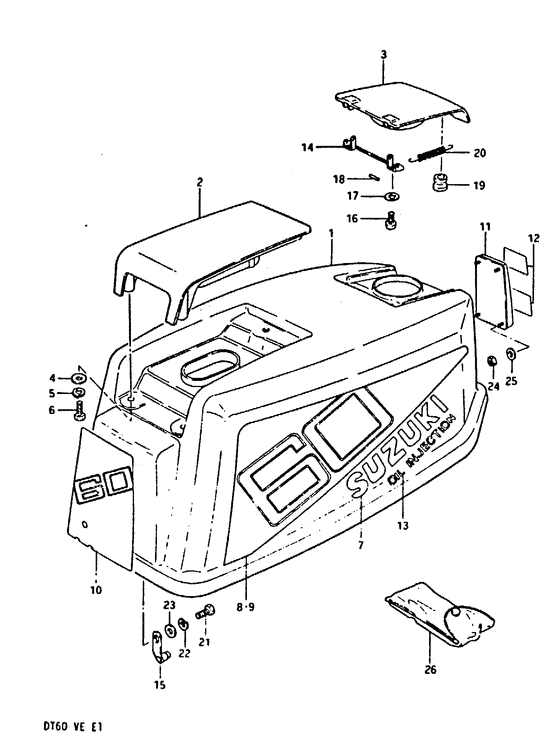

Engine cover Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61402-95830-02M
Cover set, engine
|
61402-95830-02M |
— | ||
| replacement | |||||
|
1
|
1
61631-95310-000
HOOK,LWR ENGINE COVER
|
61631-95310-000 |
— | ||
|
2
|
2
61431-95201-02M
Handle, tilt up
|
61431-95201-02M |
— | ||
| replacement | |||||
|
2
|
2
61431-95202-0ED
HANDLE,TILT UP
|
61431-95202-0ED |
— | ||
|
3
|
3
61481-95300-02M
Lid, oil tank filler
|
61481-95300-02M |
— | ||
|
4
|
4
09160-06036-000 WASHER(6.5X18X1.5)Washer, 6.5x18x1.5 Washer (6.5*18*1.5); |
09160-06036-000 |
from US $1.60 |
||
|
5
|
5
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
6
|
6
09100-06019-000
Bolt
|
09100-06019-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
7
|
7
61441-95360-000
Emblem, suzuki
|
61441-95360-000 |
— | ||
| replacement | |||||
|
7
|
7
68181-17D00-019 EMBLEM,COWLING UNDER,LEmblem, side |
68181-17D00-019 |
from US $19.14 |
||
|
8
|
8
61443-95361-000
Mark
Decal, side, rh; |
61443-95361-000 |
— | ||
|
9
|
9
61453-95361-000
Mark
Decal, side, lh; |
61453-95361-000 |
— | ||
|
10
|
10
61435-95361-000
Mark
|
61435-95361-000 |
— | ||
|
11
|
11
61420-95510-000
Emblem, front
|
61420-95510-000 |
— | ||
| replacements | |||||
|
11
|
11
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
11
|
11
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
11
|
11
03242-05109-000
Screw
|
03242-05109-000 |
— | ||
|
12
|
12
61422-95561-000
Mark,fr emblem
Mark, front upper; |
61422-95561-000 |
— | ||
|
13
|
13
61442-94560-000
Mark, oil injection
|
61442-94560-000 |
— | ||
| replacement | |||||
|
13
|
13
61442-94600-019
MARK,OIL INJECTION
|
61442-94600-019 |
— | ||
|
14
|
14
61482-95301-000
Hinge, oil tank lid
|
61482-95301-000 |
— | ||
|
15
|
15
61610-96300-000
Fastener
|
61610-96300-000 |
— | ||
| replacement | |||||
|
15
|
15
61610-96302-000
FASTENER
|
61610-96302-000 |
— | ||
|
16
|
16
09125-06033-000
Screw
|
09125-06033-000 |
— | ||
| replacement | |||||
|
16
|
16
09125-06069-000 SCREW(6X12) |
09125-06069-000 |
from US $3.16 |
||
|
17
|
17
09160-06055-000 WASHER(7X12X1)Washer (7x12x1.0) Washer (7*12*1); |
09160-06055-000 |
from US $1.22 |
||
|
18
|
18
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring |
09205-03028-000 |
US $12.50 |
||
|
19
|
19
09329-05007-000
Cushion filter
|
09329-05007-000 |
— | ||
|
20
|
20
09443-04003-000
Spring
|
09443-04003-000 |
— | ||
|
21
|
21
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
22
|
22
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
23
|
23
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
24
|
24
09140-05001-000
Nut
|
09140-05001-000 |
— | ||
| replacement | |||||
|
24
|
24
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
25
|
25
09160-05024-000 WASHER(5.5X16X1.5)Washer (5.5*16*1.5); |
09160-05024-000 |
from US $2.45 |
||
|
26
|
26
09800-81800-000
Tool
|
09800-81800-000 |
— | ||
| replacements | |||||
|
26
|
26
09800-01001-000
TOOL ASSY
|
09800-01001-000 |
— | ||
|
26
|
26
09800-01016-000 Tool Assy |
09800-01016-000 |
US $53.97 |
||
