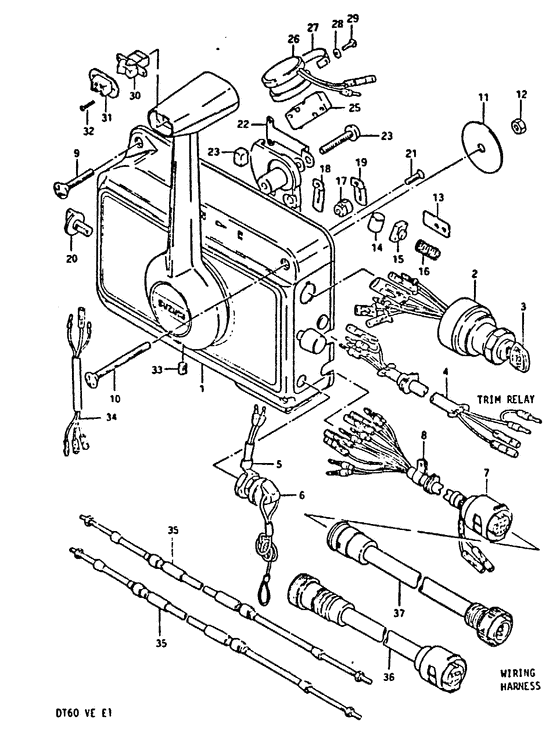

Remote control (Optional;) Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-94521-000
Box assy, remo-con
Nhk.morse |
67200-94521-000 |
— | ||
| replacement | |||||
|
1
|
1
67200-87D61-000
REMOTE CONTROL ASSY
Nhk.morse |
67200-87D61-000 |
— | ||
|
2
|
2
37120-94301-000
Switch assy, ignition
|
37120-94301-000 |
— | ||
|
3
|
3
37141-93300-000
KEY,SPARE(8511)
Key, spare 8511; |
37141-93300-000 |
— | ||
|
3
|
3
37141-93310-000
KEY,SPARE(8512)
Key, spare 8512; |
37141-93310-000 |
— | ||
|
3
|
3
37141-93320-000
KEY,SPARE(8513)
Key, spare 8513; |
37141-93320-000 |
— | ||
|
3
|
3
37141-93330-000
KEY,SPARE(8611)
Key, spare 8611; |
37141-93330-000 |
— | ||
|
3
|
3
37141-93340-000
KEY,SPARE(8612)
Key, spare 8612; |
37141-93340-000 |
— | ||
|
3
|
3
37141-93350-000
KEY,SPARE(8613)
Key, spare 8613; |
37141-93350-000 |
— | ||
|
4
|
4
36640-95500-000
Wire harness
L:5000 |
36640-95500-000 |
— | ||
|
5
|
5
37820-96301-000
Switch, emargency
|
37820-96301-000 |
— | ||
| replacements | |||||
|
5
|
5
37820-92E04-000
SWITCH ASSY,EMERGENCY
|
37820-92E04-000 |
— | ||
|
5
|
5
37820-92E05-000 Switch Assy,emergency |
37820-92E05-000 |
from US $48 |
||
|
6
|
6
37823-95251-000
CAP,EMERGENCY SWITCH
Cap & rope; |
37823-95251-000 |
— | ||
|
7
|
7
36620-94510-000
Wiring harness, extension
L:5000 |
36620-94510-000 |
— | ||
| replacement | |||||
|
7
|
7
36620-95D00-000 HARNESS,WIRING EXTWiring harness 9 wires L:5000 |
36620-95D00-000 |
US $181.06 |
||
|
8
|
8
36632-95501-000
Clamp, ptt pipe
|
36632-95501-000 |
— | ||
| replacements | |||||
|
8
|
8
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
8
|
8
09407-20404-000
Clamp
|
09407-20404-000 |
— | ||
|
8
|
8
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
9
|
9
02132-06408-000
Screw
|
02132-06408-000 |
— | ||
| replacement | |||||
|
9
|
9
02122-0640B-000 SCREW |
02122-0640B-000 |
from US $0.76 |
||
|
10
|
10
02132-06758-000 SCREW |
02132-06758-000 |
US $9.90 |
||
|
11
|
11
09160-06047-000 WASHER(6.5X20X2)Washer, remocon cable stopper Washer (6.5*22*2); |
09160-06047-000 |
from US $0.91 |
||
|
12
|
12
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
13
|
13
67271-95500-000
Plate
|
67271-95500-000 |
— | ||
|
14
|
14
67253-95500-000
Roller
|
67253-95500-000 |
— | ||
|
15
|
15
67254-95500-000
Bushing
|
67254-95500-000 |
— | ||
|
16
|
16
67255-95500-000
Spring
|
67255-95500-000 |
— | ||
|
17
|
17
67275-95500-000
Trunion
Trunnion; |
67275-95500-000 |
— | ||
|
18
|
18
67272-95500-000
Clutch retainer
|
67272-95500-000 |
— | ||
|
19
|
19
67274-95500-000
Throttle retain
Retainer, throttle; |
67274-95500-000 |
— | ||
|
20
|
20
67232-95500-000
Knob, brake
|
67232-95500-000 |
— | ||
|
21
|
21
02122-04128-000
Screw
|
02122-04128-000 |
— | ||
| replacements | |||||
|
21
|
21
02122-0412B-000 SCREW |
02122-0412B-000 |
US $12.90 |
||
|
21
|
21
02122-0412A-000 SCREWScrew, cap |
02122-0412A-000 |
from US $3.04 |
||
|
22
|
22
67233-95500-000
Retainer
|
67233-95500-000 |
— | ||
|
23
|
23
67234-95500-000
Friction shoe
|
67234-95500-000 |
— | ||
|
24
|
24
02112-06358-000
Screw
|
02112-06358-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-06357-000 SCREW |
02112-06357-000 |
from US $0.80 |
||
|
25
|
25
37721-95551-000
Switch, neutral
|
37721-95551-000 |
— | ||
| replacement | |||||
|
25
|
25
37721-94601-000 SWITCH ASSY,NEUTRAL |
37721-94601-000 |
US $27.97 |
||
|
26
|
26
38500-95503-000
Buzzer, warning
|
38500-95503-000 |
— | ||
| replacement | |||||
|
26
|
26
38500-95202-000
BUZZER ASSY,WARNING
|
38500-95202-000 |
— | ||
|
27
|
27
38501-95500-000 BAND,WARNING BUZZERBand, warning buzzer |
38501-95500-000 |
US $5.19 |
||
|
28
|
28
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
29
|
29
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
29
|
29
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
30
|
30
37860-95501-000
Sw assy remo-co
|
37860-95501-000 |
— | ||
|
31
|
31
37864-95500-000
Cap, switch
|
37864-95500-000 |
— | ||
| replacement | |||||
|
31
|
31
37869-95590-000 CAP,TRIM SWITCHCap, trim switch |
37869-95590-000 |
US $8.83 |
||
|
32
|
32
09139-02003-000 SCREW(2X6) |
09139-02003-000 |
from US $1.28 |
||
|
33
|
33
67249-95500-000
Screw
|
67249-95500-000 |
— | ||
|
34
|
34
37863-95501-000
Cord, trim
|
37863-95501-000 |
— | ||
|
35
|
35
67320-95750-000
Cable, control
|
67320-95750-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M) |
67320-93J10-000 |
from US $56.81 |
||
|
35
|
35
67320-95740-000
Cable, control
|
67320-95740-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M) |
67320-93J10-000 |
from US $56.81 |
||
|
35
|
35
67320-95730-000
Cable, control
|
67320-95730-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M) |
67320-93J20-000 |
from US $52.99 |
||
|
35
|
35
67320-95720-000
Cable, control
|
67320-95720-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M) |
67320-93J30-000 |
from US $66.67 |
||
|
35
|
35
67320-95710-000
Cable, control
|
67320-95710-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M) |
67320-93J40-000 |
from US $61.46 |
||
|
35
|
35
67320-95200-000
Cable, control
|
67320-95200-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M) |
67320-93J50-000 |
from US $65.87 |
||
|
35
|
35
67320-95760-000
Cable assy, clutch (l:6000)
|
67320-95760-000 |
— | ||
| replacement | |||||
|
35
|
35
67320-93J60-000 CABLE ASSY,REMOCON(20F:6.1M) |
67320-93J60-000 |
from US $70.29 |
||
|
36
|
36
36641-94701-000
ADAPTER(N.O)
Adapter, o.n.; |
36641-94701-000 |
— | ||
|
37
|
37
36642-94702-000
Adaptor (n.o)
|
36642-94702-000 |
— | ||
| replacement | |||||
|
37
|
37
36642-94703-000
ADAPTER(N.O)
|
36642-94703-000 |
— | ||
