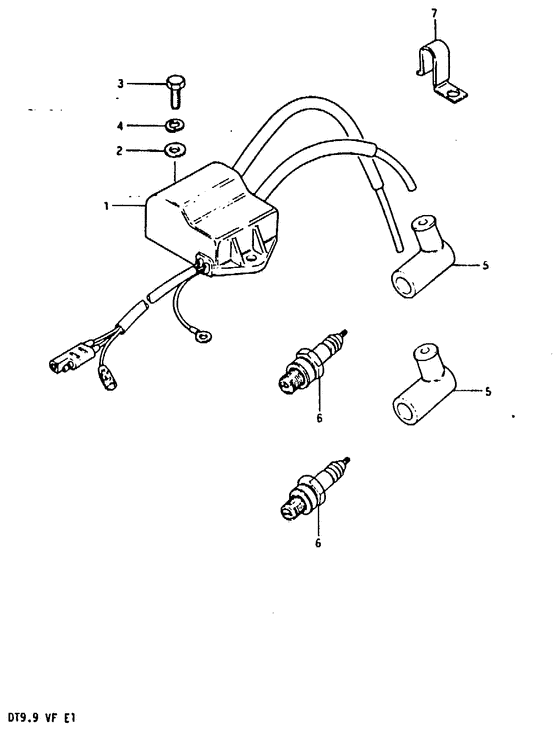

Ignition Diagram Suzuki DT9.9 S/L/UL
- Year
- 1984
- Model
- DT9.9
- Year
- 1984
- Engine
- 00993-406191~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-93900-000
Cdi unit
|
32900-93900-000 |
— | ||
| replacement | |||||
|
1
|
1
32900-93903-000 CDI UNIT |
32900-93903-000 |
US $379.04 |
||
|
2
|
2
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
2
|
2
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
3
|
3
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
4
|
4
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
5
|
5
33510-95510-000
Cap, spark plug
|
33510-95510-000 |
— | ||
| replacement | |||||
|
5
|
5
33510-95520-000 Cap,spark plugCap, spark plug |
33510-95520-000 |
from US $12.48 |
||
|
6
|
6
09482-00277-000
PLUG,SPARK
Spark plug, br7hs; |
09482-00277-000 |
— | ||
|
7
|
7
09403-11307-000 CLAMP |
09403-11307-000 |
US $11.80 |
||
