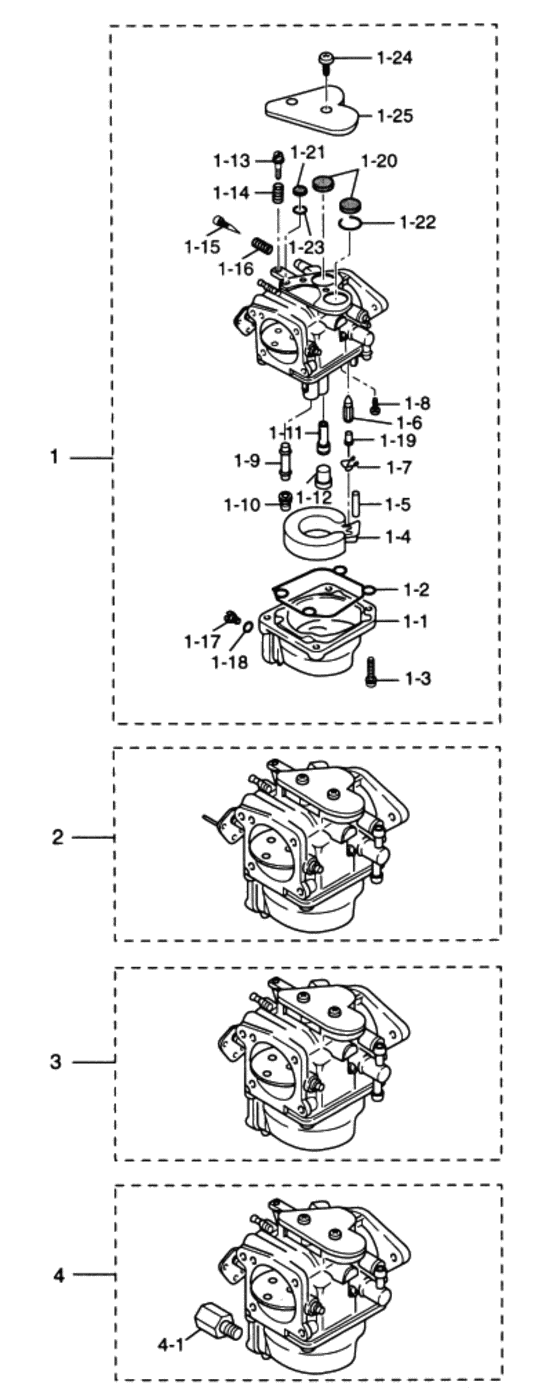

Carburetor Diagram Tohatsu M115A2
- Year
- 2003
- Model
- M115A2
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E0-03200-1 Carburetor Assy120A2 #21577~ |
3E0-03200-1 |
from US $189.94 |
||
|
1-1
|
1-1
353-03221-0 Float ChamberX 4 UPPER SECOND THIRD LOWER |
353-03221-0 |
US $27.79 |
||
|
1-10
|
1-10
3C7-03251-0 Main Jet (#162)X 4 |
3C7-03251-0 |
from US $6.62 |
||
|
1-11
|
1-11
3C7-03255-0 Slow Jet (#75)X 4 |
3C7-03255-0 |
from US $11.38 |
||
|
1-12
|
1-12
346-03256-0 Rubber CapX 4 |
346-03256-0 |
from US $2.48 |
||
|
1-13
|
1-13
346-03265-0 Stop ScrewCARBURETOR UPPER |
346-03265-0 |
from US $4.99 |
||
|
1-14
|
1-14
346-03267-0 SpringCARBURETOR UPPER |
346-03267-0 |
from US $1.15 |
||
|
1-15
|
1-15
346-03266-0 Pilot ScrewX 4 |
346-03266-0 |
from US $8.55 |
||
|
1-16
|
1-16
353-03268-0 SpringX 4 |
353-03268-0 |
from US $0.86 |
||
|
1-17
|
1-17
345-03292-0 Drain ScrewX 3 UPPER SECOND THIRD |
345-03292-0 |
from US $4.18 |
||
|
1-18
|
1-18
336-03293-0 O-RingX 4 |
336-03293-0 |
from US $1.11 |
||
|
1-19
|
1-19
334-03242-0 Valve PinX 4 |
334-03242-0 |
from US $1.28 |
||
|
1-2
|
1-2
346-03222-0 Float Chamber O-RingX 4 |
346-03222-0 |
from US $7.10 |
||
|
1-20
|
1-20
3C7-03182-0 Carburetor Cover GasketX 4 |
3C7-03182-0 |
from US $2.45 |
||
|
1-21
|
1-21
3C7-03183-0 Carburetor Cover GasketX 4 |
3C7-03183-0 |
from US $1.58 |
||
|
1-22
|
1-22
3C7-03184-0 Cover Gasket PlateX 4 |
3C7-03184-0 |
from US $1.70 |
||
|
1-23
|
1-23
3C7-03185-0 Cover Gasket PlateX 4 |
3C7-03185-0 |
from US $2.59 |
||
|
1-24
|
1-24
3C7-03186-0 ScrewX 4 |
3C7-03186-0 |
from US $2.61 |
||
|
1-3
|
1-3
922503-6414 ScrewX 4 |
922503-6414 |
from US $1.52 |
||
|
1-4
|
1-4
346-03231-0 FloatX 4 |
346-03231-0 |
from US $13.38 |
||
|
1-5
|
1-5
346-03232-0 Float Arm PinX 4 |
346-03232-0 |
from US $2.40 |
||
|
1-6
|
1-6
3B7-03240-0 Float ValveX 4 |
3B7-03240-0 |
from US $8.04 |
||
|
1-7
|
1-7
344-03244-0 ClipX 4 |
344-03244-0 |
from US $1.84 |
||
|
1-8
|
1-8
3F3-03234-0 ScrewX 4 |
3F3-03234-0 |
from US $1.15 |
||
|
1-9
|
1-9
3C7-03252-0 Main NozzleX 4 |
3C7-03252-0 |
from US $12.96 |
||
|
2
|
2
3C7-03204-1 Carburetor Assy (Second)140A2 # 11885~ / 120A2 # 21577~ |
3C7-03204-1 |
from US $189.94 |
||
|
3
|
3
3C7-03205-1 Carburetor Assy (Third) |
3C7-03205-1 |
from US $189.94 |
||
|
4
|
4
3C7-03210-1 Carburetor Assy (Fourth) |
3C7-03210-1 |
from US $189.94 |
||
|
4-1
|
4-1
3C7-03292-0 Drain ScrewCARBURETOR LOWER |
3C7-03292-0 |
from US $4.90 |
