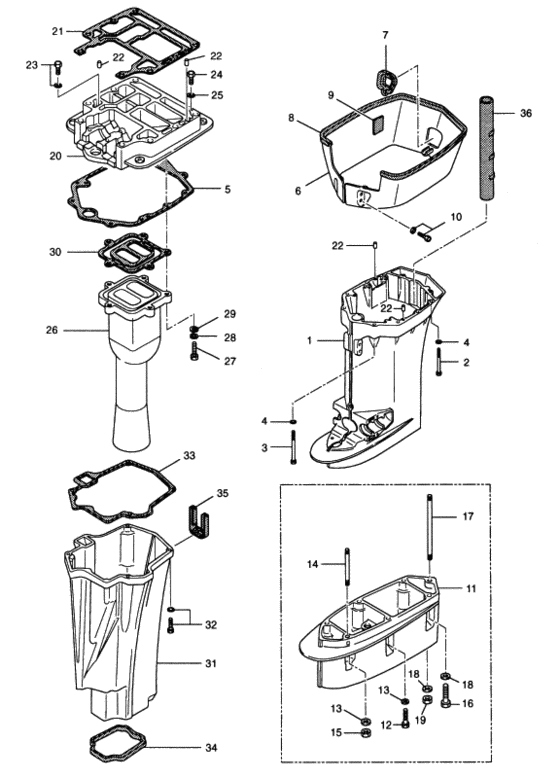

Drive shaft housing Diagram Tohatsu M115A2
- Year
- 2003
- Model
- M115A2
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C7S61030-0 Drive shaft housing l |
3C7S61030-0 |
from US $575.29 |
||
|
2
|
2
3C7-61017-1 Bolt 10-107 |
3C7-61017-1 |
from US $6.91 |
||
| replacement | |||||
|
2
|
2
3C7-61017-2 Bolt |
3C7-61017-2 |
from US $5.90 |
||
|
3
|
3
3C7-61018-1 Bolt 10-120 |
3C7-61018-1 |
from US $7.06 |
||
| replacement | |||||
|
3
|
3
3C7-61018-2 Bolt |
3C7-61018-2 |
from US $6.05 |
||
|
4
|
4
940213-1000 Washer |
940213-1000 |
from US $0.55 |
||
| replacement | |||||
|
4
|
4
9402E3-1000 Washer |
9402E3-1000 |
from US $1.01 |
||
|
5
|
5
3C7-61012-0 Gasket Drive Shaft Housing |
3C7-61012-0 |
from US $10.22 |
||
| replacement | |||||
|
5
|
5
3C7-61012-2 Drive Shaft Housing Gasket |
3C7-61012-2 |
from US $12.10 |
||
|
6
|
6
3C7S61210-1 Splash Pan |
3C7S61210-1 |
from US $99.72 |
||
|
7
|
7
3C7-61212-0 Grommet |
3C7-61212-0 |
from US $5.47 |
||
|
8
|
8
3E0-61213-0 Seal |
3E0-61213-0 |
from US $6.19 |
||
|
9
|
9
3C7-61216-0 Pad |
3C7-61216-0 |
from US $1.15 |
||
|
10
|
10
910113-5612 Bolt |
910113-5612 |
from US $1.10 |
||
| replacement | |||||
|
10
|
10
9101E3-5612 Bolt |
9101E3-5612 |
from US $1.52 |
||
|
11
|
11
3B7S61110-0 Extension Housing UlFOR TRANSOM UL |
3B7S61110-0 |
from US $269.66 |
||
|
12
|
12
916189-0835 BoltFOR TRANSOM UL |
916189-0835 |
from US $1.44 |
||
| replacement | |||||
|
12
|
12
3T1-60001-1 BoltFOR TRANSOM UL |
3T1-60001-1 |
from US $4.32 |
||
|
13
|
13
940113-0800 WasherFOR TRANSOM UL |
940113-0800 |
from US $0.55 |
||
| replacements | |||||
|
13
|
13
940103-0800 WasherFOR TRANSOM UL |
940103-0800 |
from US $0.99 |
||
|
13
|
13
9401E3-0800 WasherFOR TRANSOM UL |
9401E3-0800 |
from US $0.72 |
||
|
14
|
14
915313-0825 Stud BoltFOR TRANSOM UL |
915313-0825 |
from US $3.02 |
||
| replacement | |||||
|
14
|
14
9153E3-0825 StudFOR TRANSOM UL |
9153E3-0825 |
from US $3.31 |
||
|
15
|
15
930113-0800 NutFOR TRANSOM UL |
930113-0800 |
from US $0.55 |
||
| replacement | |||||
|
15
|
15
930103-0800 NutFOR TRANSOM UL |
930103-0800 |
from US $1.83 |
||
|
16
|
16
3B7-60001-2 Bolt 10-40FOR TRANSOM UL |
3B7-60001-2 |
from US $3.68 |
||
| replacement | |||||
|
16
|
16
3B7-60001-5 BoltFOR TRANSOM UL |
3B7-60001-5 |
from US $8.21 |
||
|
17
|
17
3B7-61112-0 Stud Bolt 10-165FOR TRANSOM UL |
3B7-61112-0 |
from US $14.54 |
||
|
18
|
18
940213-1000 WasherFOR TRANSOM UL |
940213-1000 |
from US $0.55 |
||
| replacement | |||||
|
18
|
18
9402E3-1000 WasherFOR TRANSOM UL |
9402E3-1000 |
from US $1.01 |
||
|
19
|
19
3B7-61114-0 NutFOR TRANSOM UL |
3B7-61114-0 |
from US $1.58 |
||
|
20
|
20
3C7S01301-0 Engine Base |
3C7S01301-0 |
from US $442.82 |
||
| replacement | |||||
|
20
|
20
3C7S01301-1 Engine Basement |
3C7S01301-1 |
US $442.82 |
||
|
21
|
21
3C7-01303-0 Gasket Engine Base |
3C7-01303-0 |
US $37.36 |
||
| replacement | |||||
|
21
|
21
3C7-01303-5 Engine Basement Gasket |
3C7-01303-5 |
from US $18.14 |
||
|
22
|
22
345-01111-0 Dowel Pin |
345-01111-0 |
from US $1.15 |
||
|
23
|
23
910113-5635
Bolt
|
910113-5635 |
— | ||
| replacement | |||||
|
23
|
23
9101E3-5635 Bolt |
9101E3-5635 |
from US $2.16 |
||
|
24
|
24
3C7-01312-0 Bolt |
3C7-01312-0 |
from US $2.45 |
||
|
25
|
25
940213-0800
Washer
|
940213-0800 |
— | ||
| replacements | |||||
|
25
|
25
940203-0800 Washer |
940203-0800 |
from US $0.70 |
||
|
25
|
25
9402E3-0800 Washer |
9402E3-0800 |
from US $1.35 |
||
|
26
|
26
3C7-02311-0 Exhaust Pipe |
3C7-02311-0 |
from US $120.96 |
||
|
27
|
27
910114-0835 Bolt |
910114-0835 |
from US $1.58 |
||
| replacement | |||||
|
27
|
27
916114-0835 Bolt |
916114-0835 |
from US $1.44 |
||
|
28
|
28
941303-0800 Spring Washer |
941303-0800 |
from US $0.56 |
||
|
29
|
29
940213-0800
Washer
|
940213-0800 |
— | ||
| replacements | |||||
|
29
|
29
940203-0800 Washer |
940203-0800 |
from US $0.70 |
||
|
29
|
29
9402E3-0800 Washer |
9402E3-0800 |
from US $1.35 |
||
|
30
|
30
3C7-02312-0 Gasket Exhaust Pipe |
3C7-02312-0 |
US $5.80 |
||
| replacement | |||||
|
30
|
30
3C7-02312-2 Exhaust Pipe Gasket |
3C7-02312-2 |
from US $5.76 |
||
|
31
|
31
3B7-61180-0 Exhaust Housing |
3B7-61180-0 |
from US $138.82 |
||
|
32
|
32
910113-5830 Bolt |
910113-5830 |
US $2.55 |
||
| replacements | |||||
|
32
|
32
910103-0830 Bolt |
910103-0830 |
from US $1.73 |
||
|
32
|
32
9101E3-5830 Bolt |
9101E3-5830 |
from US $2.13 |
||
|
32
|
32
910103-5830 Bolt |
910103-5830 |
from US $2.02 |
||
|
33
|
33
3B7-61181-0 Gasket Exhaust Housing |
3B7-61181-0 |
from US $7.78 |
||
| replacement | |||||
|
33
|
33
3B7-61181-2 Exhaust Housing Gasket |
3B7-61181-2 |
from US $15.12 |
||
|
34
|
34
3B7-61182-0 Grommet Exhaust Housing |
3B7-61182-0 |
from US $7.92 |
||
| replacement | |||||
|
34
|
34
3B7-61182-1 Grommet |
3B7-61182-1 |
from US $6.62 |
||
|
35
|
35
3B7-61207-0 Idle Exhaust Port Grommet |
3B7-61207-0 |
from US $3.46 |
||
|
36
|
36
3B7-61186-0 Reverse Gas Passage Pipe |
3B7-61186-0 |
from US $16.13 |
||
