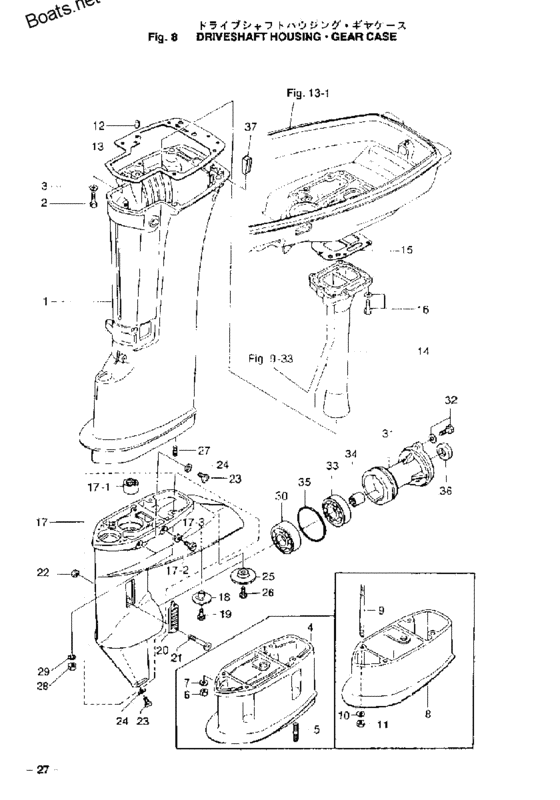

Drivershaft housing, gear case Diagram Tohatsu M15D2
- Year
- 2002
- Model
- M15D2
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
350S61020-3
Drive Shaft Housing S
|
350S61020-3 |
— | ||
|
1
|
1
350S61030-3 Drive Shaft Housing L |
350S61030-3 |
from US $396.14 |
||
|
3
|
3
334-66233-0 Washer |
334-66233-0 |
US $1.70 |
||
| replacement | |||||
|
3
|
3
3P0-66233-0 Washer |
3P0-66233-0 |
from US $0.72 |
||
|
4
|
4
350S61110-0 Extension Housing Ul |
350S61110-0 |
from US $249.26 |
||
|
6
|
6
930103-0800 Nut |
930103-0800 |
from US $1.83 |
||
|
8
|
8
350S61120-0 Extension Housing Ll |
350S61120-0 |
from US $193.20 |
||
|
9
|
9
915303-8100 Stud Bolt |
915303-8100 |
from US $6.34 |
||
| replacement | |||||
|
9
|
9
915313-8100 Stud Bolt |
915313-8100 |
US $6.34 |
||
|
12
|
12
345-01111-0 Dowel Pin |
345-01111-0 |
from US $1.15 |
||
|
13
|
13
350-61012-1 Gasket Drive Shaft Housing |
350-61012-1 |
from US $34.35 |
||
| replacement | |||||
|
13
|
13
350-61012-2 Drive Shaft Housing Gasket |
350-61012-2 |
from US $30.67 |
||
|
14
|
14
362-02311-0 Exhaust Pipe |
362-02311-0 |
from US $50.69 |
||
|
15
|
15
362-02312-0 Gasket Exhaust Pipe |
362-02312-0 |
from US $1.87 |
||
| replacement | |||||
|
15
|
15
362-02312-2 Exhaust Pipe Gasket |
362-02312-2 |
from US $2.12 |
||
|
17
|
17
398S60000-0 New Genuine Part |
398S60000-0 |
from US $386.40 |
||
| replacement | |||||
|
17
|
17
3V9S60000-0 Gear Case Ass'y |
3V9S60000-0 |
from US $386.40 |
||
|
17-1
|
17-1
350-60211-0 Roller Bearing |
350-60211-0 |
from US $14.40 |
||
|
17-2
|
17-2
332-60005-1 Oil Plug |
332-60005-1 |
US $5.73 |
||
| replacement | |||||
|
17-2
|
17-2
332-60005-2 Plug |
332-60005-2 |
US $7.12 |
||
|
17-3
|
17-3
332-60006-0
Gasket
|
332-60006-0 |
— | ||
| replacement | |||||
|
17-3
|
17-3
332-60006-1 Gasket |
332-60006-1 |
from US $0.99 |
||
|
18
|
18
369-60206-0 Water Strainer |
369-60206-0 |
from US $3.31 |
||
|
19
|
19
921803-0620 Screw |
921803-0620 |
from US $0.86 |
||
|
20
|
20
362-60206-0 Water Strainer |
362-60206-0 |
US $4.72 |
||
| replacement | |||||
|
20
|
20
362-60206-1 Water Strainer |
362-60206-1 |
from US $3.02 |
||
|
21
|
21
921503-0430 Screw |
921503-0430 |
from US $0.86 |
||
|
25
|
25
3M2-60218-0 Anode |
3M2-60218-0 |
US $8.70 |
||
| replacement | |||||
|
25
|
25
3V9-60218-0 Anode |
3V9-60218-0 |
from US $8.64 |
||
|
26
|
26
910103-0616 Bolt |
910103-0616 |
from US $1.01 |
||
|
30
|
30
3K8-60215-0 Bearing |
3K8-60215-0 |
from US $12.38 |
||
| replacement | |||||
|
30
|
30
9601-0-6205 Ball Bearing |
9601-0-6205 |
from US $12.96 |
||
|
31
|
31
362S60101-0
Housing Propeller Shaft
|
362S60101-0 |
— | ||
| replacement | |||||
|
31
|
31
3BKS60101-1
Propeller Shaft Housing
|
3BKS60101-1 |
— | ||
|
33
|
33
9601-0-6205 Ball Bearing |
9601-0-6205 |
from US $12.96 |
||
|
34
|
34
362-60211-0 Roller Bearing |
362-60211-0 |
from US $16.42 |
||
|
35
|
35
121-32071-0 O-Ring |
121-32071-0 |
from US $4.69 |
||
| replacement | |||||
|
35
|
35
3C7-01403-0 O-Ring |
3C7-01403-0 |
from US $8.44 |
||
|
36
|
36
346-65013-0 Oil Seal |
346-65013-0 |
from US $4.90 |
||
|
37
|
37
398-61207-0 Idle Exhaust Port Grommet |
398-61207-0 |
from US $1.30 |
||
