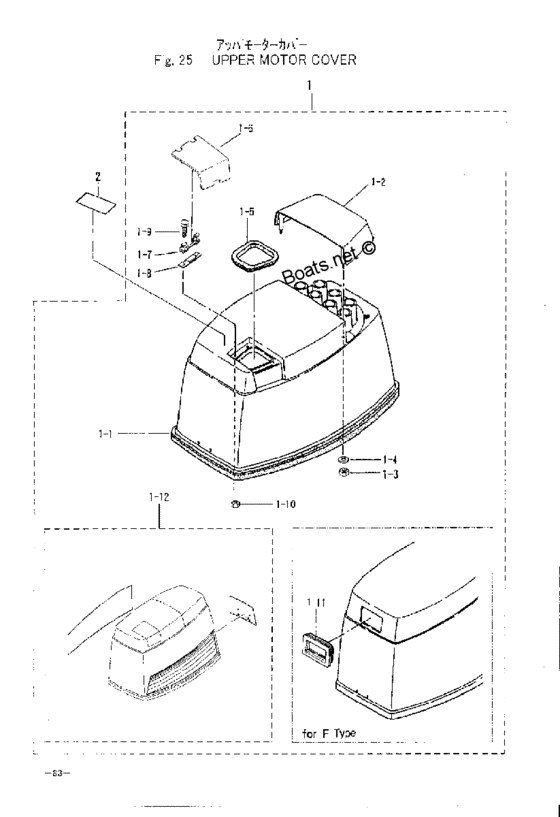

Upper motor cover Diagram Tohatsu M40D2
- Year
- 2005
- Model
- M40D2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E3S67510-3 Top Cowl P Type 40D2/50D2FOR P TYPE UNIQUE- 3E8N67500-1 |
3E3S67510-3 |
from US $870.77 |
||
|
1
|
1
3E3S67500-3 Top Cowl F Type 40D2/50D2FOR F TYPE UNIQUE- 3E8N67500-1 |
3E3S67500-3 |
US $826.22 |
||
|
1-1
|
1-1
3C8-67501-0 Seal Rubber Motor Cover Upper |
3C8-67501-0 |
from US $22.90 |
||
| replacements | |||||
|
1-1
|
1-1
3F3-67501-0
Top Cowl Seal
|
3F3-67501-0 |
— | ||
| replacement | |||||
|
1-1
|
1-1
3PN-67501-0 Top Cowl Seal |
3PN-67501-0 |
from US $35.71 |
||
|
1-1
|
1-1
3C8-67501-1 Top Cowl Seal |
3C8-67501-1 |
from US $28.22 |
||
|
1-1
|
1-1
3F3-67501-0
Top Cowl Seal
|
3F3-67501-0 |
— | ||
| replacement | |||||
|
1-1
|
1-1
3PN-67501-0 Top Cowl Seal |
3PN-67501-0 |
from US $35.71 |
||
|
1-11
|
1-11
344-67503-0
Starter Seal
for "F" type |
344-67503-0 |
— | ||
| replacement | |||||
|
1-11
|
1-11
3KM-67503-0 Starter Sealfor "F" type |
3KM-67503-0 |
from US $14.40 |
||
|
1-2
|
1-2
3E3S67521-0 Tilt HandleFOR P TYPE |
3E3S67521-0 |
from US $78.37 |
||
| replacement | |||||
|
1-2
|
1-2
3E3S67521-1 Tilt HandleFOR P TYPE |
3E3S67521-1 |
US $78.37 |
||
|
1-2
|
1-2
3C8S67521-0
Tilt Handle
FOR F TYPE |
3C8S67521-0 |
— | ||
|
1-3
|
1-3
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
1-4
|
1-4
3C8-66308-0 Washer |
3C8-66308-0 |
from US $1.15 |
||
|
1-5
|
1-5
3E3-67213-0 Sealfor "P" type |
3E3-67213-0 |
from US $3.31 |
||
|
1-6
|
1-6
3E3S67210-0 Filler Lidfor "P" type |
3E3S67210-0 |
US $33.79 |
||
| replacements | |||||
|
1-6
|
1-6
3E3Q67210-1 Filler Lidfor "P" type |
3E3Q67210-1 |
from US $28.22 |
||
|
1-6
|
1-6
3E3S67210-1
Filler Lid
for "P" type |
3E3S67210-1 |
— | ||
|
1-7
|
1-7
3B7-67211-0 Filler Lid Hingefor "P" type |
3B7-67211-0 |
US $2.59 |
||
|
1-8
|
1-8
3C8-67212-0 Spring Filler Lidfor "P" type |
3C8-67212-0 |
US $11.66 |
||
| replacement | |||||
|
1-8
|
1-8
3C8-67212-1 Springfor "P" type |
3C8-67212-1 |
US $8.64 |
||
|
1-9
|
1-9
910103-0614 Boltfor "P" type |
910103-0614 |
from US $1.01 |
||
|
2
|
2
3C7-72180-0 Caution Label (Ce-A) |
3C7-72180-0 |
US $2.30 |
||
| replacement | |||||
|
2
|
2
3C7-72180-3 Caution Decal (A) |
3C7-72180-3 |
from US $1.73 |
||
