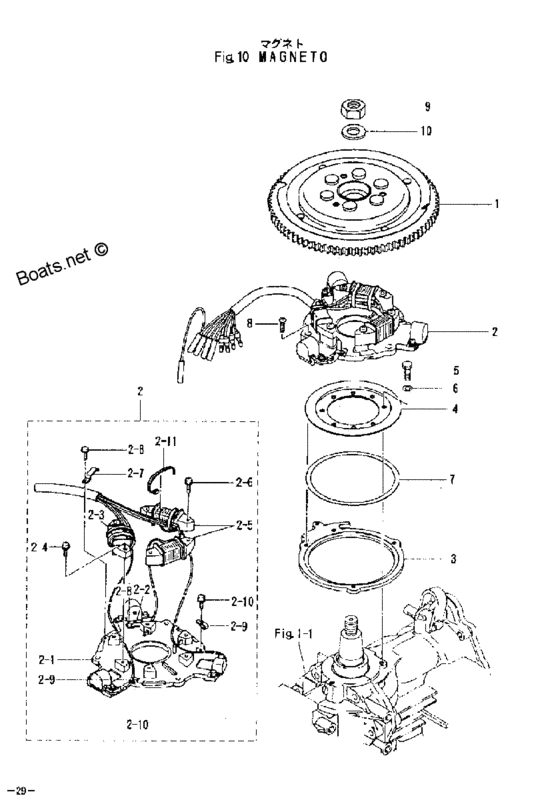

Magneto Diagram Tohatsu M40D2
- Year
- 2002
- Model
- M40D2
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C8-06101-1 Flywheel W/ring Gear40D2#37998-50D2#54652- |
3C8-06101-1 |
from US $679.39 |
||
|
2
|
2
3C8-06103-2
Coil Plate Ass'y
40D2#42738-50D2#58631- |
3C8-06103-2 |
— | ||
| replacement | |||||
|
2
|
2
3C8-06103-3 Coil Plate Assy W/alternator40D2#42738-50D2#58631- |
3C8-06103-3 |
US $565.92 |
||
|
2-1
|
2-1
3C8-06130-2 Pulsar Coil & Plate Assy |
3C8-06130-2 |
from US $397.58 |
||
|
2-11
|
2-11
3B7-06133-0 Band |
3B7-06133-0 |
from US $2.02 |
||
|
2-2
|
2-2
3C8-06120-1 Exciter Coil |
3C8-06120-1 |
from US $71.86 |
||
|
2-4
|
2-4
921521-6630 Screw |
921521-6630 |
from US $0.72 |
||
|
2-5
|
2-5
3C8-06123-1 Alternator Assy |
3C8-06123-1 |
from US $112.75 |
||
|
2-7
|
2-7
3B7-06135-0 Holder |
3B7-06135-0 |
from US $1.58 |
||
|
2-8
|
2-8
922521-0406 Screw |
922521-0406 |
from US $0.43 |
||
|
2-9
|
2-9
3B7-06132-0 Clamp |
3B7-06132-0 |
from US $2.88 |
||
|
3
|
3
3B7-63723-0 Setting Ring |
3B7-63723-0 |
from US $17.28 |
||
|
4
|
4
346-63722-2 Guide Plate |
346-63722-2 |
from US $15.55 |
||
|
5
|
5
910121-0616 Bolt |
910121-0616 |
from US $0.72 |
||
|
6
|
6
941322-0600 Spring Washer |
941322-0600 |
from US $0.58 |
||
|
7
|
7
3C8-63745-0 Shim |
3C8-63745-0 |
from US $2.67 |
||
|
7
|
7
3C8-63746-0 Shim |
3C8-63746-0 |
from US $2.67 |
||
|
7
|
7
3C8-63747-0 Shim |
3C8-63747-0 |
from US $2.67 |
||
|
8
|
8
921503-6510 Screw40D2#42738-50D2#58631- |
921503-6510 |
from US $0.72 |
||
|
9
|
9
353-00132-0 Nut |
353-00132-0 |
from US $3.89 |
||
|
10
|
10
353-00133-0 Washer |
353-00133-0 |
from US $2.30 |
||
