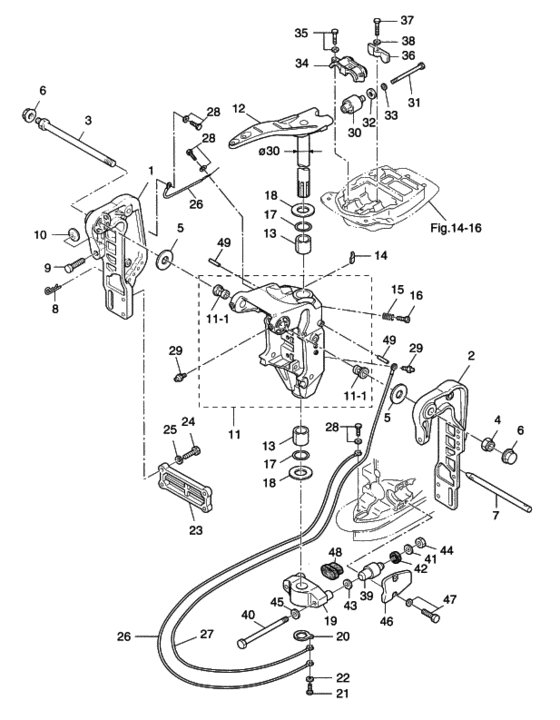

Bracket (2) (for m type) Diagram Tohatsu M70C
- Year
- 2003
- Model
- M70C
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
353S62113-3 Stern bracket leftPORT |
353S62113-3 |
from US $312.80 |
||
|
3
|
3
353-62191-0 Bracket Bolt Ass'y |
353-62191-0 |
from US $71.76 |
||
| replacement | |||||
|
3
|
3
3N4-62191-0 Swivel Bracket Shaft Assy |
3N4-62191-0 |
from US $63.65 |
||
|
4
|
4
346-62124-0
Bracket Nut (Nylon)
|
346-62124-0 |
— | ||
| replacement | |||||
|
4
|
4
346-62124-1 Nylon Nut |
346-62124-1 |
from US $15.26 |
||
|
5
|
5
353-62116-1 Washer |
353-62116-1 |
from US $1.30 |
||
|
6
|
6
346-62127-0 Cap Nut |
346-62127-0 |
from US $1.68 |
||
|
7
|
7
3A3-62121-1 Thrust Rod |
3A3-62121-1 |
from US $42.48 |
||
|
8
|
8
3B7-62129-1 Pin |
3B7-62129-1 |
from US $7.78 |
||
|
9
|
9
353-62103-0 Clamp Screw |
353-62103-0 |
from US $17.86 |
||
| replacement | |||||
|
9
|
9
3N4-77217-0 Clamp Screw Kit |
3N4-77217-0 |
US $27.50 |
||
|
10
|
10
332-62101-0 Pad Clamp Screw |
332-62101-0 |
US $4.71 |
||
|
11-1
|
11-1
3A3-62126-0 Bushing |
3A3-62126-0 |
from US $3.60 |
||
|
13
|
13
353-62417-0 Bushing |
353-62417-0 |
from US $4.94 |
||
|
14
|
14
345-62441-0 Friction Piece |
345-62441-0 |
from US $4.03 |
||
|
15
|
15
346-62421-1 Friction Spring |
346-62421-1 |
from US $1.58 |
||
|
16
|
16
910103-0830 BoltOR 910113-0830 |
910103-0830 |
from US $1.73 |
||
|
17
|
17
353-62415-0 O-Ring |
353-62415-0 |
from US $2.12 |
||
|
18
|
18
353-62423-0 Thrust Plate |
353-62423-0 |
US $4.45 |
||
| replacement | |||||
|
18
|
18
353-62423-1 Thrust Plate (Upper) |
353-62423-1 |
from US $4.18 |
||
|
19
|
19
3F3S61410-1 Mount Bracket |
3F3S61410-1 |
US $148.32 |
||
| replacement | |||||
|
19
|
19
3F3S61411-2 Mount Bracket |
3F3S61411-2 |
US $148.32 |
||
|
20
|
20
353-61412-0 Lock Plate |
353-61412-0 |
from US $4.90 |
||
|
21
|
21
910103-0614 Bolt |
910103-0614 |
from US $1.01 |
||
|
22
|
22
941303-0600 Spring Washer |
941303-0600 |
from US $1.01 |
||
|
23
|
23
353S62114-1 Plate Stern Bracket |
353S62114-1 |
from US $56.45 |
||
|
25
|
25
941303-1000 Spring Washer |
941303-1000 |
from US $0.72 |
||
|
26
|
26
3A3-62396-0 WireL=110 |
3A3-62396-0 |
from US $4.03 |
||
| replacement | |||||
|
26
|
26
3A3-62396-1 Ground wireL=110 |
3A3-62396-1 |
from US $7.75 |
||
|
28
|
28
910113-5612 Bolt |
910113-5612 |
from US $1.10 |
||
| replacement | |||||
|
28
|
28
9101E3-5612 Bolt |
9101E3-5612 |
from US $1.52 |
||
|
29
|
29
344-67177-0 Grease Nipple |
344-67177-0 |
US $2.89 |
||
| replacement | |||||
|
29
|
29
344-67177-1 Grease Fitting |
344-67177-1 |
from US $2.45 |
||
|
30
|
30
3B7-61301-0 Rubber Mount (Upper) |
3B7-61301-0 |
from US $50.69 |
||
|
31
|
31
3B7-61307-1 Bolt Upper Mount Rubber |
3B7-61307-1 |
from US $7.92 |
||
|
32
|
32
3C7-61338-0 Damper |
3C7-61338-0 |
from US $9.22 |
||
|
33
|
33
3B7-61335-0 Washer |
3B7-61335-0 |
from US $2.30 |
||
|
34
|
34
3B7S61341-1 Cap Mount Rubber Upper |
3B7S61341-1 |
from US $33.12 |
||
| replacement | |||||
|
34
|
34
3B7-61341-1 Mount Holding Plate (Upper) |
3B7-61341-1 |
from US $37.73 |
||
|
35
|
35
910113-5835 Bolt |
910113-5835 |
US $3.71 |
||
| replacement | |||||
|
35
|
35
9101E3-5835 Bolt |
9101E3-5835 |
from US $3.60 |
||
|
36
|
36
3B7-61339-0 Damper (Upper) |
3B7-61339-0 |
from US $4.75 |
||
|
37
|
37
910113-0625 Bolt |
910113-0625 |
from US $1.10 |
||
| replacements | |||||
|
37
|
37
910103-0625 Bolt |
910103-0625 |
from US $1.12 |
||
|
37
|
37
9101E3-0625 Bolt |
9101E3-0625 |
from US $1.15 |
||
|
38
|
38
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
39
|
39
353-61302-0 Mount Rubber Lower |
353-61302-0 |
from US $44.16 |
||
| replacement | |||||
|
39
|
39
353-61302-2 Rubber Mount (Lower) |
353-61302-2 |
from US $39.17 |
||
|
40
|
40
353-61321-3 Bolt |
353-61321-3 |
from US $17.38 |
||
|
41
|
41
353-61334-0 Washer |
353-61334-0 |
from US $3.64 |
||
|
42
|
42
3C7-61338-0 Damper |
3C7-61338-0 |
from US $9.22 |
||
|
43
|
43
353-61315-1 Washer |
353-61315-1 |
from US $1.73 |
||
|
44
|
44
3B7-61324-0 Nut |
3B7-61324-0 |
from US $3.02 |
||
|
45
|
45
940213-1200 Washer |
940213-1200 |
from US $0.55 |
||
| replacement | |||||
|
45
|
45
9402E3-1200 Washer |
9402E3-1200 |
from US $0.72 |
||
|
46
|
46
3B7S61342-0 Cap Lower Mount Rubber |
3B7S61342-0 |
from US $31.15 |
||
|
47
|
47
3N4-61343-0 Bolt |
3N4-61343-0 |
from US $1.78 |
||
|
48
|
48
353-61336-0 Damper (Lower) |
353-61336-0 |
from US $7.92 |
||
