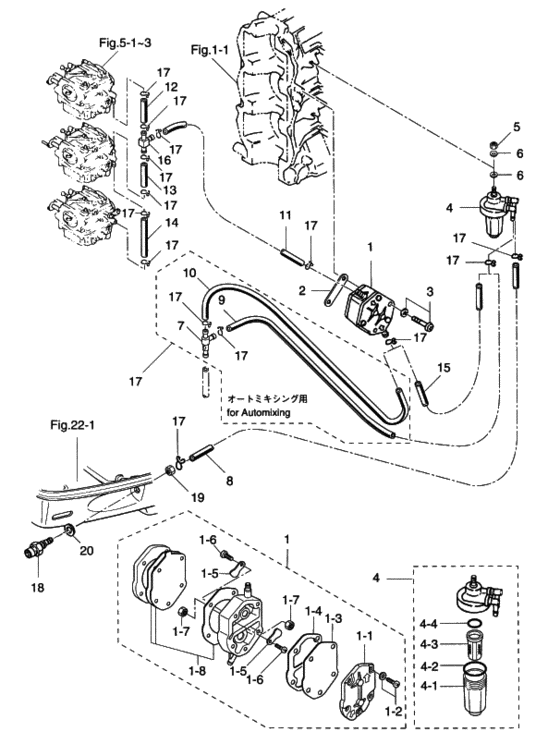

Fuel line Diagram Tohatsu M70C
- Year
- 2003
- Model
- M70C
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
356-04000-1 Fuel Pump Assy |
356-04000-1 |
from US $76.15 |
||
|
1-1
|
1-1
334-04004-0 Pump Cover |
334-04004-0 |
from US $12.10 |
||
|
1-2
|
1-2
922512-6528 Screw |
922512-6528 |
from US $0.78 |
||
|
1-3
|
1-3
334-04005-0 Pump Diaphragm |
334-04005-0 |
from US $25.86 |
||
|
1-4
|
1-4
334-04007-0 Diaphragm Gasket |
334-04007-0 |
from US $6.06 |
||
|
1-5
|
1-5
356-04044-0 Check Valve |
356-04044-0 |
from US $2.16 |
||
|
1-6
|
1-6
921722-0306 Screw |
921722-0306 |
from US $0.58 |
||
|
1-7
|
1-7
930222-0300 Nut |
930222-0300 |
from US $0.43 |
||
|
1-8
|
1-8
356-04030-0 Diaphragm Gasket Set |
356-04030-0 |
from US $16.04 |
||
|
2
|
2
346-04901-0
Gasket Fuel Pump
|
346-04901-0 |
— | ||
| replacement | |||||
|
2
|
2
346-04901-2 Gasket |
346-04901-2 |
from US $2.81 |
||
|
3
|
3
921503-6640 Screw |
921503-6640 |
from US $1.30 |
||
|
4
|
4
3B7-02230-0 Filter Ass'y |
3B7-02230-0 |
US $31.28 |
||
| replacement | |||||
|
4
|
4
3AD-02230-0 Fuel Filter Assy |
3AD-02230-0 |
from US $22.94 |
||
|
4-1
|
4-1
3B7-02237-0 Cup |
3B7-02237-0 |
from US $7.20 |
||
|
4-2
|
4-2
3B7-02235-0 O-Ring |
3B7-02235-0 |
from US $2.02 |
||
|
4-3
|
4-3
3B7-02234-0 Filter |
3B7-02234-0 |
from US $4.90 |
||
|
4-4
|
4-4
3B7-02236-0 O-Ring |
3B7-02236-0 |
from US $1.58 |
||
|
5
|
5
930106-0800 NutOR 930113-0800 |
930106-0800 |
from US $0.86 |
||
| replacement | |||||
|
5
|
5
930103-0800 NutOR 930113-0800 |
930103-0800 |
from US $1.83 |
||
|
6
|
6
940113-0800 WasherOR 940103-0800 |
940113-0800 |
from US $0.55 |
||
| replacements | |||||
|
6
|
6
940103-0800 WasherOR 940103-0800 |
940103-0800 |
from US $0.99 |
||
|
6
|
6
9401E3-0800 WasherOR 940103-0800 |
9401E3-0800 |
from US $0.72 |
||
|
7
|
7
3C8-09075-0 Check Valve CompleteFOR AUTO-MIXING |
3C8-09075-0 |
from US $20.45 |
||
|
8
|
8
98AB-5-0280 Rubber Hose |
98AB-5-0280 |
US $12.91 |
||
| replacement | |||||
|
8
|
8
98AB-501000 Rubber Hose (1 M) |
98AB-501000 |
from US $8.44 |
||
|
9
|
9
98AB-5-1000 Rubber HoseFOR AUTO-MIXING |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
9
|
9
98AB-501000 Rubber Hose (1 M)FOR AUTO-MIXING |
98AB-501000 |
from US $8.44 |
||
|
10
|
10
98AB-5-1000 Rubber HoseFOR AUTO-MIXING |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
10
|
10
98AB-501000 Rubber Hose (1 M)FOR AUTO-MIXING |
98AB-501000 |
from US $8.44 |
||
|
11
|
11
98AB-5-1000 Rubber Hose |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
11
|
11
98AB-501000 Rubber Hose (1 M) |
98AB-501000 |
from US $8.44 |
||
|
13
|
13
98AB-5-1000 Rubber Hose |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
13
|
13
98AB-501000 Rubber Hose (1 M) |
98AB-501000 |
from US $8.44 |
||
|
15
|
15
98AB-5-1000 Rubber HoseFOR PREMIXING |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
15
|
15
98AB-501000 Rubber Hose (1 M)FOR PREMIXING |
98AB-501000 |
from US $8.44 |
||
|
16
|
16
394-70013-0 Pipe Joint |
394-70013-0 |
from US $2.42 |
||
|
17
|
17
338-02215-0 ClipFOR AUTO-MIXING |
338-02215-0 |
from US $1.15 |
||
|
18
|
18
3B2-70260-1 Fuel Connector (Male) |
3B2-70260-1 |
from US $18.72 |
||
|
19
|
19
931103-1000 Nut |
931103-1000 |
from US $1.58 |
||
|
20
|
20
336-70112-0 Gasket |
336-70112-0 |
from US $1.01 |
||
