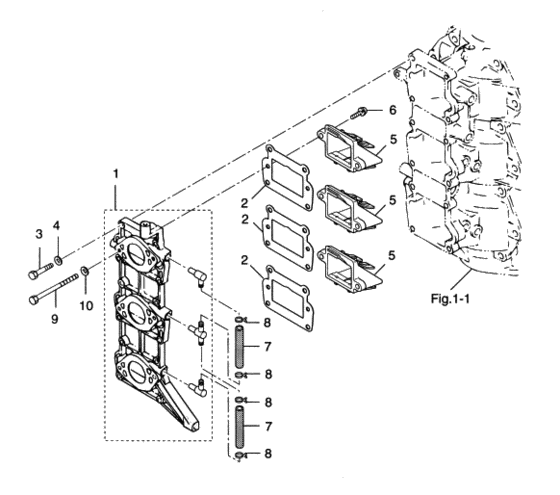

Inlet - reed valve Diagram Tohatsu M70C
- Year
- 2003
- Model
- M70C
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3F3B02020-1 Intake Manifold Assy70C/60C~ |
3F3B02020-1 |
from US $83.81 |
||
|
2
|
2
3F3-02104-0 Gasket Inlet Manifold |
3F3-02104-0 |
from US $1.47 |
||
| replacement | |||||
|
2
|
2
3F3-02104-2 Intake Manifold Gasket |
3F3-02104-2 |
from US $8.97 |
||
|
3
|
3
910114-0625 BoltOR 910114-5625 |
910114-0625 |
from US $0.99 |
||
|
4
|
4
940121-0600 WasherOR 910114-5625 |
940121-0600 |
from US $1.01 |
||
|
5
|
5
3F3-02100-0 Reed Valve Assy |
3F3-02100-0 |
from US $53.86 |
||
|
6
|
6
921521-6516 Screw |
921521-6516 |
from US $0.58 |
||
|
8
|
8
338-02215-0 Clip |
338-02215-0 |
from US $1.15 |
||
|
9
|
9
916181-0695 Bolt |
916181-0695 |
from US $1.30 |
||
| replacement | |||||
|
9
|
9
9161F1-0695 Bolt |
9161F1-0695 |
from US $2.16 |
||
|
10
|
10
940121-0600 Washer |
940121-0600 |
from US $1.01 |
||
